1987
>>
Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
Vacuum and Vapor Hose Diagrams

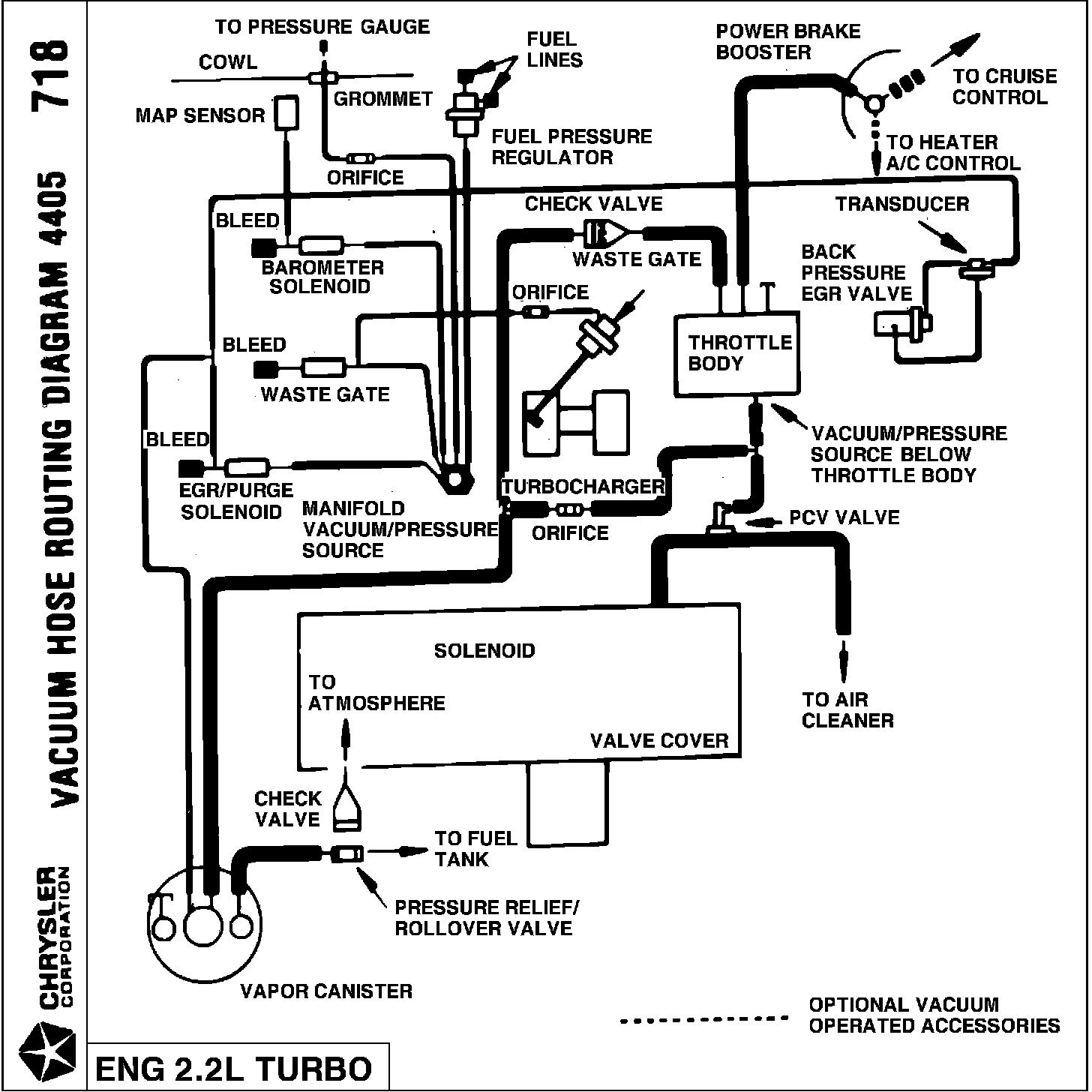

Fig. 4 Vacuum Hose Routing. 1987 Exc. Shelby Charger 4-135/2.2L, TBI & Turbo I:
