11B Inj.1/2 Wire Between Power/Logic Modules

1. With logic module red connector disconnected and ignition switch Off, disconnect [1][2]power module 12-way connector.

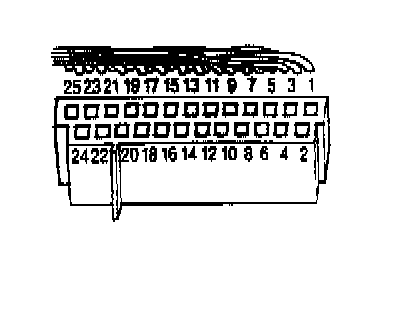

Red Logic Module Connector:

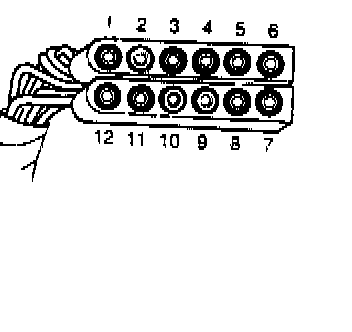

12-way Power Module Connector:

2. Connect an ohmmeter between cavity 3 of red connector and cavity 8 of 12-way connector.
3. If ohmmeter indicates continuity, proceed to Test 11 step C.
4. If ohmmeter does not indicate continuity, locate and repair open in circuit between connectors.
