2.2L Turbo Diagnostic Test Procedures

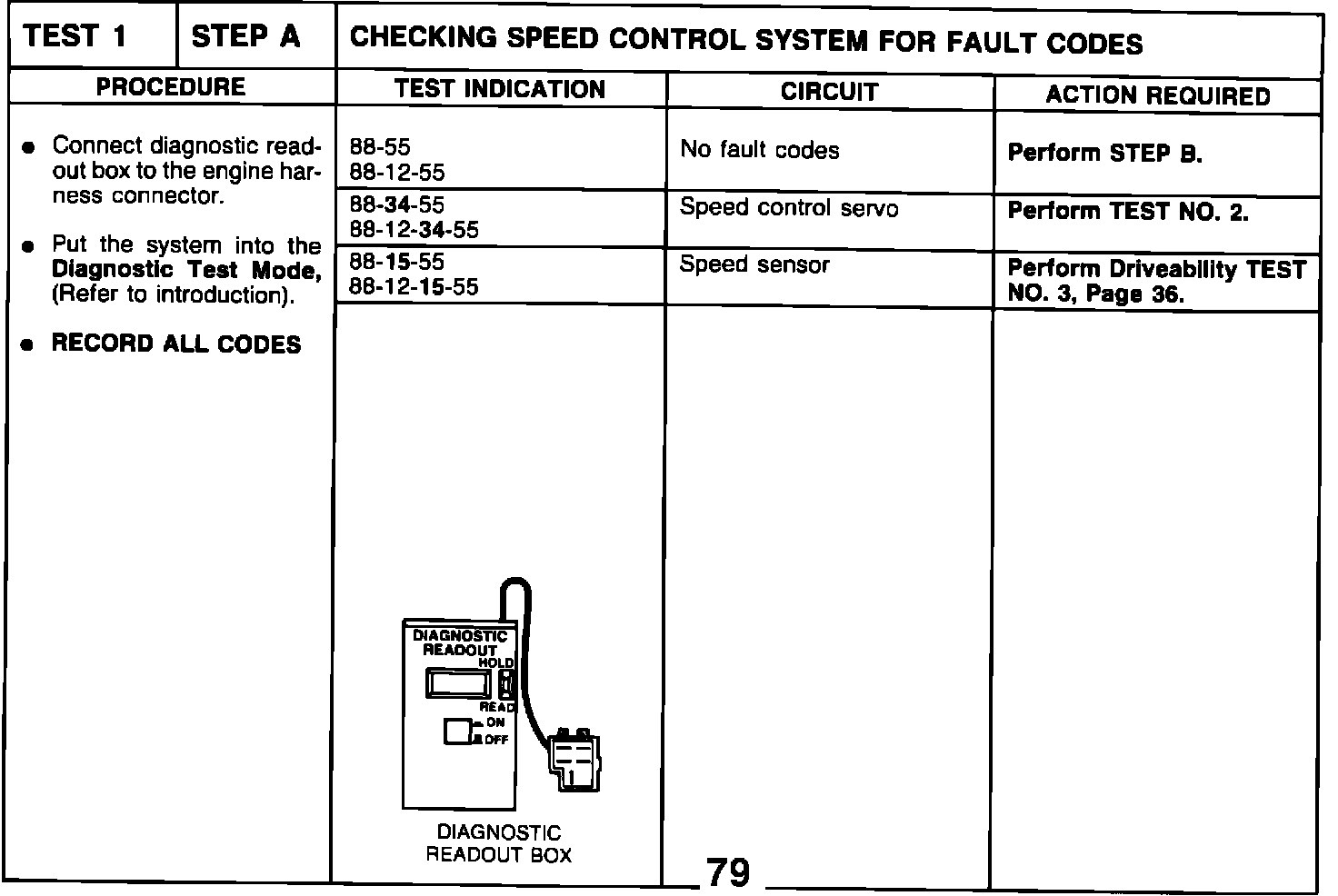

TEST 1 - STEP A - CHECKING SPEED CONTROL SYSTEM FOR FAULT CODES

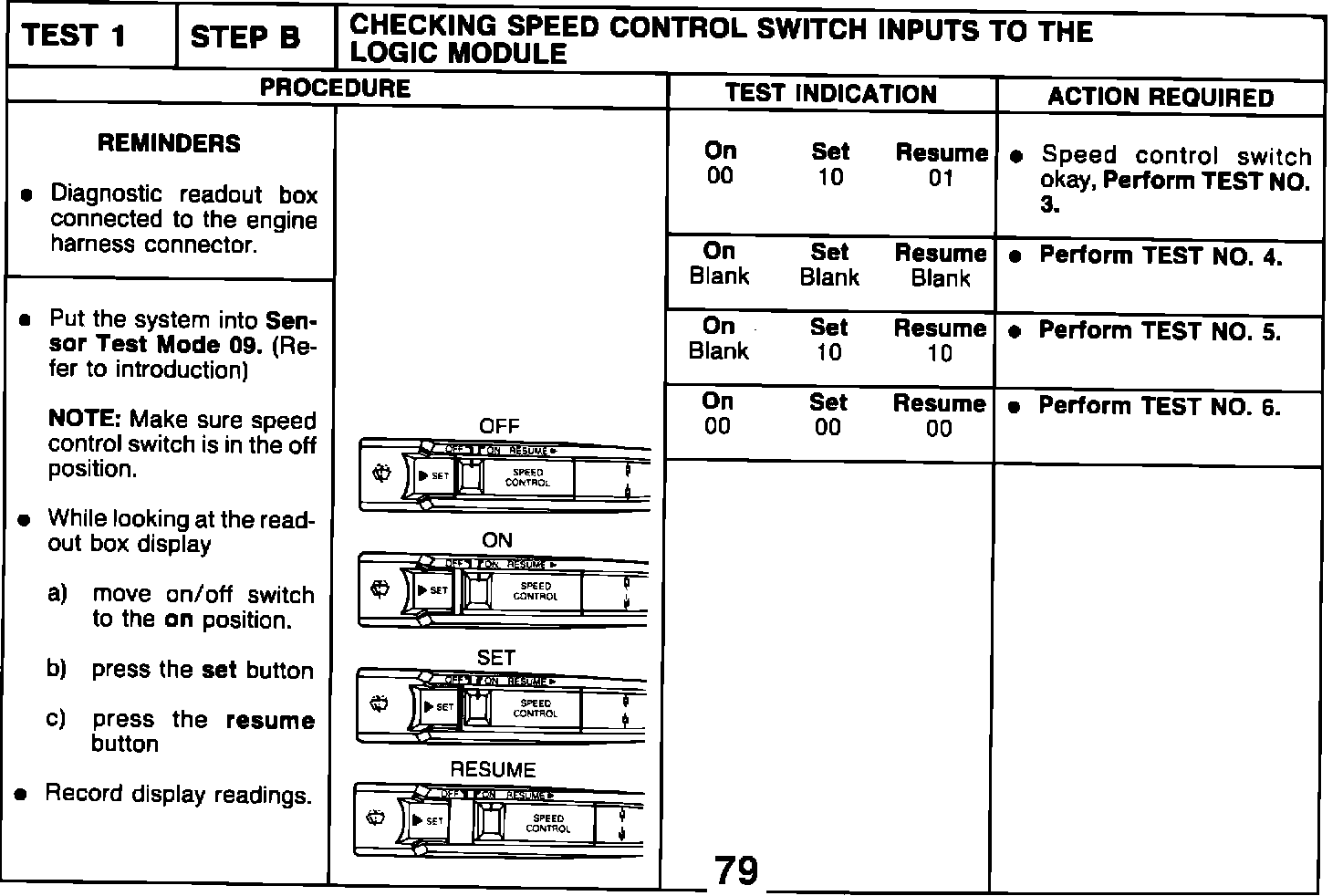

TEST 1 - STEP B - CHECKING SPEED CONTROL SWITCH INPUTS TO THE LOGIC MODULE

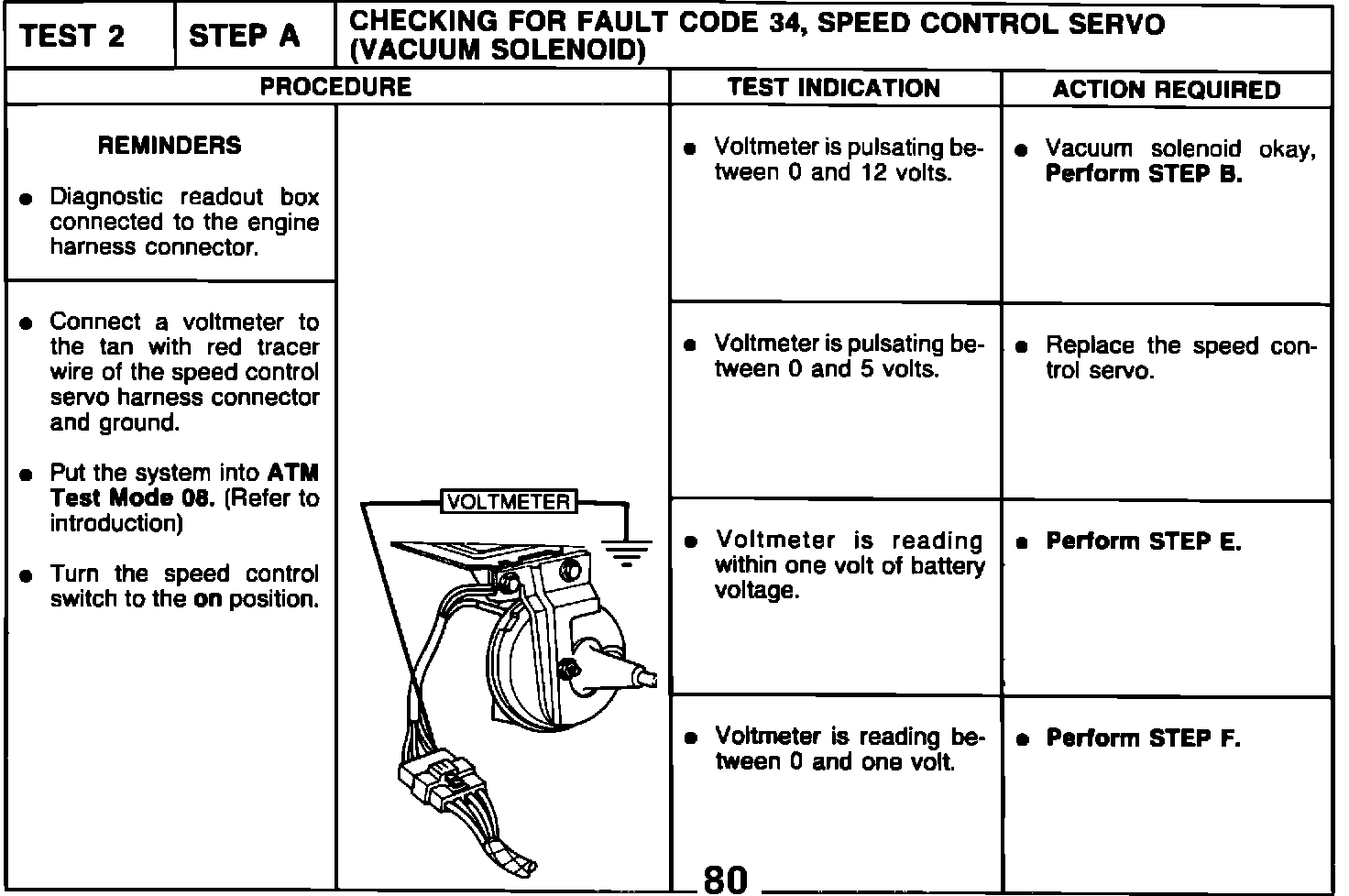

TEST 2 - STEP A - CHECKING FOR FAULT CODE 34, SPEED CONTROL SERVO
(VACUUM SOLENOID)

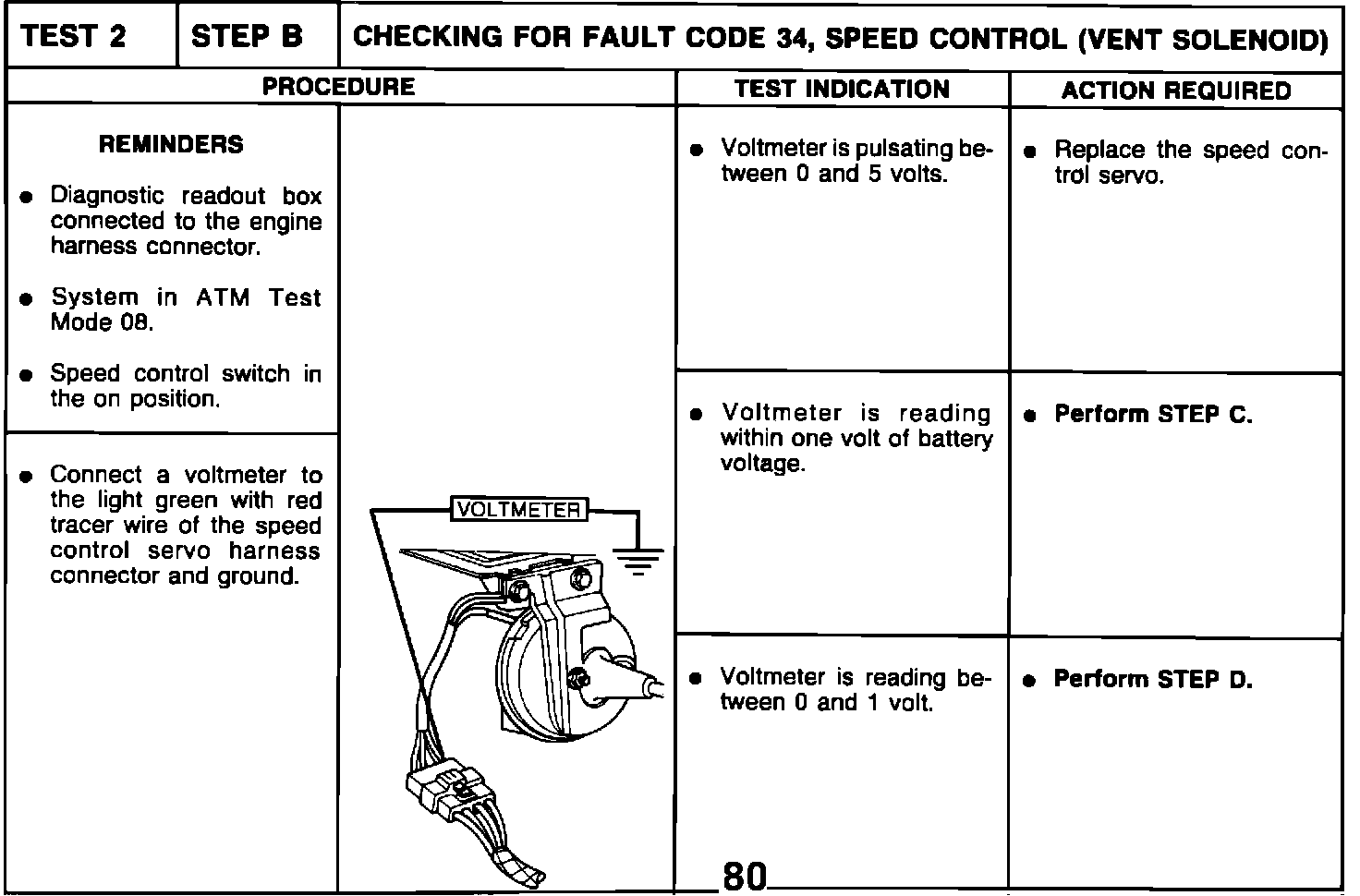

TEST 2 - STEP B - CHECKING FOR FAULT CODE 34, SPEED CONTROL (VENT SOLENOID)




CHECKING THE SPEED CONTROL (VENT SOLENOID) CONTROL WIRE

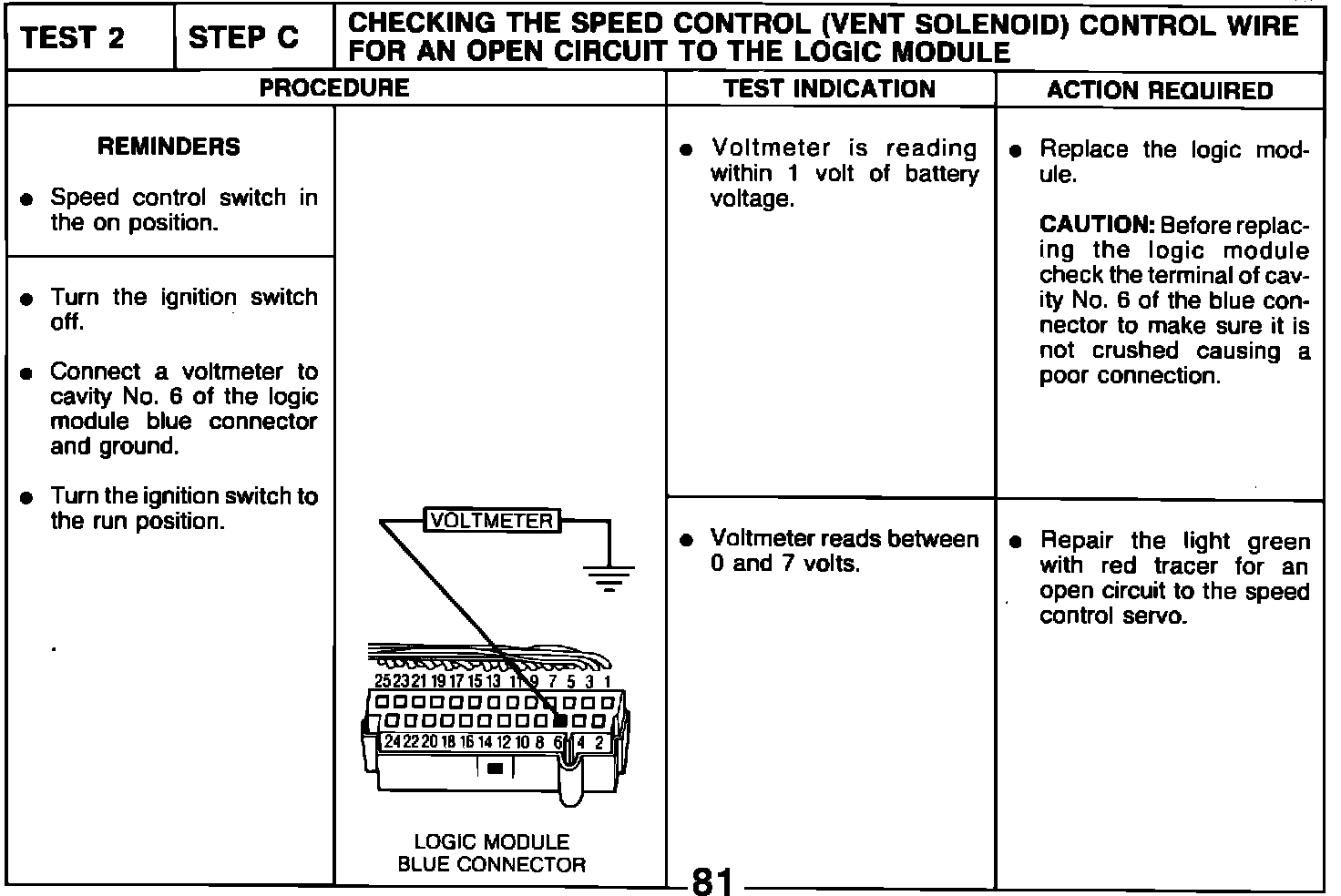

TEST 2 - STEP C - FOR AN OPEN CIRCUIT TO THE LOGIC MODULE

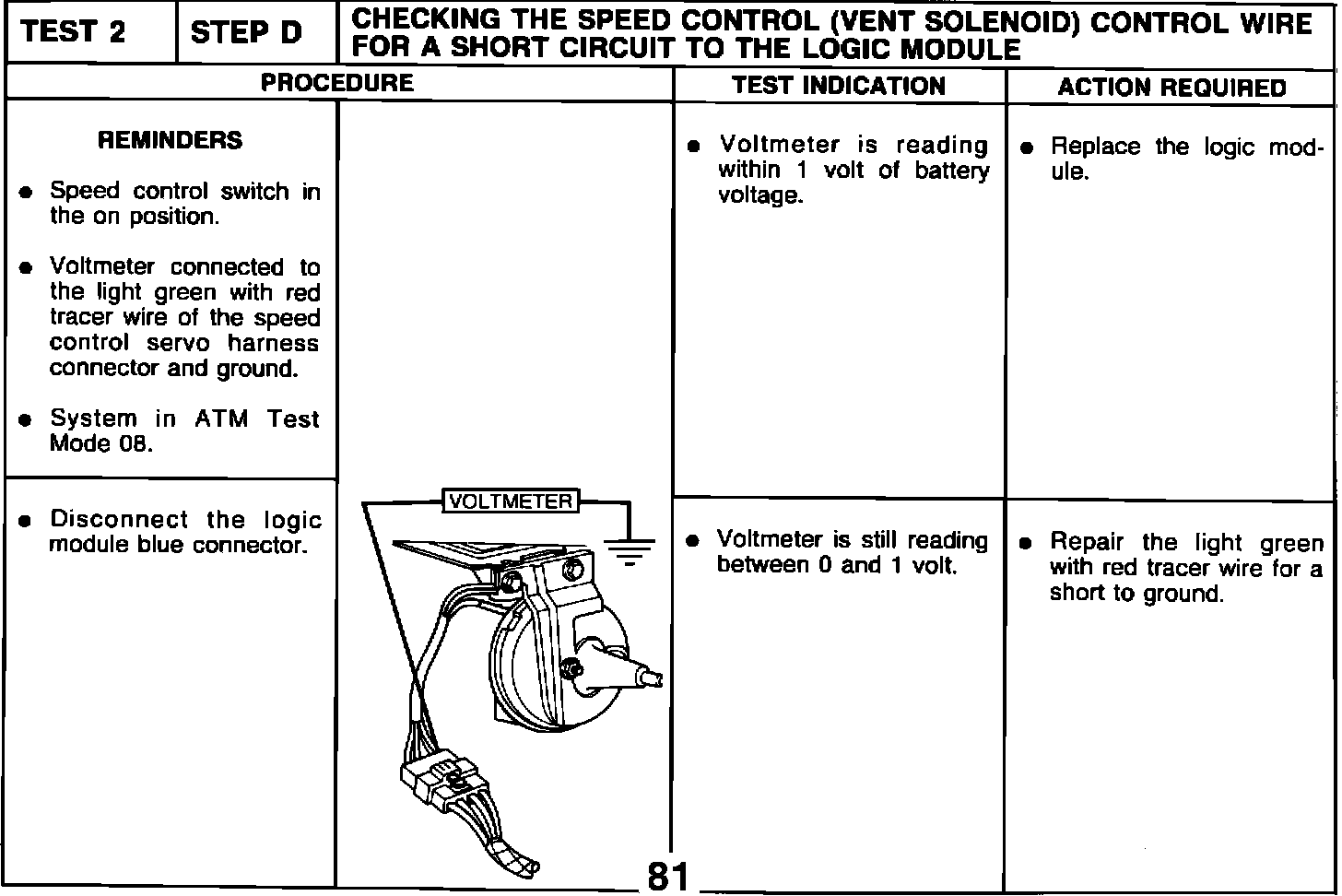

TEST 2 STEP D CHECKING THE SPEED CONTROL (VENT SOLENOID) CONTROL WIRE
FOR A SHORT CIRCUIT TO THE LOGIC MODULE

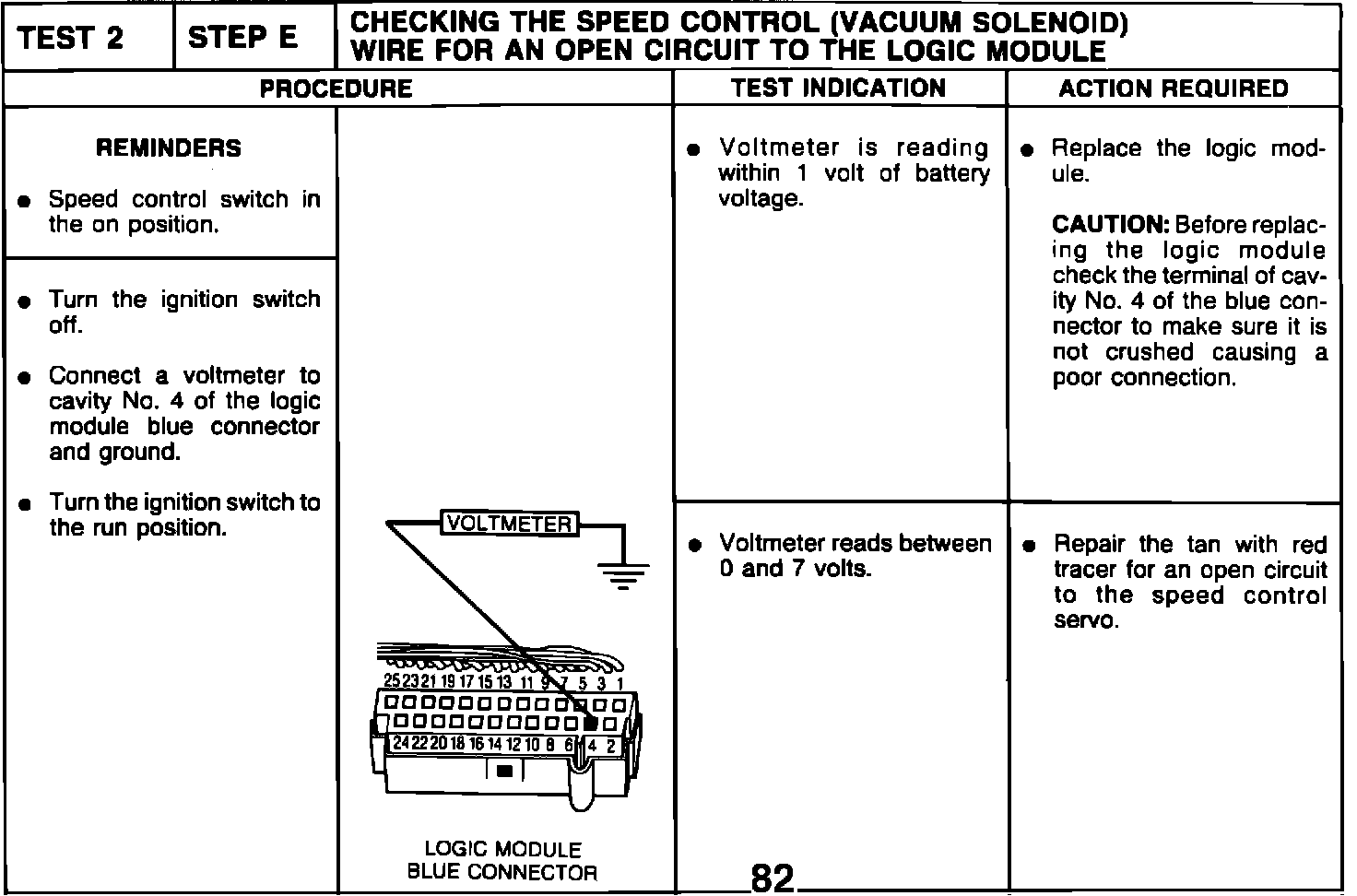

TEST 2 - STEP E - CHECKING THE SPEED CONTROL (VACUUM SOLENOID)
WIRE FOR AN OPEN CIRCUIT TO THE LOGIC MODULE

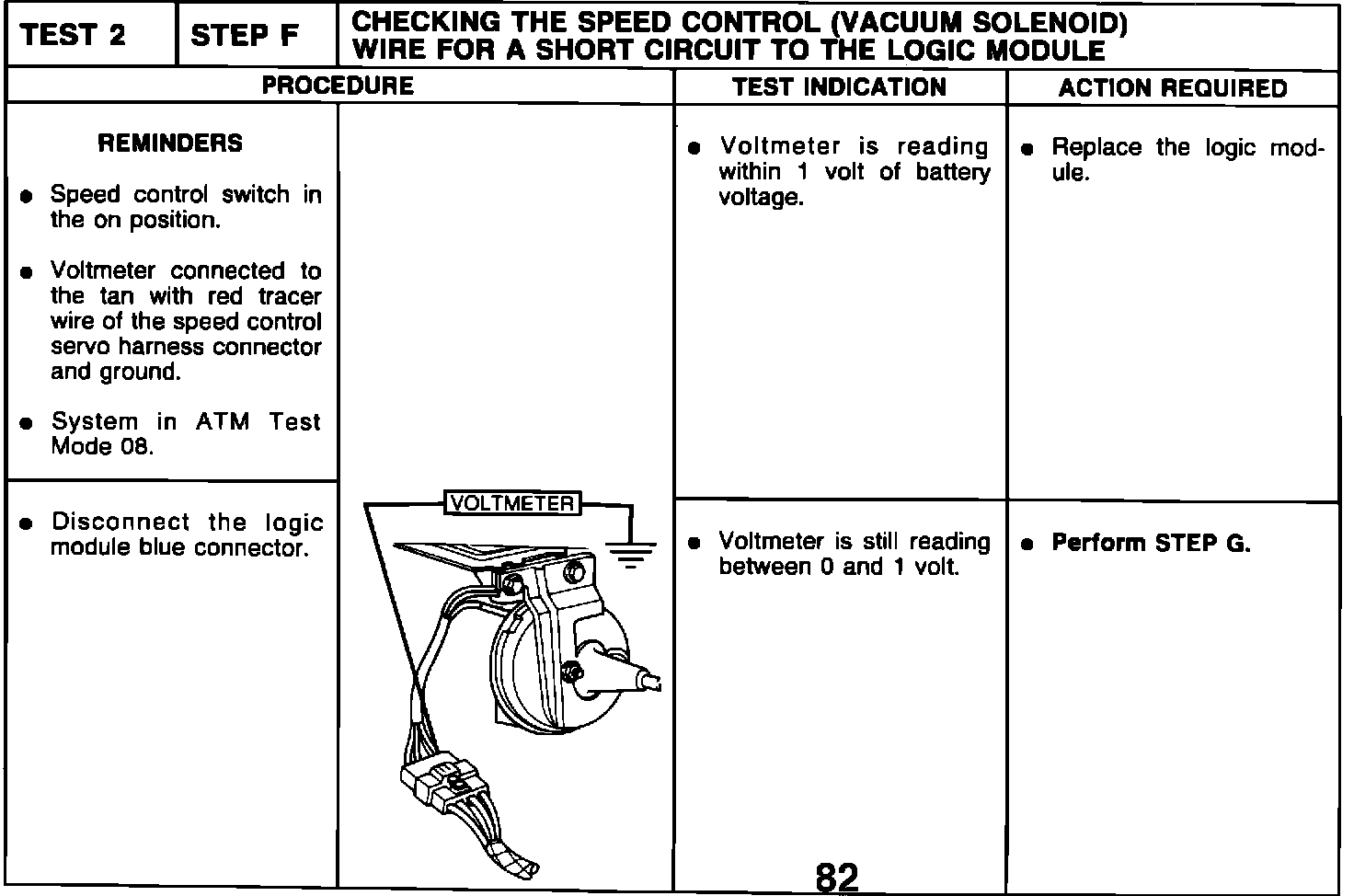

TEST 2 STEP F CHECKING THE SPEED CONTROL (VACUUM SOLENOID)
WIRE FOR A SHORT CIRCUIT TO THE LOGIC MODULE

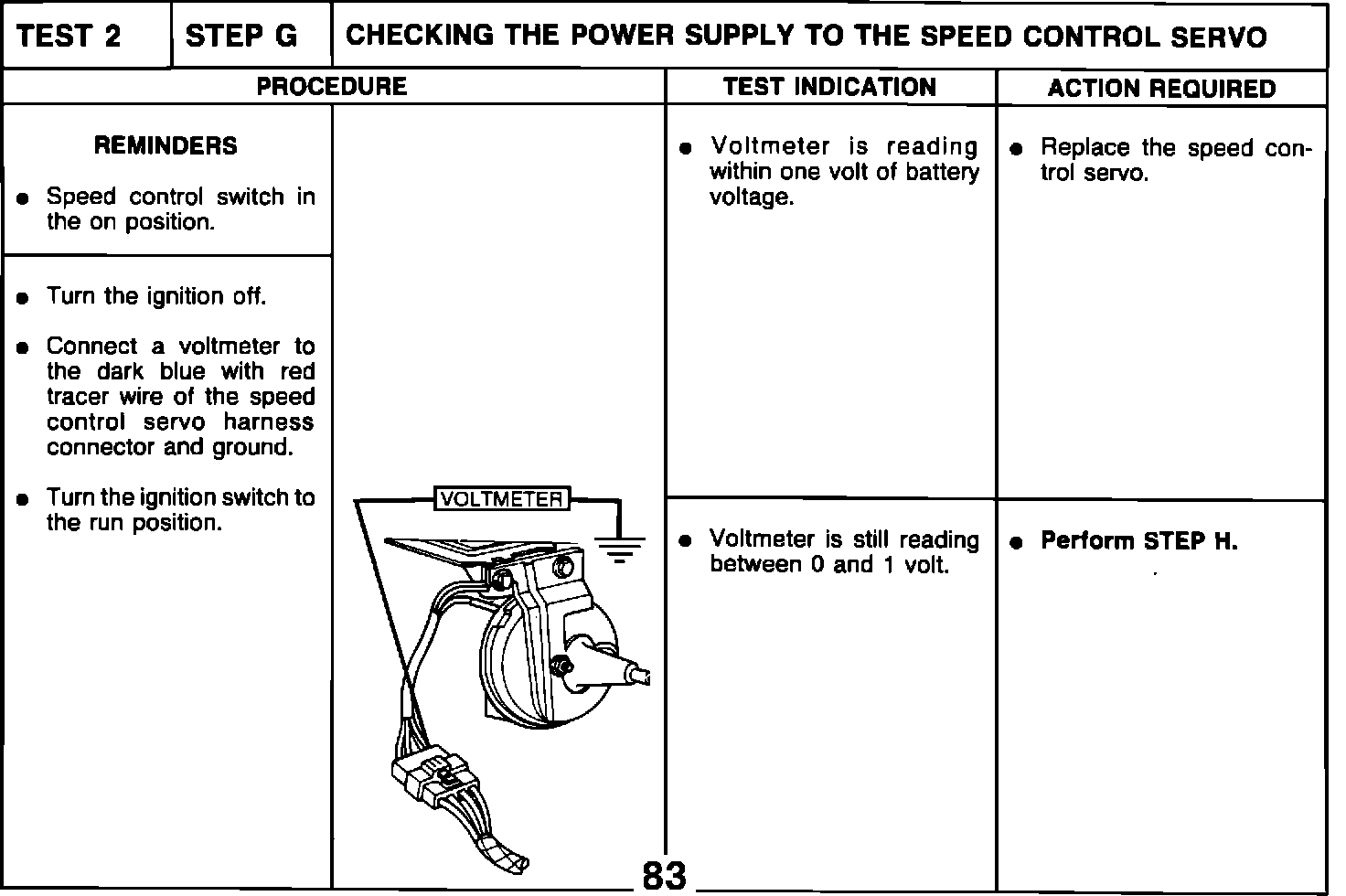

TEST 2 - STEP G - CHECKING THE POWER SUPPLY TO THE SPEED CONTROL SERVO

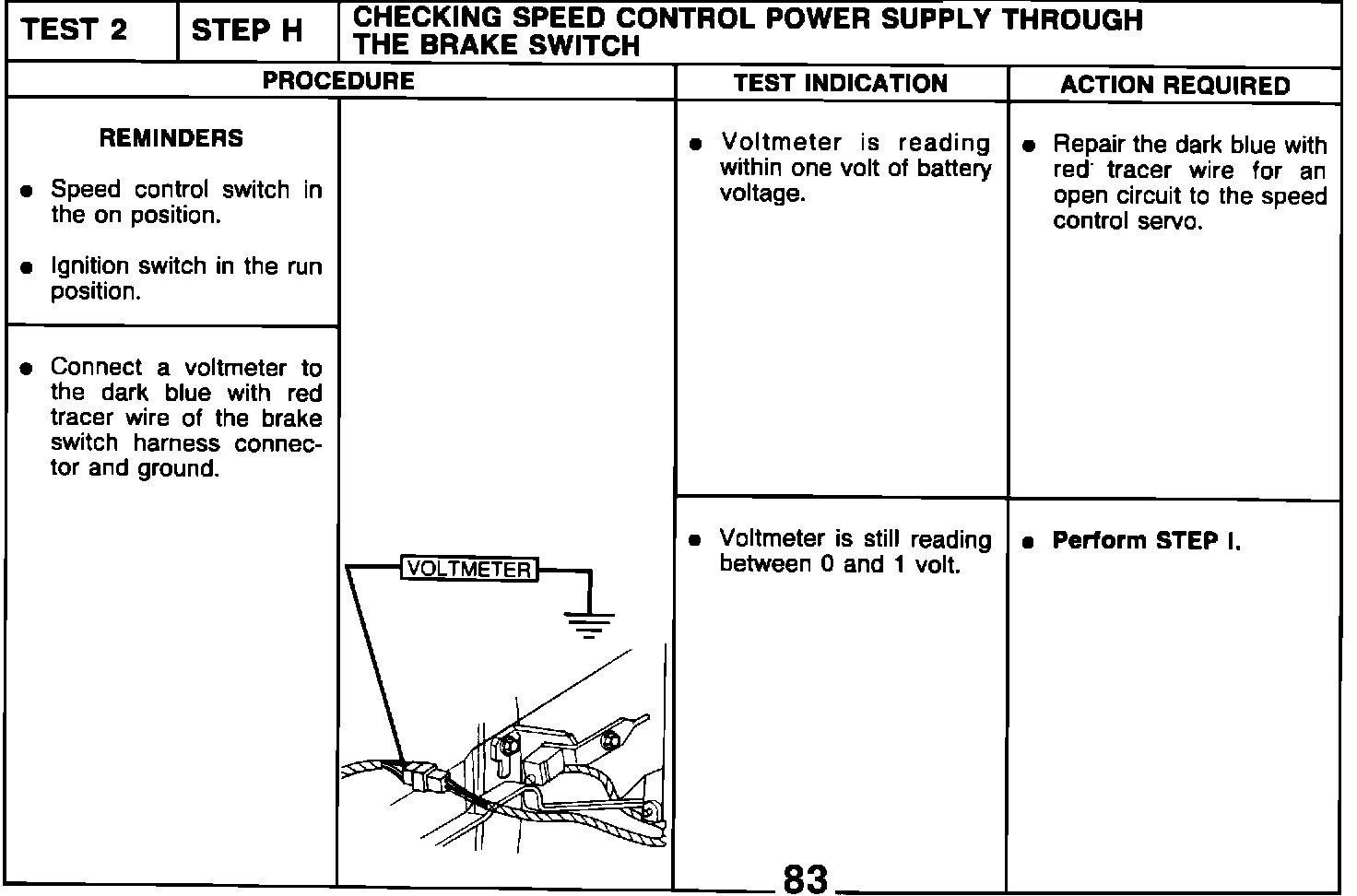

TEST 2 STEP H CHECKING SPEED CONTROL POWER SUPPLY THROUGH
THE BRAKE SWITCH

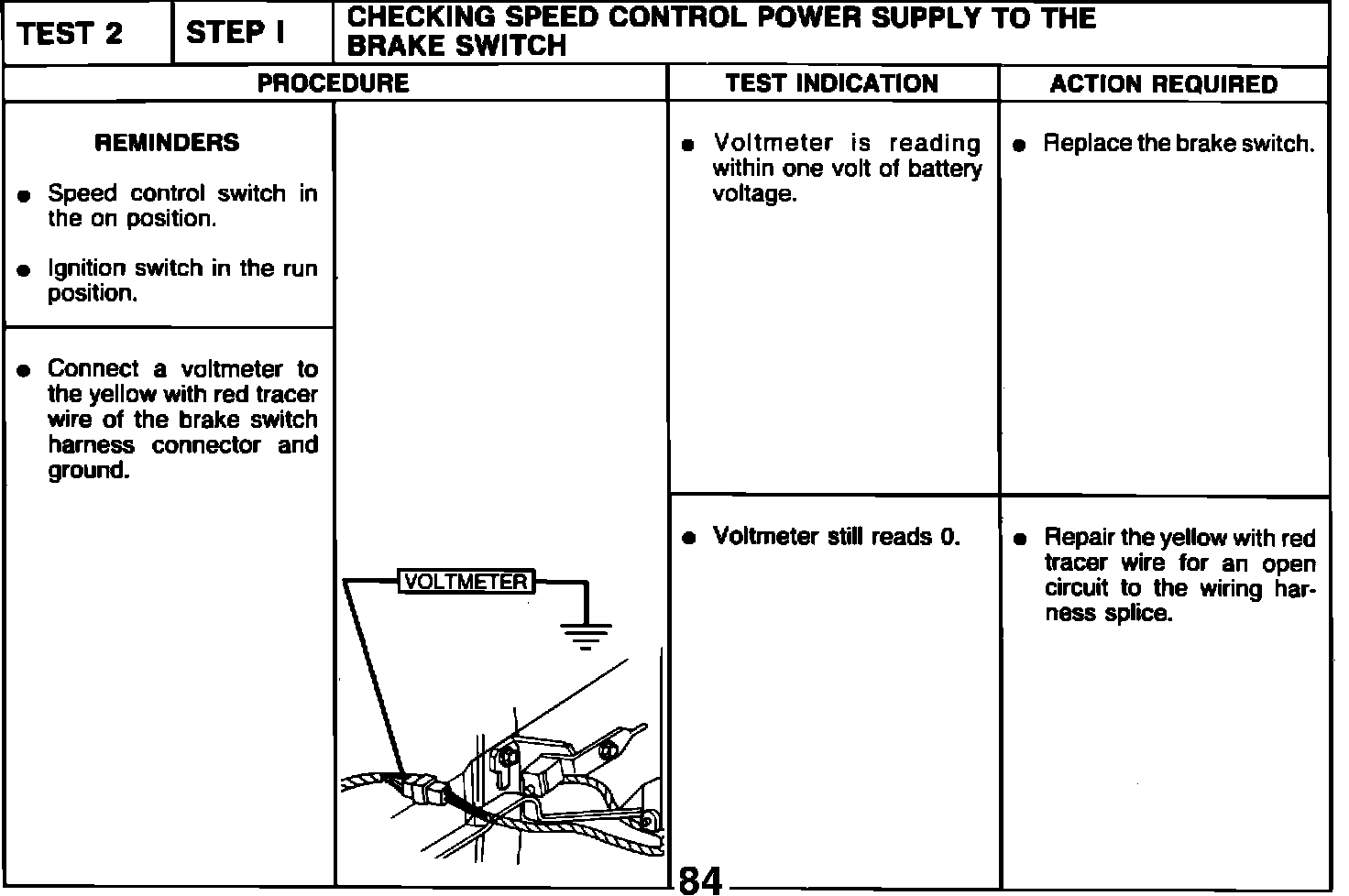

TEST 2 - STEP I - CHECKING SPEED CONTROL POWER SUPPLY TO THE
BRAKE SWITCH

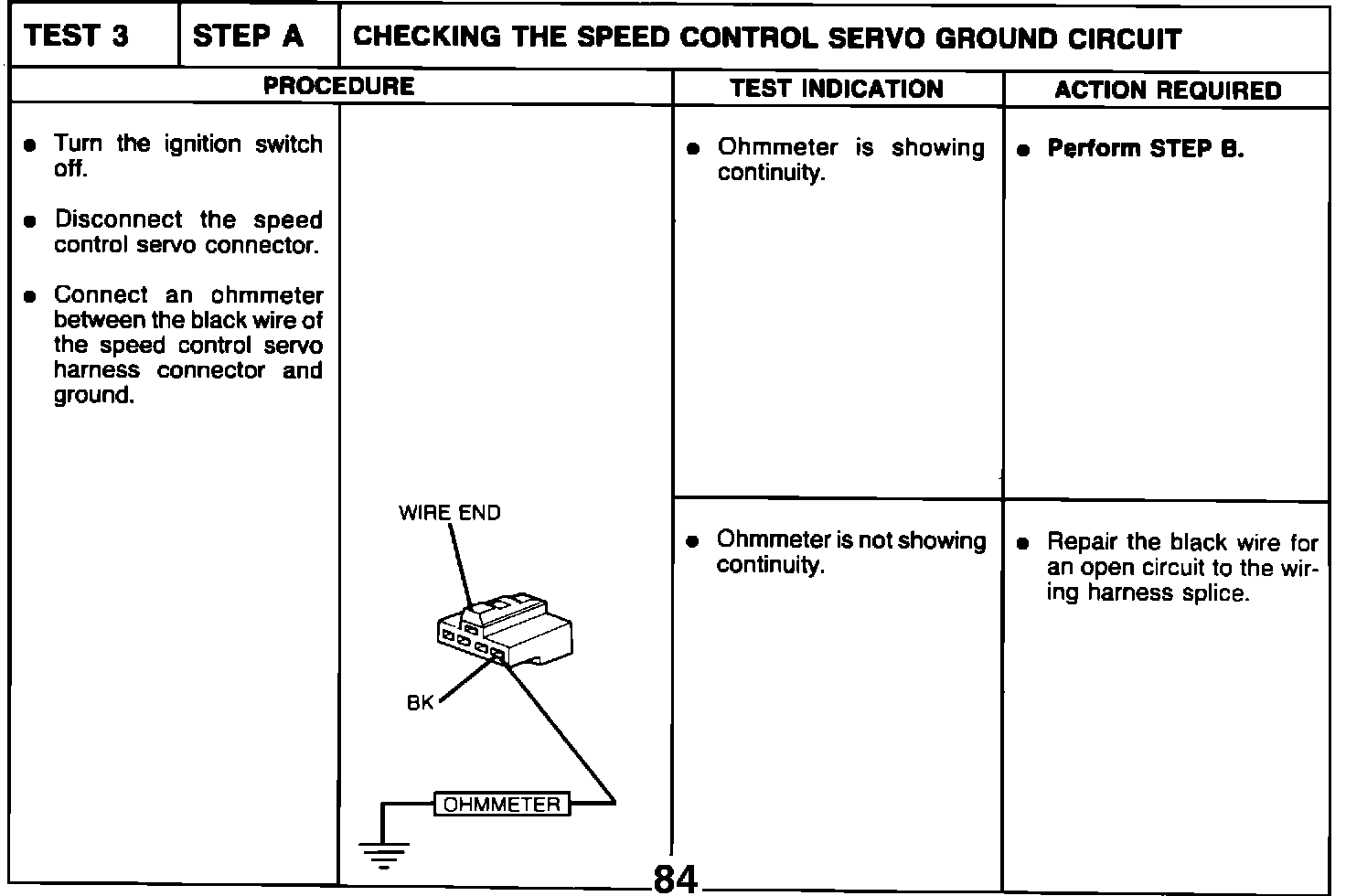

TEST 3 STEP A CHECKING THE SPEED CONTROL SERVO GROUND CIRCUIT

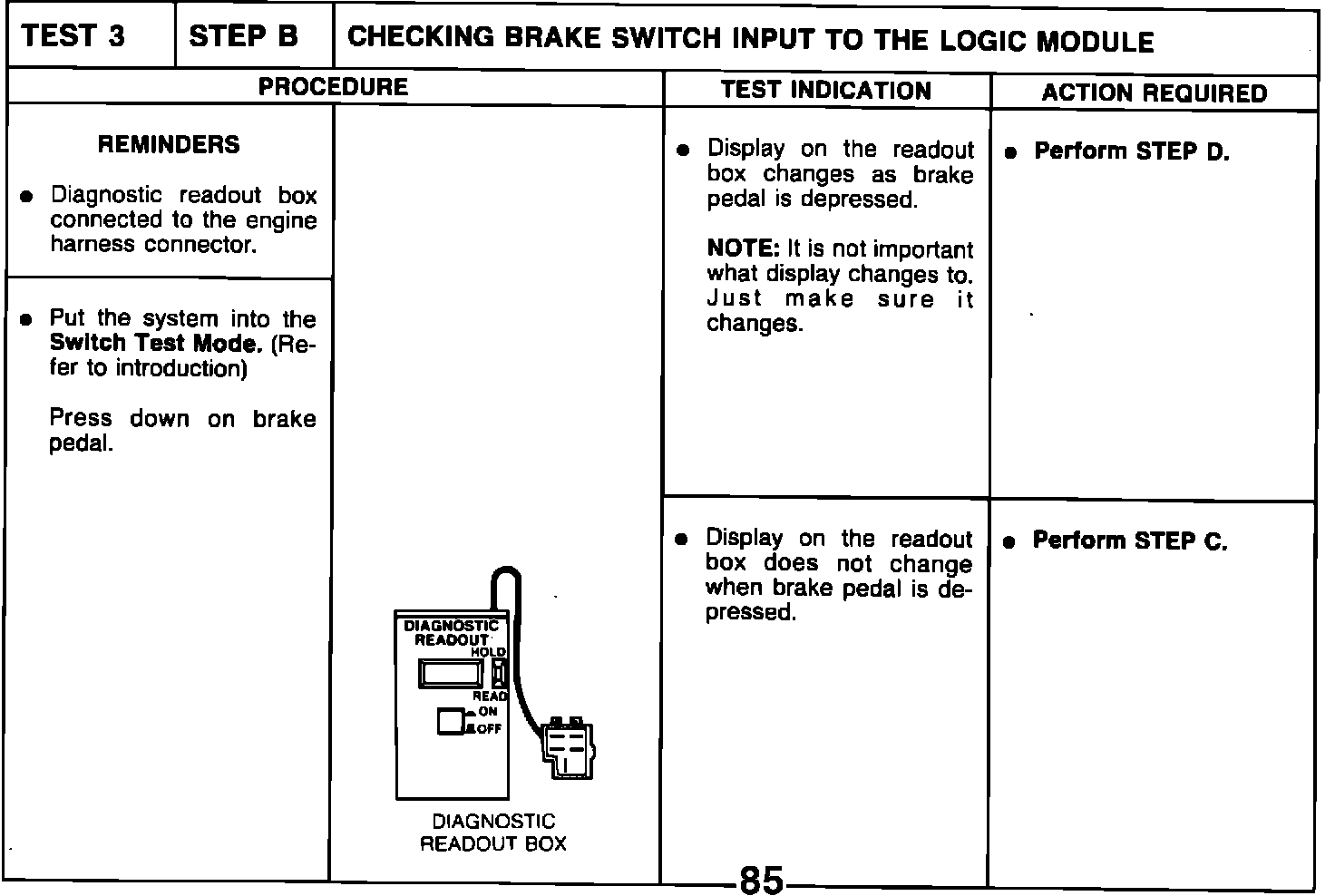

TEST 3 - STEP B - CHECKING BRAKE SWITCH INPUT TO THE LOGIC MODULE

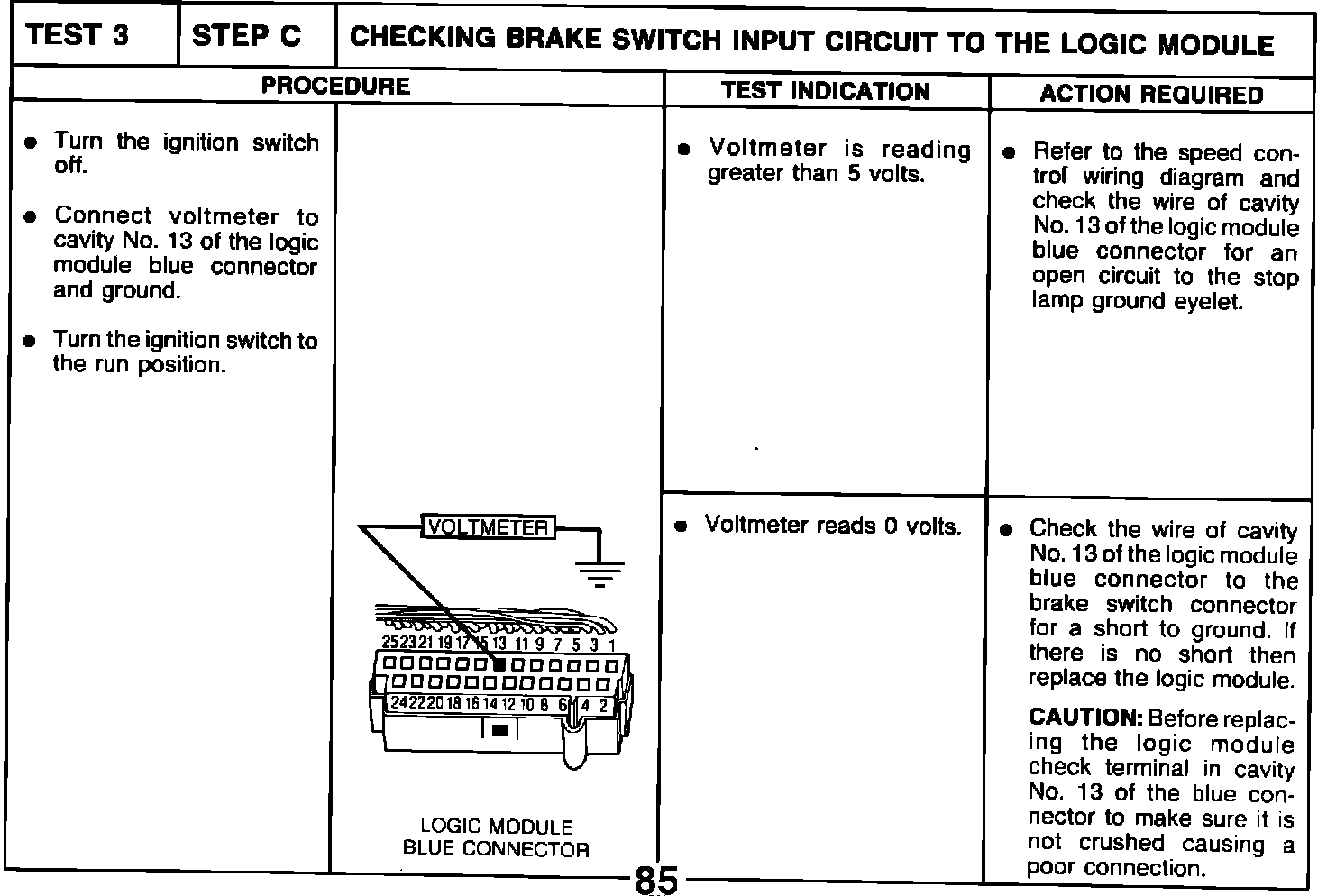

TEST 3 STEP C CHECKING BRAKE SWITCH INPUT CIRCUIT TO THE LOGIC MODULE

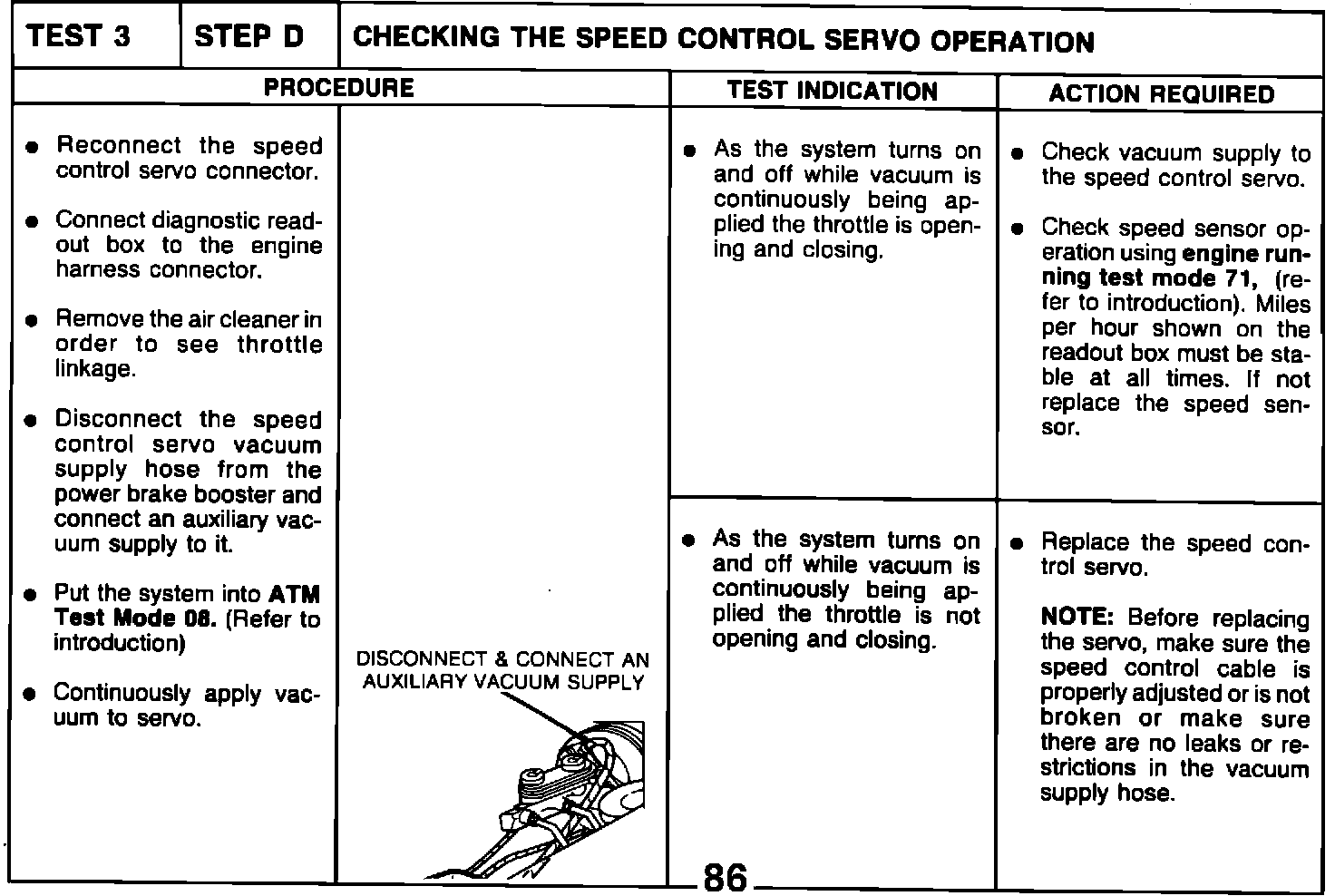

TEST 3 - STEP D - CHECKING THE SPEED CONTROL SERVO OPERATION




TEST 4 STEP A CHECKING SPEED CONTROL SYSTEM ON/OFF FUNCTION IN THE
LOGIC MODULE

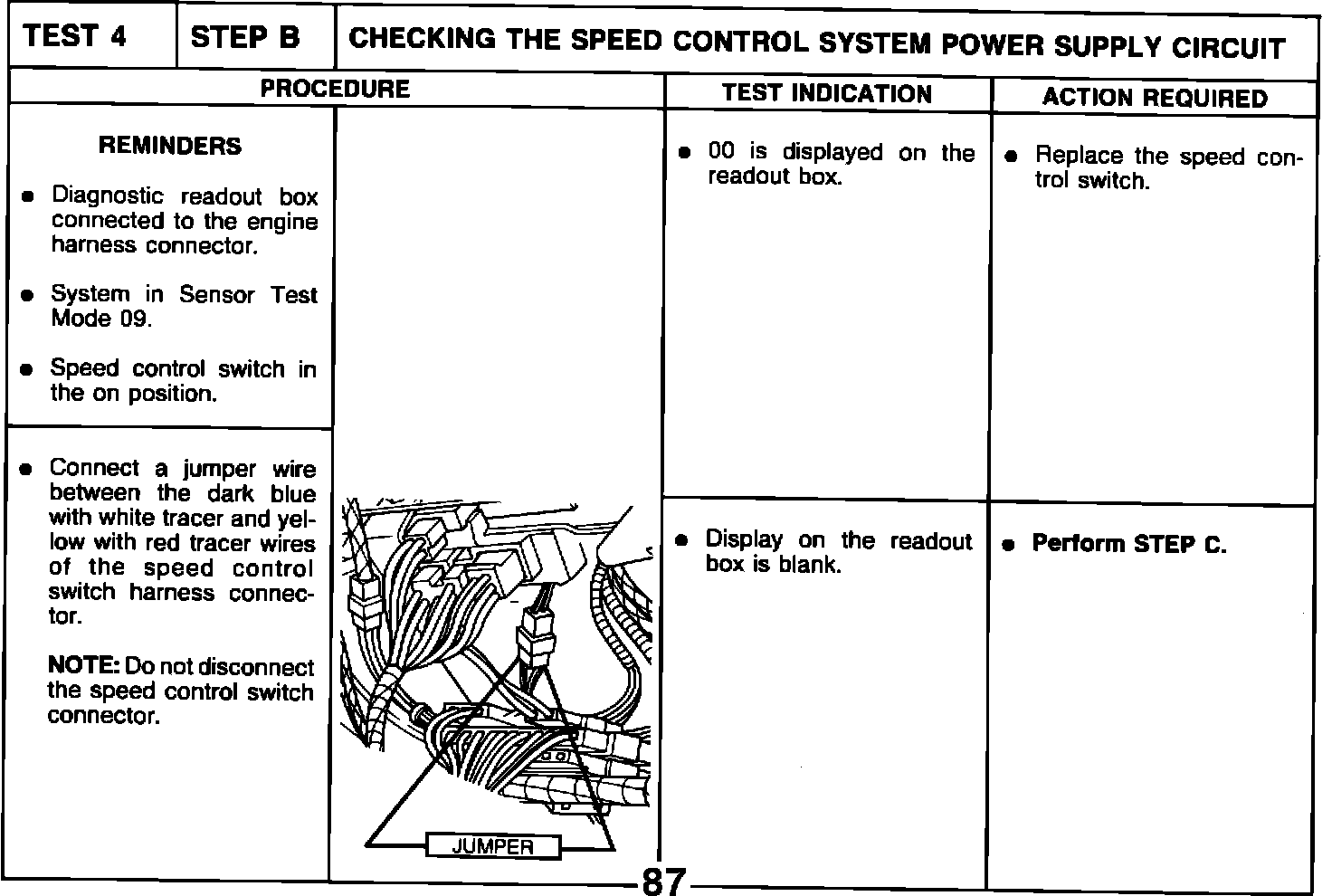

TEST 4 - STEP B - CHECKING THE SPEED CONTROL SYSTEM POWER SUPPLY CIRCUIT

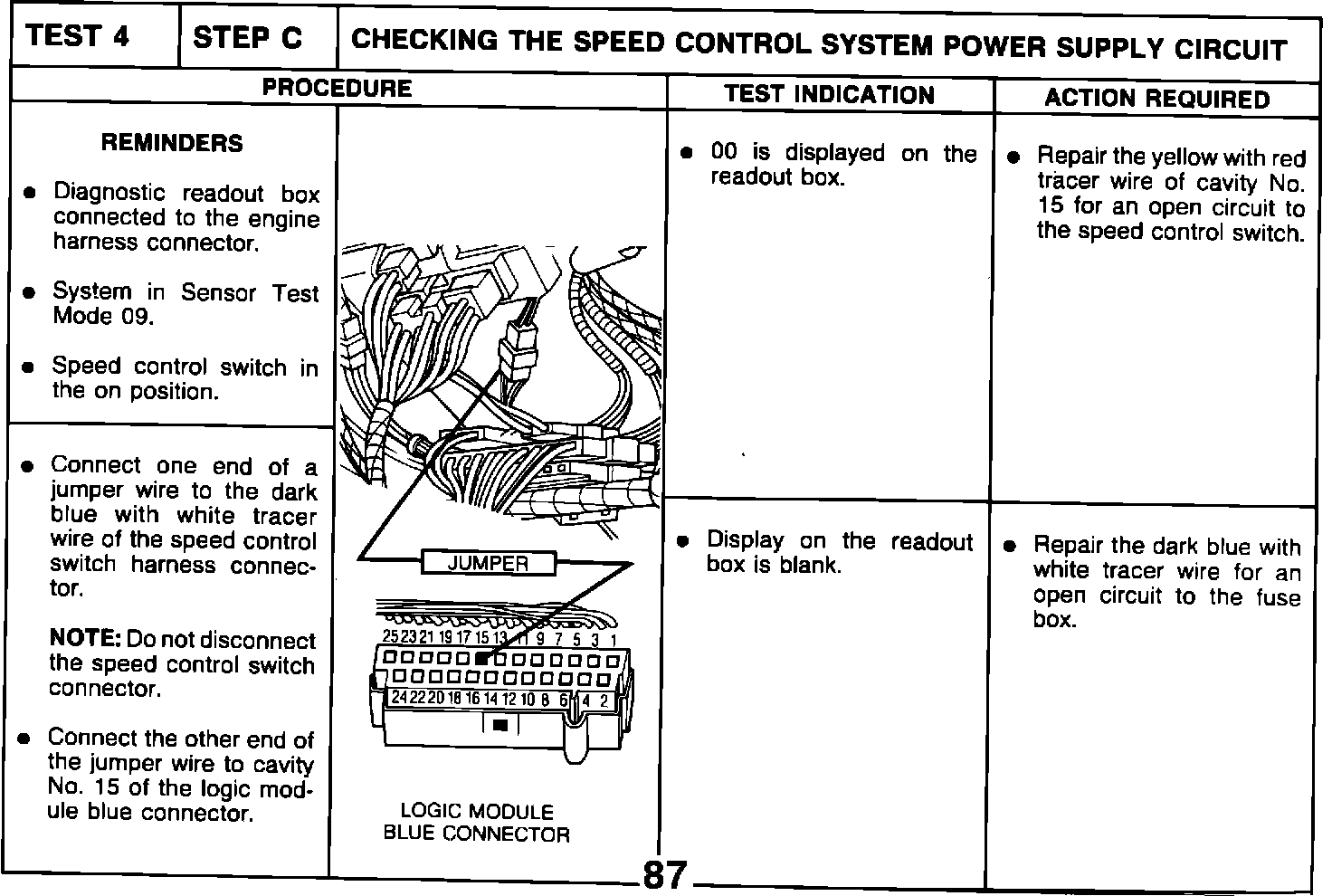

TEST 4 STEP C CHECKING THE SPEED CONTROL SYSTEM POWER SUPPLY CIRCUIT

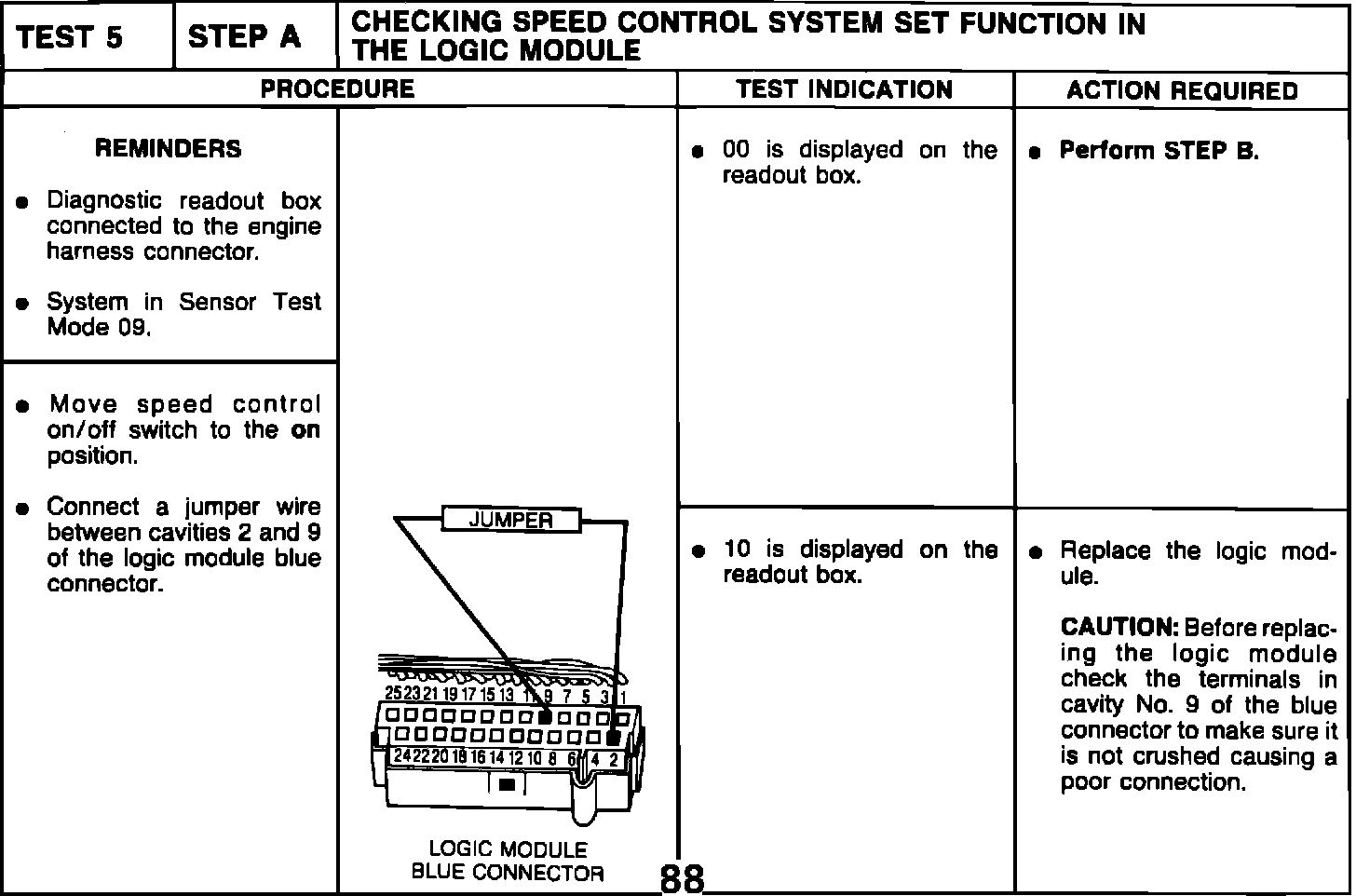

TEST 5 - STEP A - CHECKING SPEED CONTROL SYSTEM SET FUNCTION IN
THE LOGIC MODULE

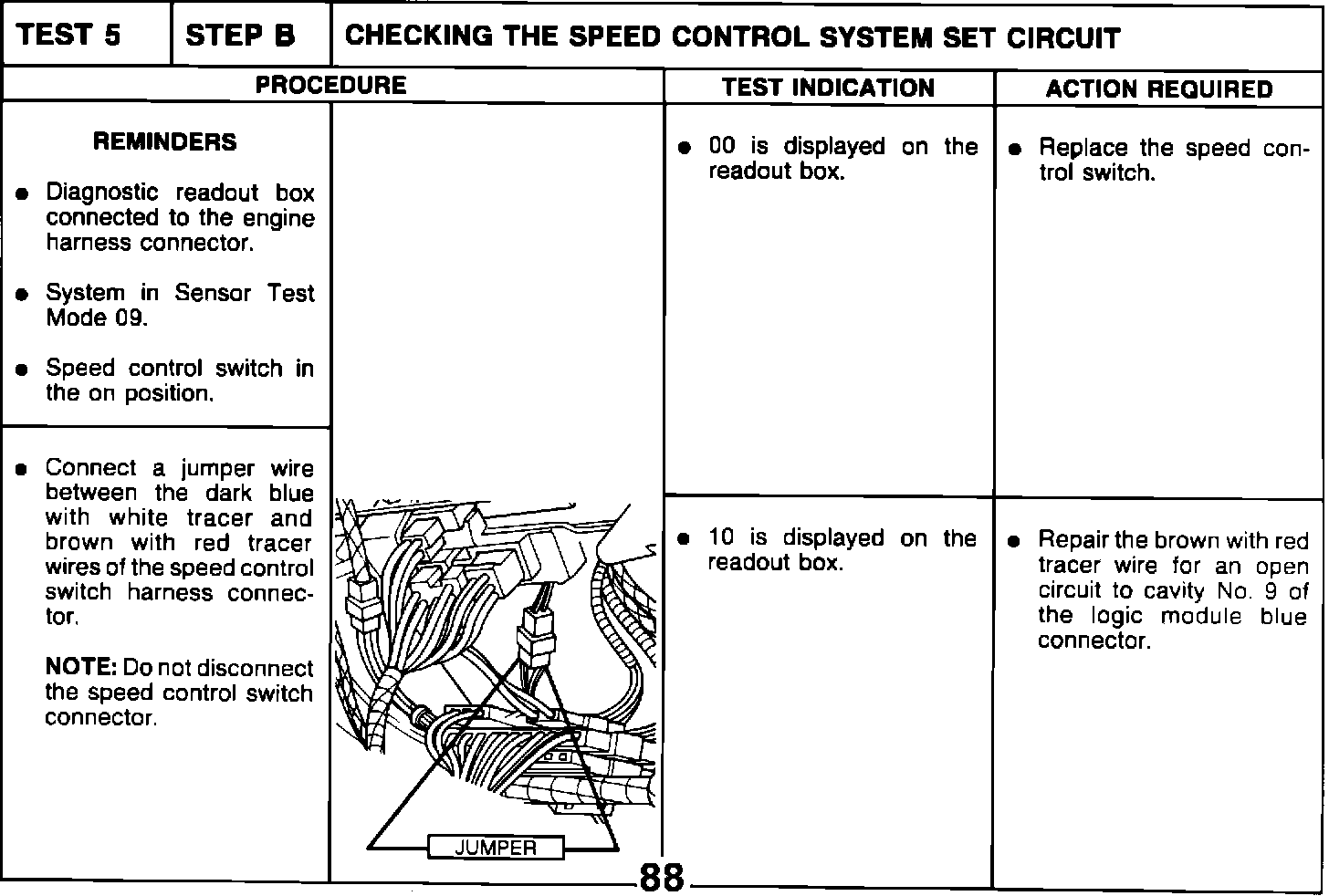

TEST 5 STEP B CHECKING THE SPEED CONTROL SYSTEM SET CIRCUIT

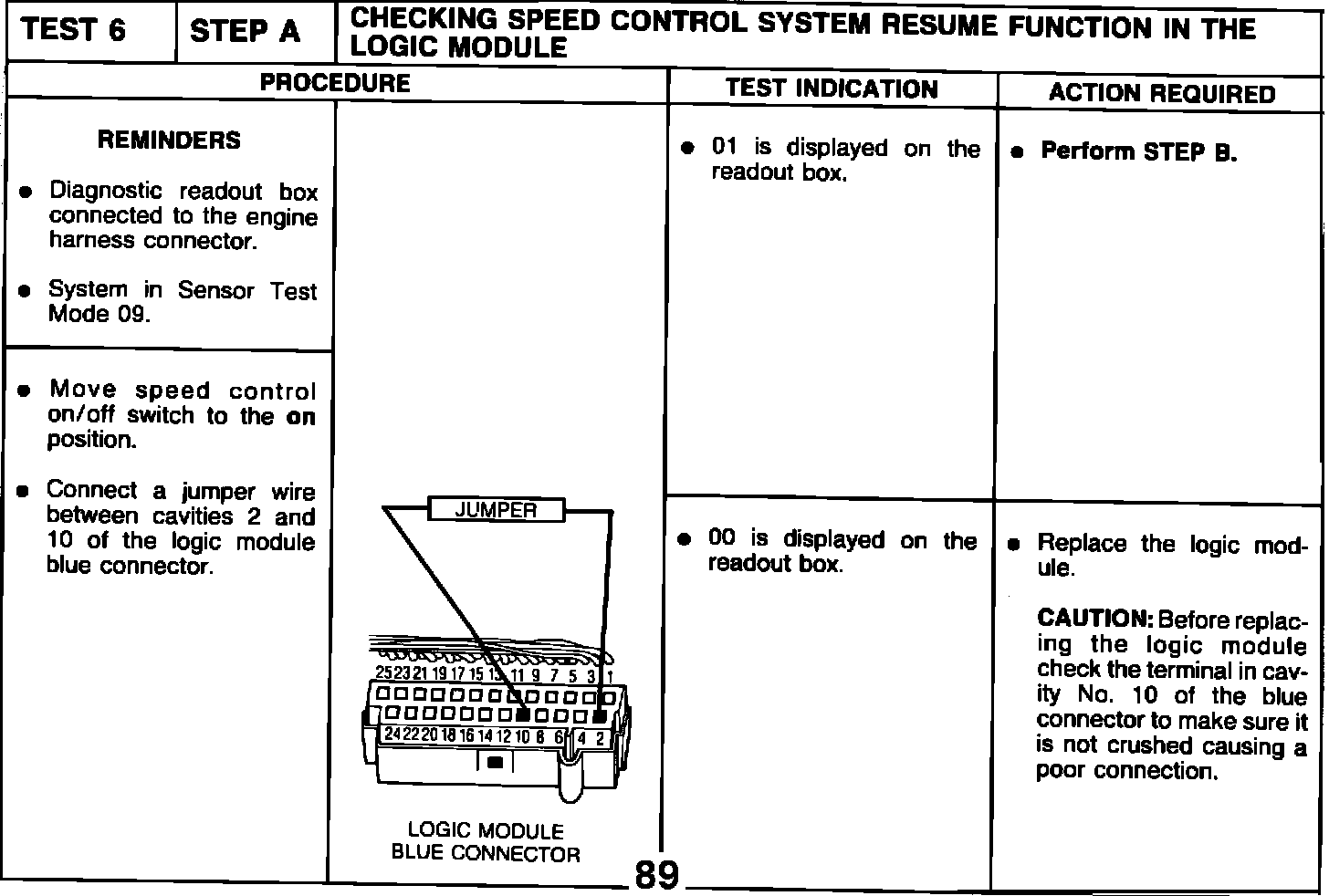

TEST 6 - STEP A - CHECKING SPEED CONTROL SYSTEM RESUME FUNCTION IN THE
LOGIC MODULE

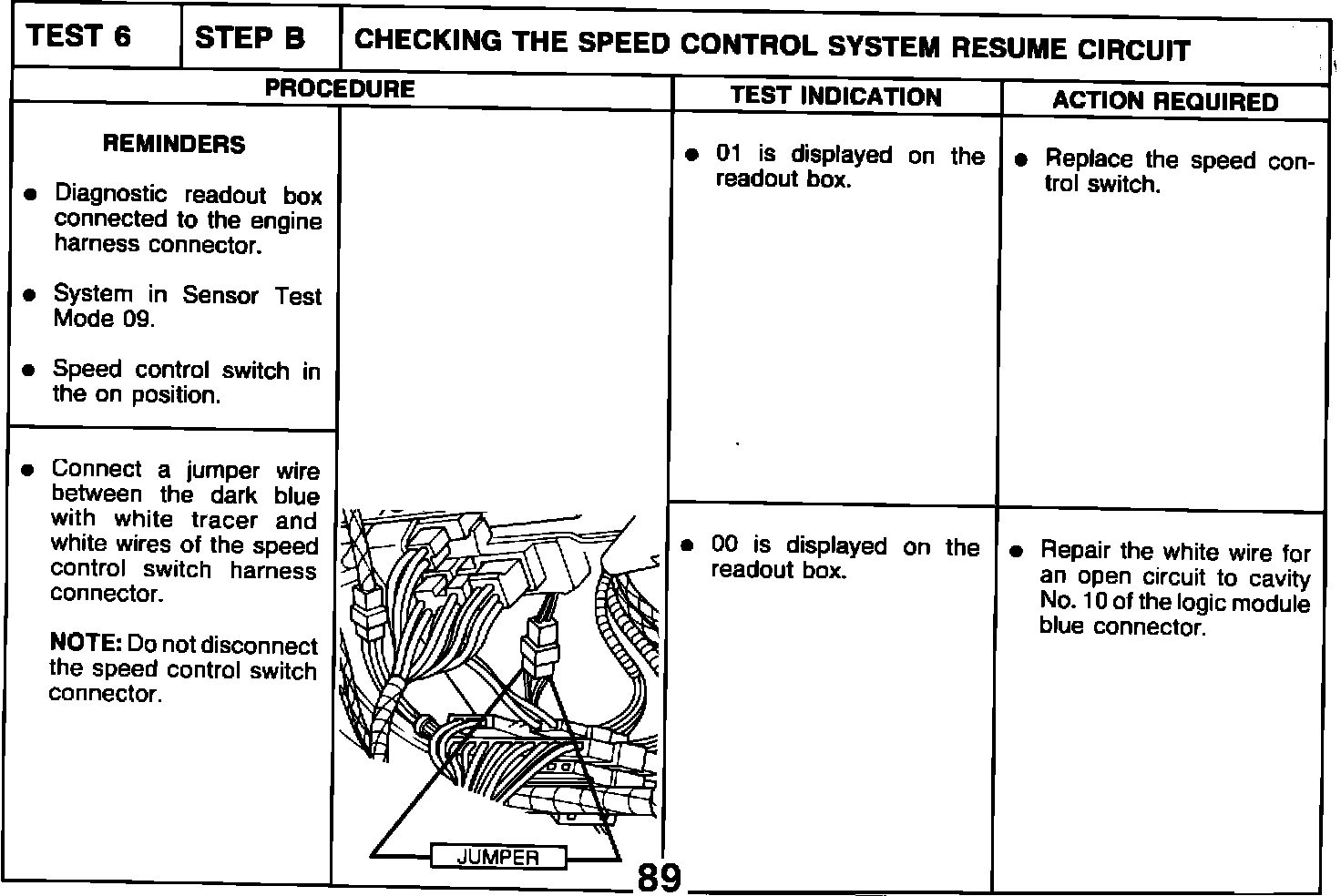

TEST 6 STEP B CHECKING THE SPEED CONTROL SYSTEM RESUME CIRCUIT
