Logic Module
Logic Module
RH Front Corner Of Passenger Compartment:

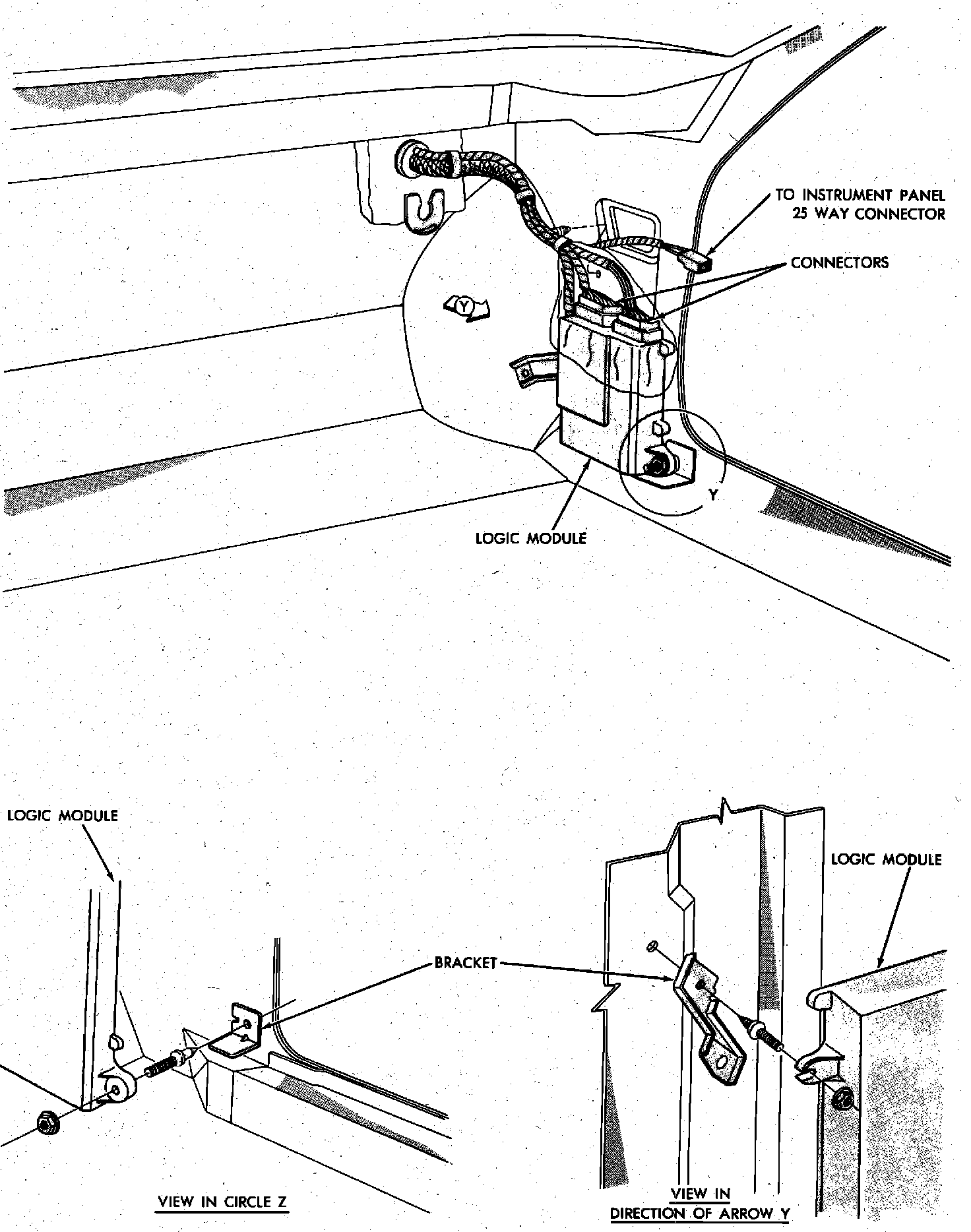

Logic Module
Location, at right side kick panel.
