1987
>>
Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
A/C & Heater (Engine Compartment)
A/C & Heater (Engine Compartment)

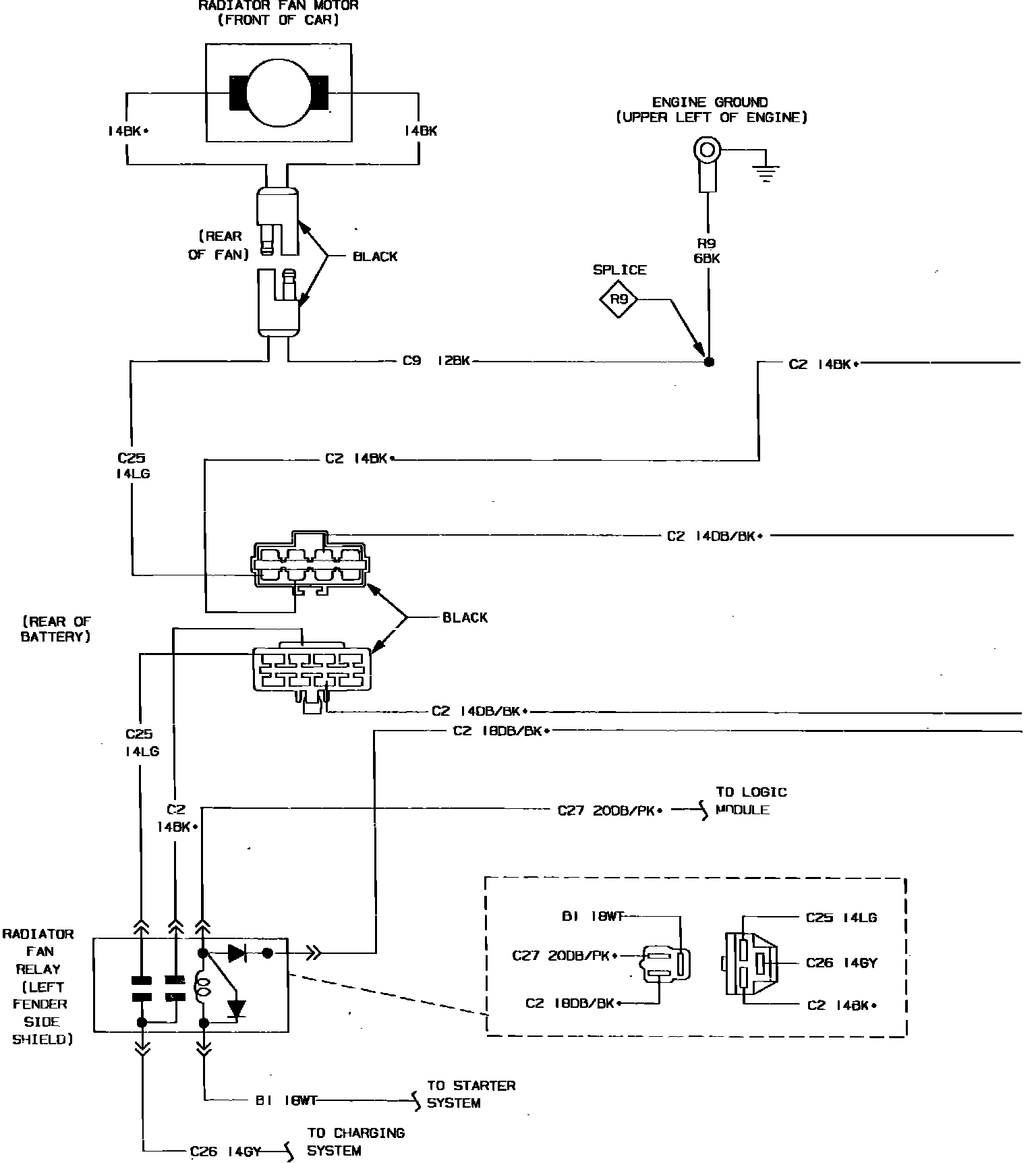

Air Conditioning & Heater System Wiring Circuit. (Part 1 of 2):

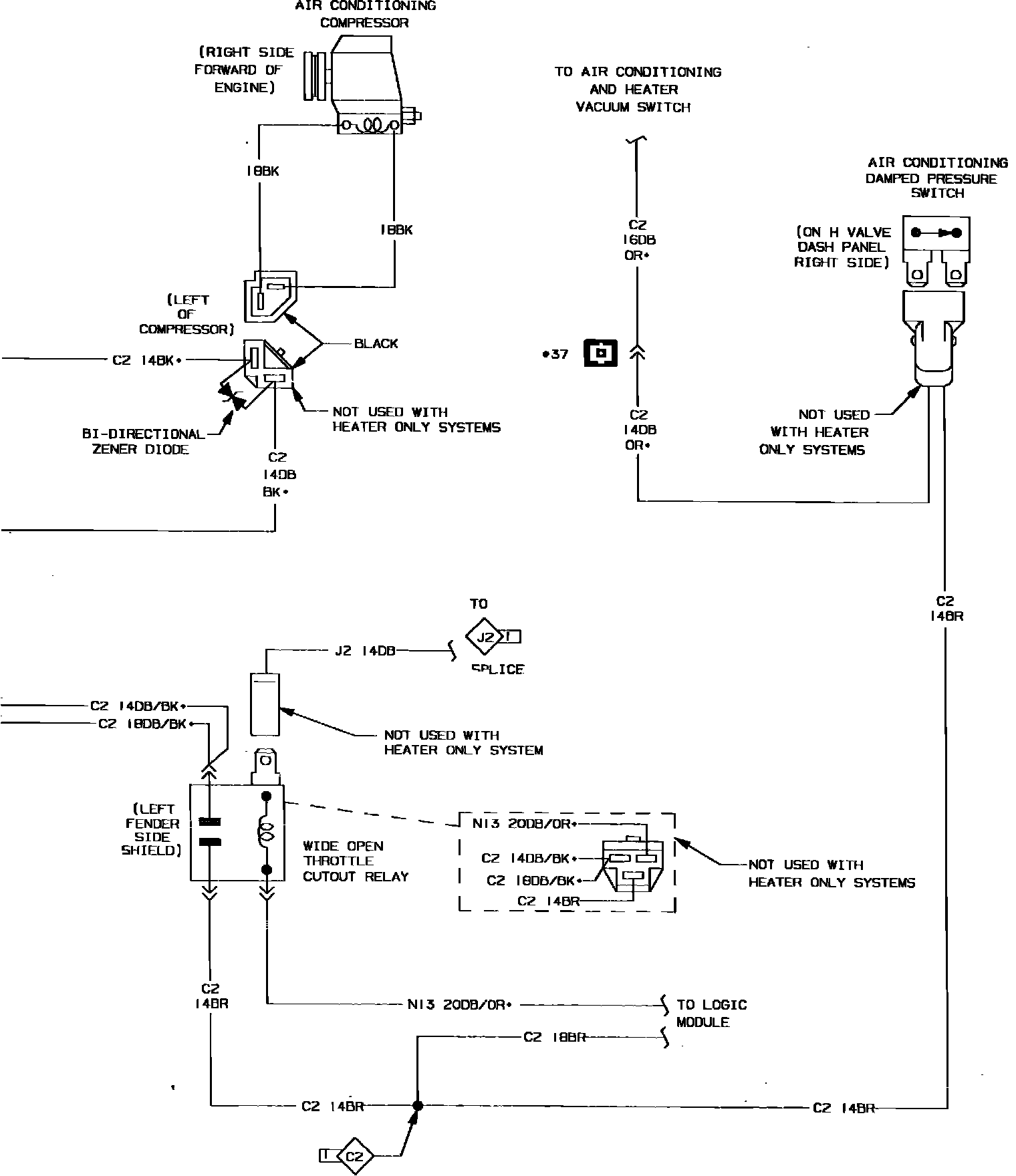

Air Conditioning & Heater System Wiring Circuit. (Part 2 of 2):
