System Diagram

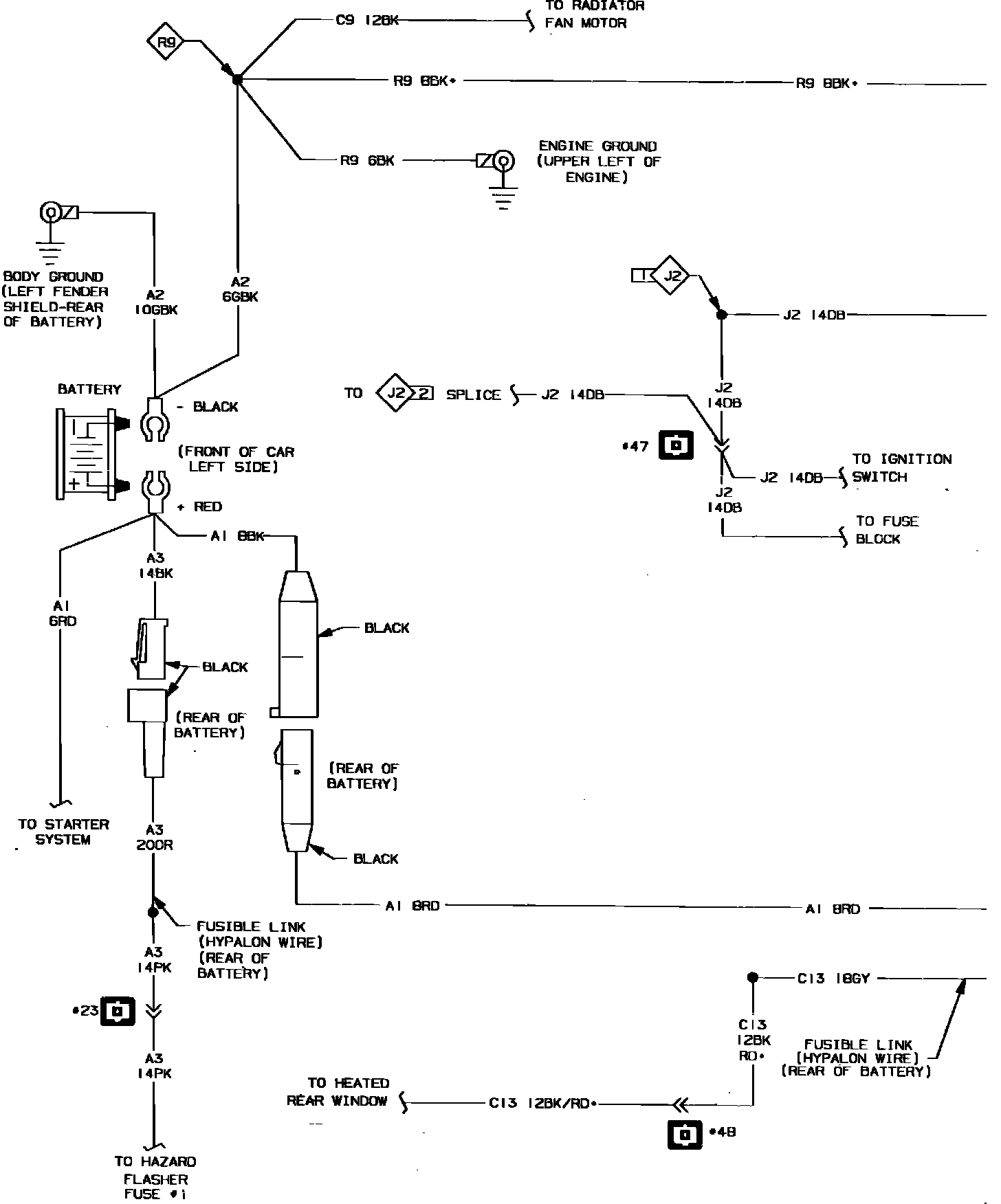

Fig. 24 Charging System Wiring Circuit (Part 1 of 2):

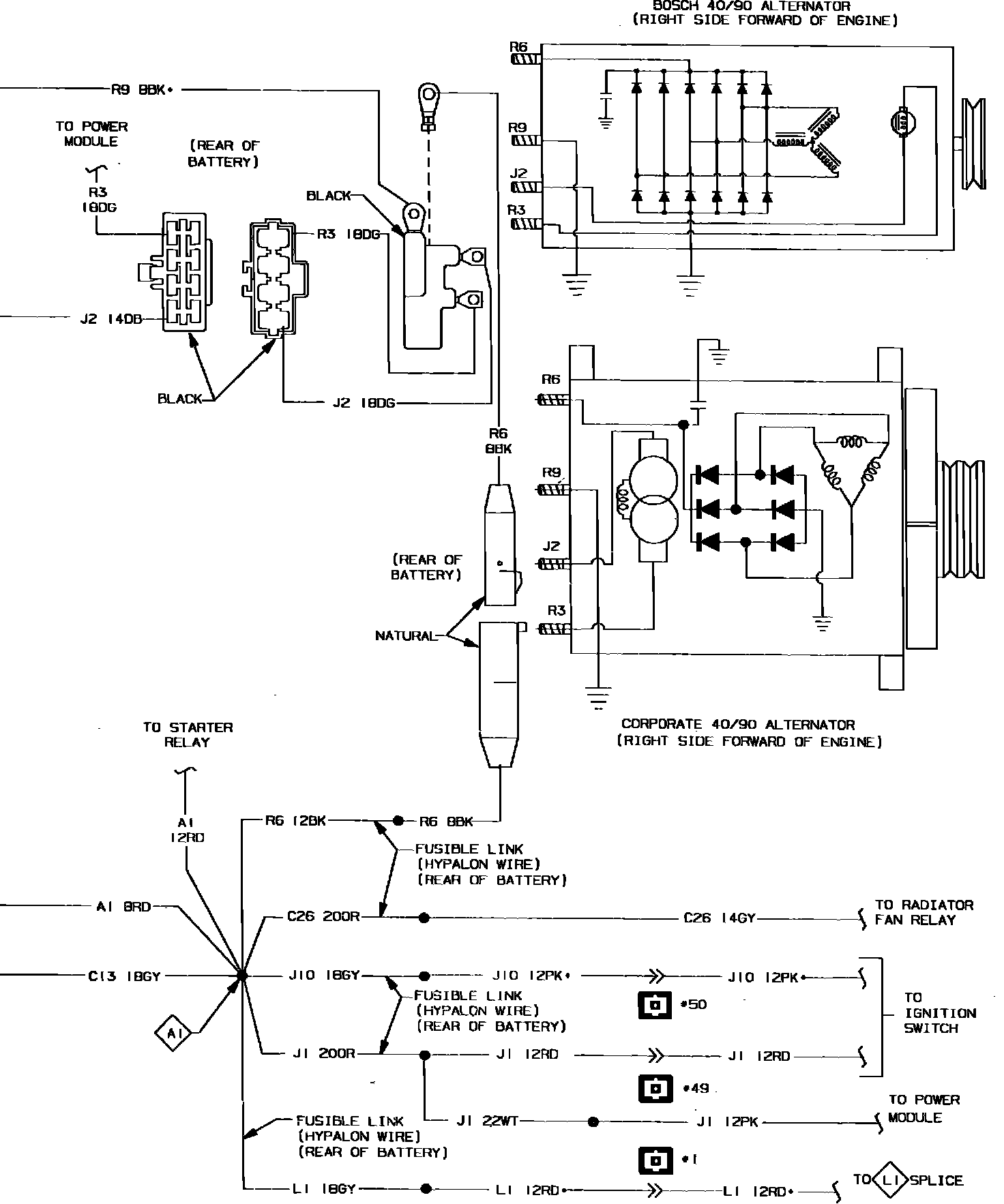

Fig. 24 Charging System Wiring Circuit (Part 2 of 2):

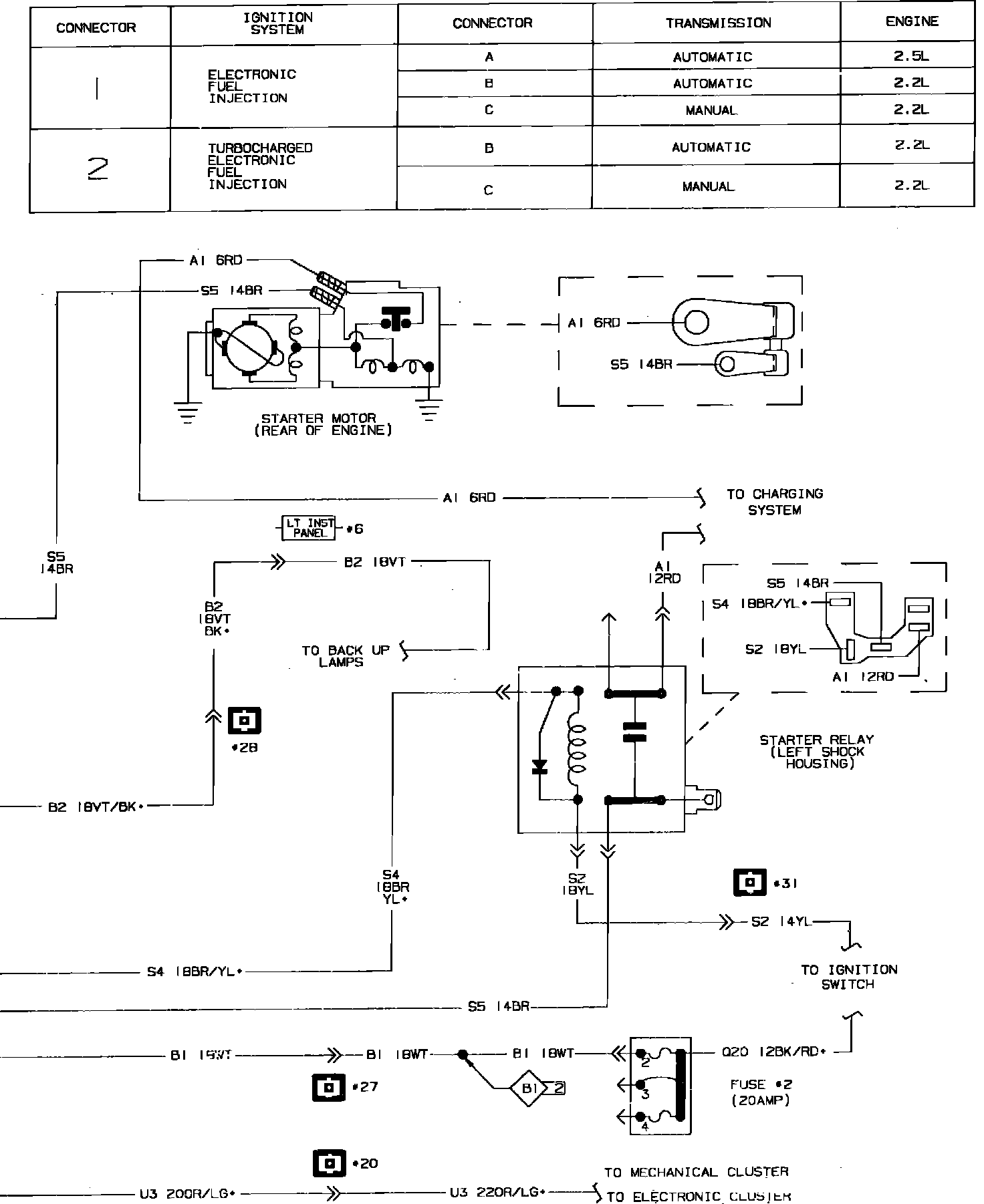

Fig. 59 Starter Wiring Circuit (Part 1 of 2):

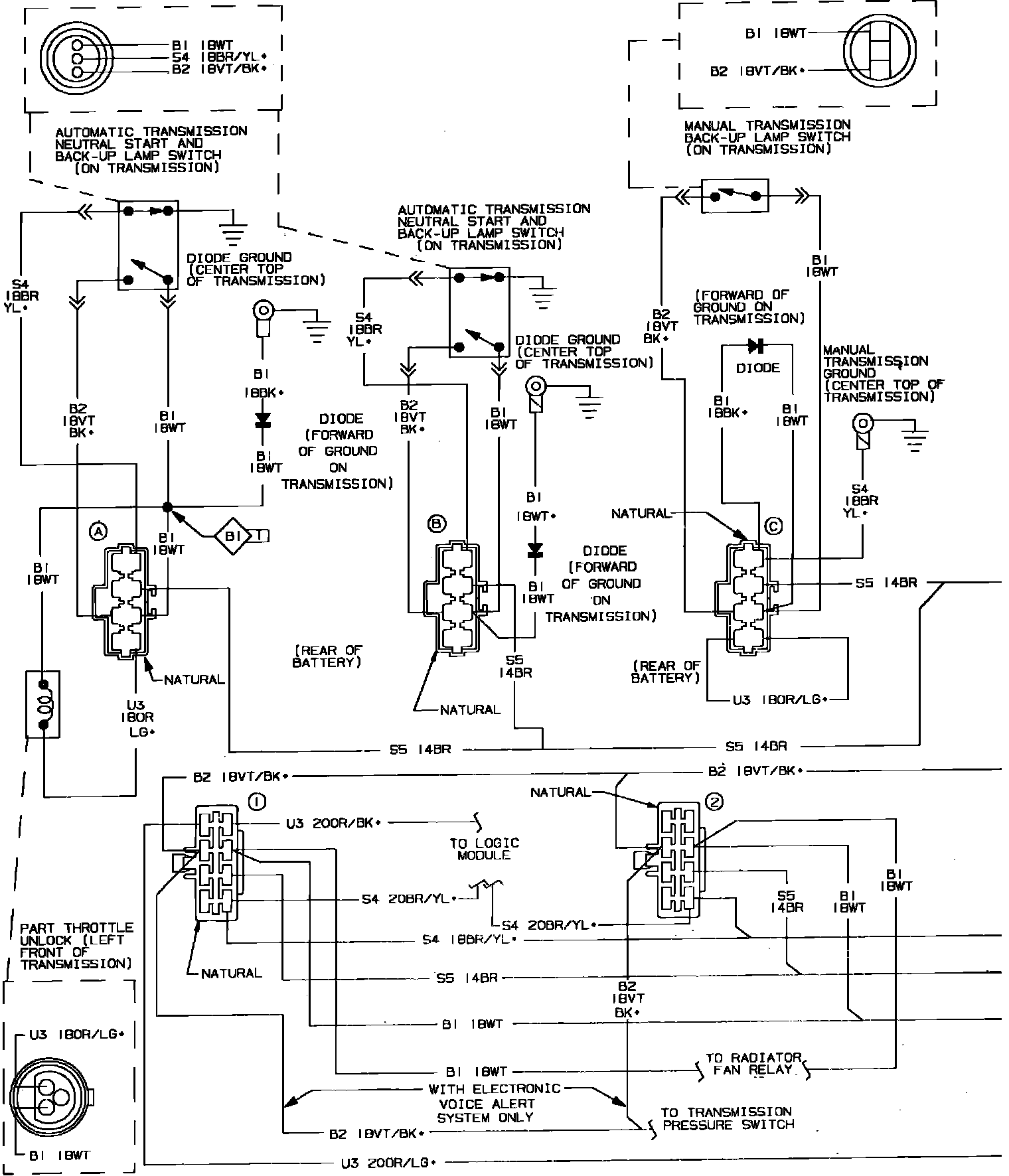

Fig. 59 Starter Wiring Circuit (Part 2 of 2):
