Home >> Chrysler >> 1987 >> Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Speaker >> With Six Speakers, Without Name Brand

With Six Speakers, Without Name Brand

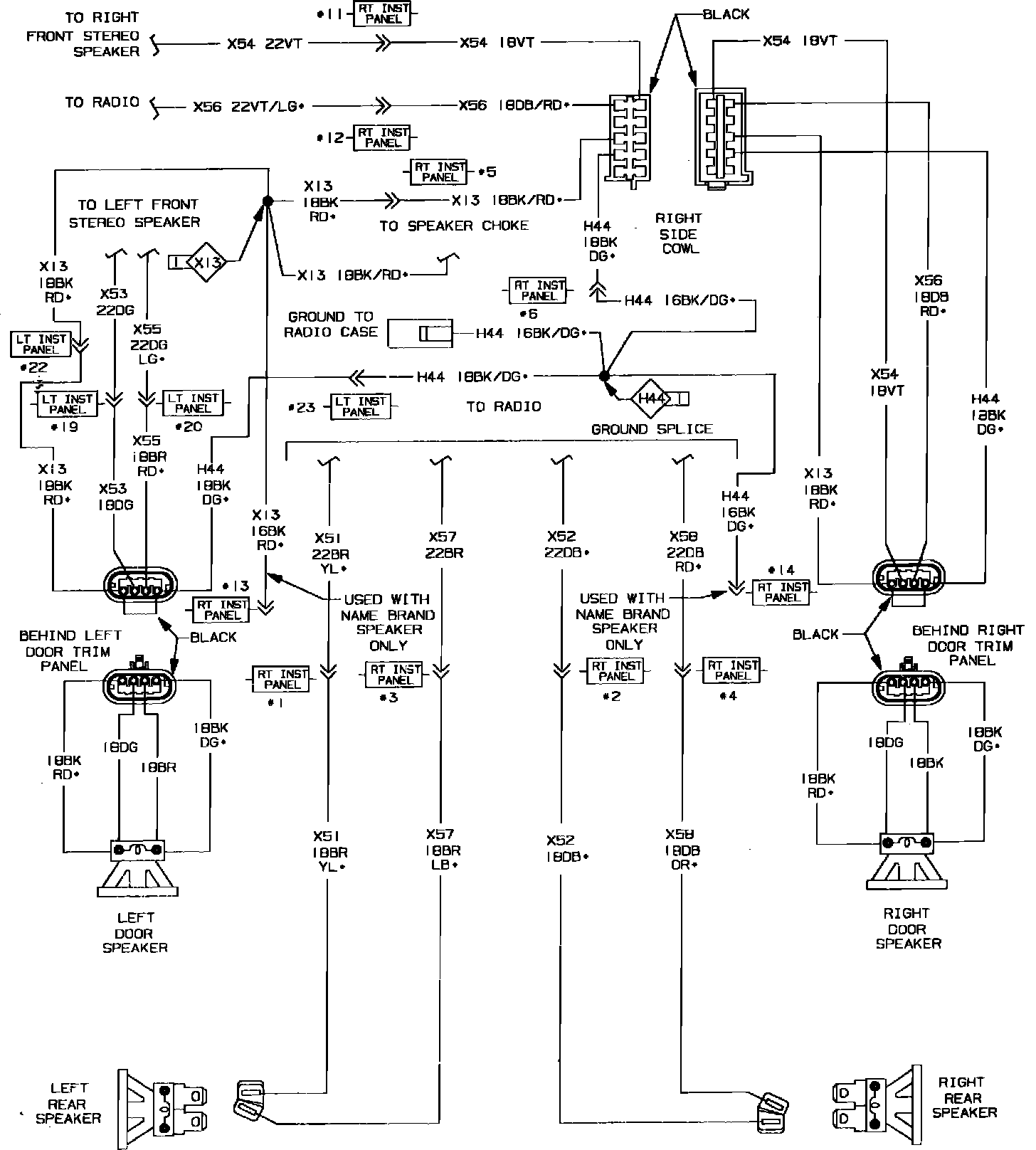

Fig. 52 Radio Speaker Wiring Circuit. Door & Rear, Exc. Name Brand:
