Home >> Chrysler >> 1987 >> Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Speaker >> With Name Brand Speakers

With Name Brand Speakers

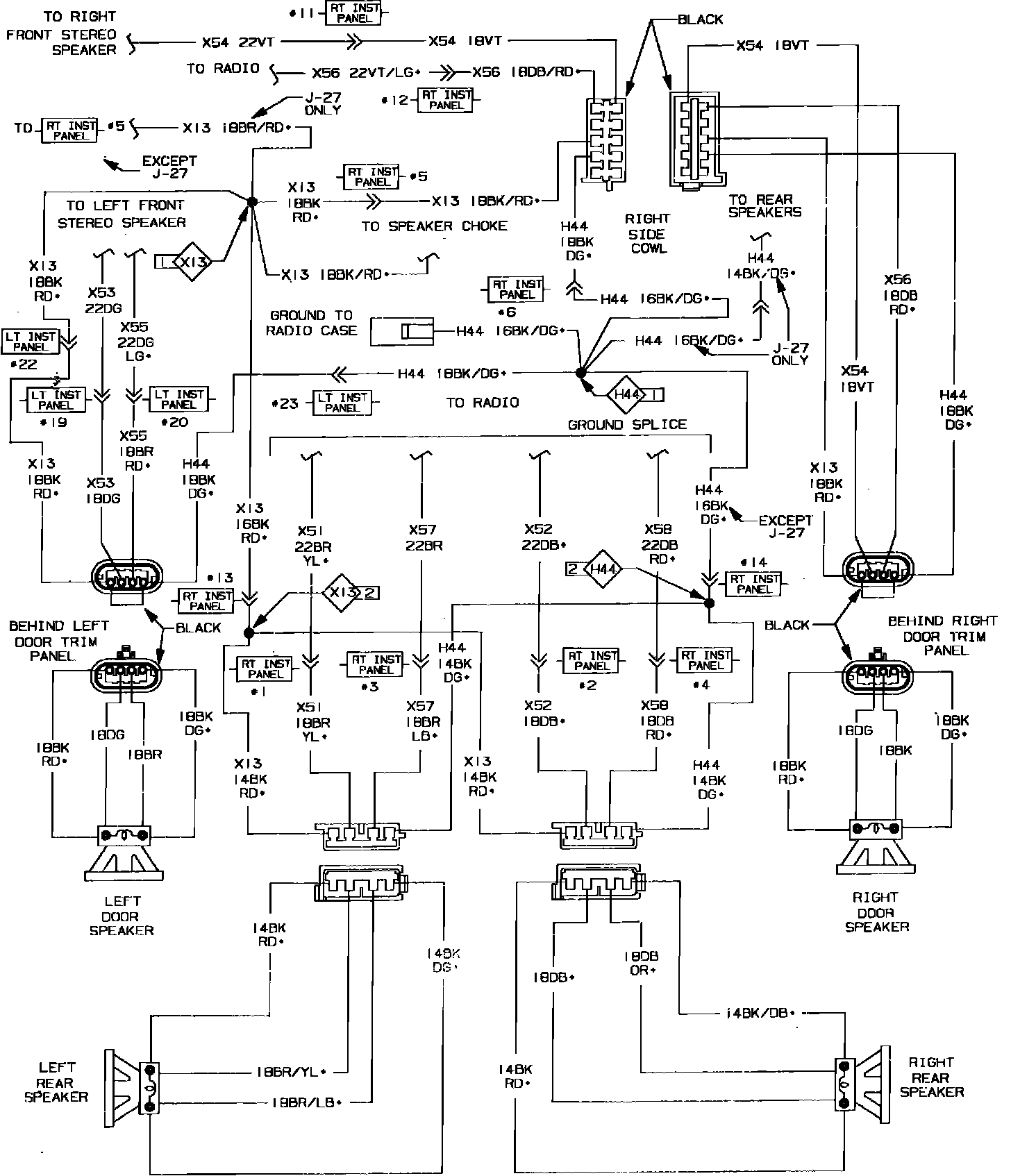

Fig. 54 Radio Speaker Wiring Circuit. Name Brand:
