Home >> Chrysler >> 1987 >> Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Ignition System >> System Diagram >> Ignition Switch/System >> Part 4 of 5

Part 4 of 5

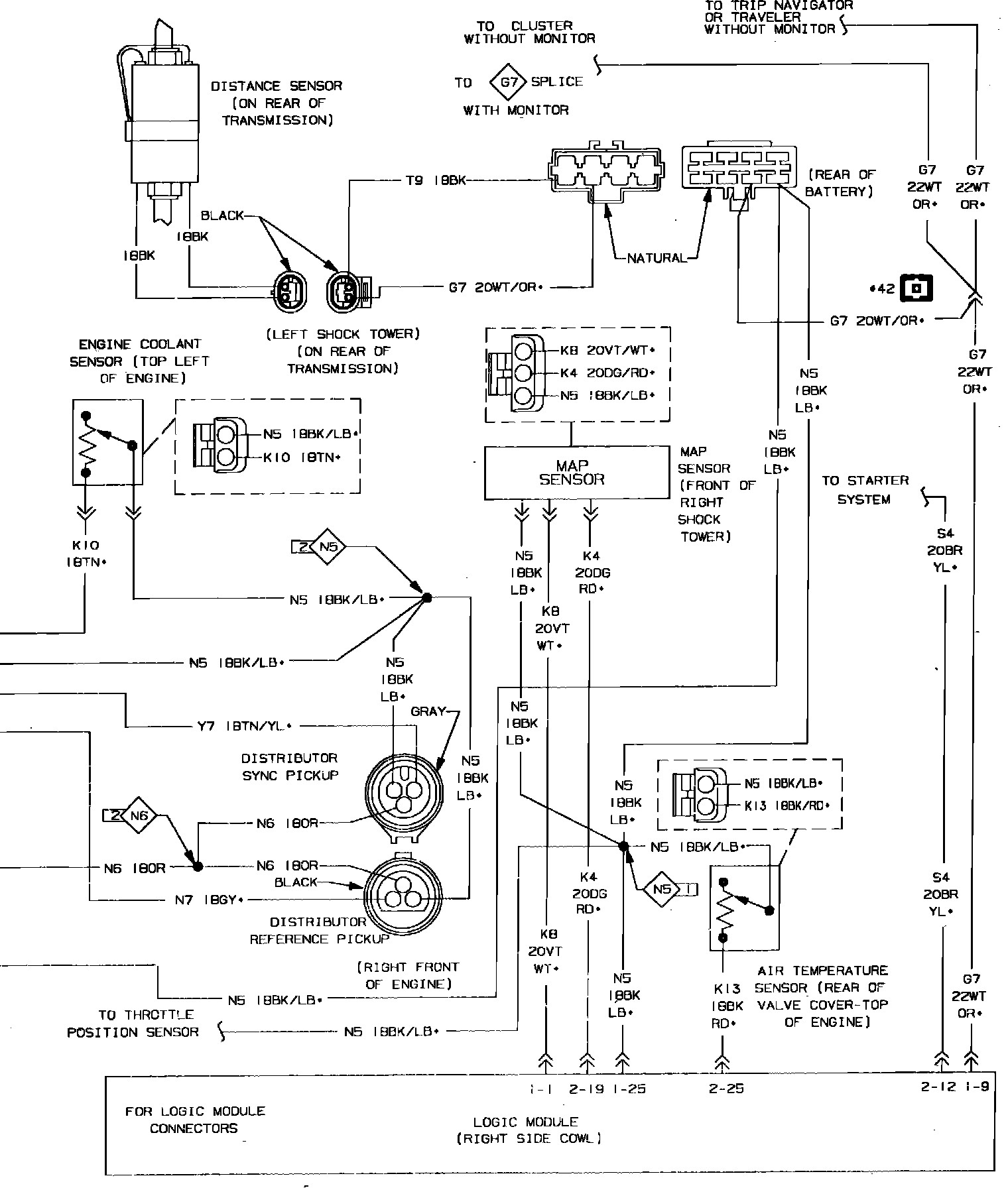

Fig. 42 Ignition System Wiring Circuit (Part 4 of 5). With Turbo:
