Headlamp Switch Controlled Interior Lighting

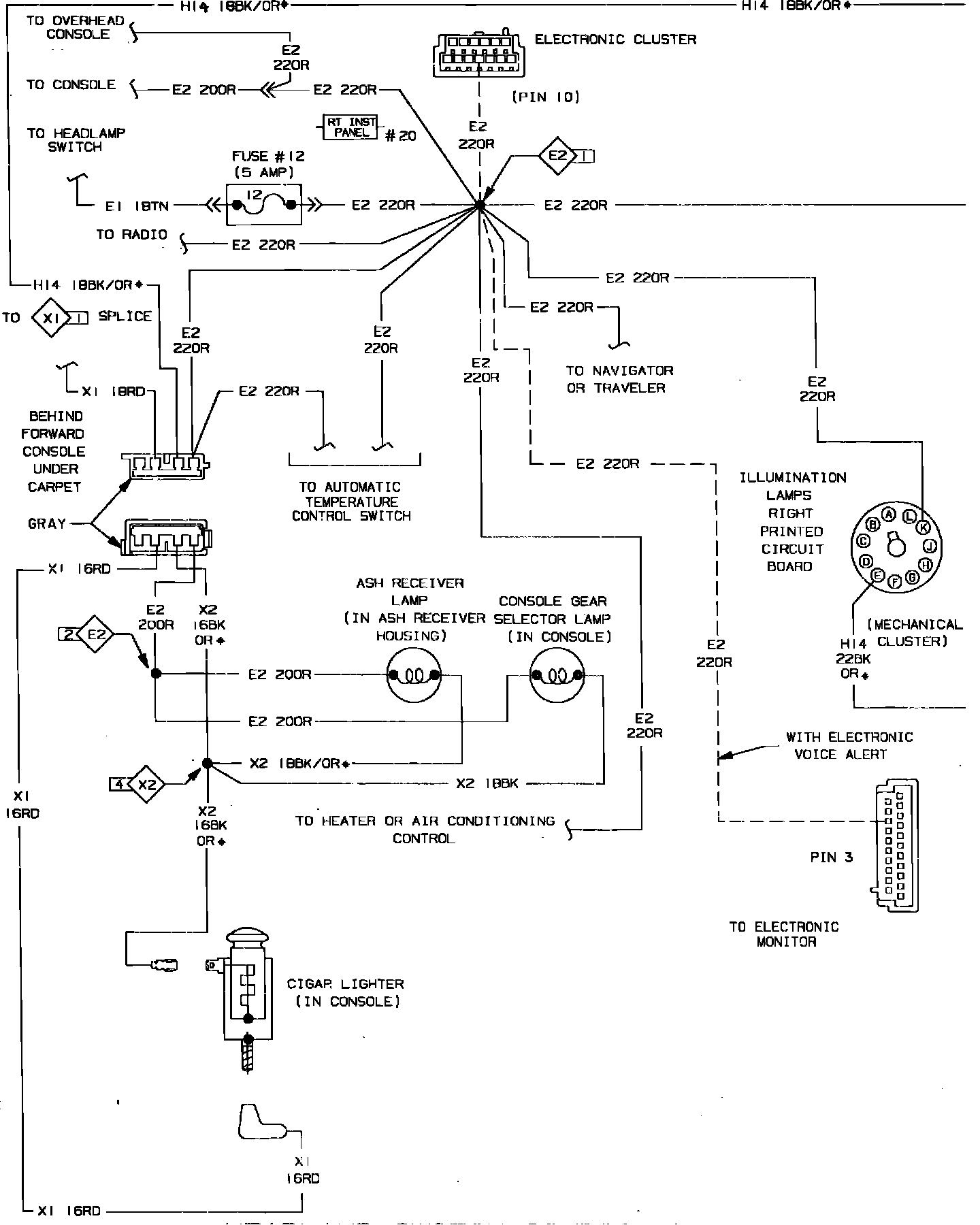

Fig. 37 Headlamp Switch Controlled Interior Lighting & Cigar Lighter Wiring Circuit (Part 1 of 2):

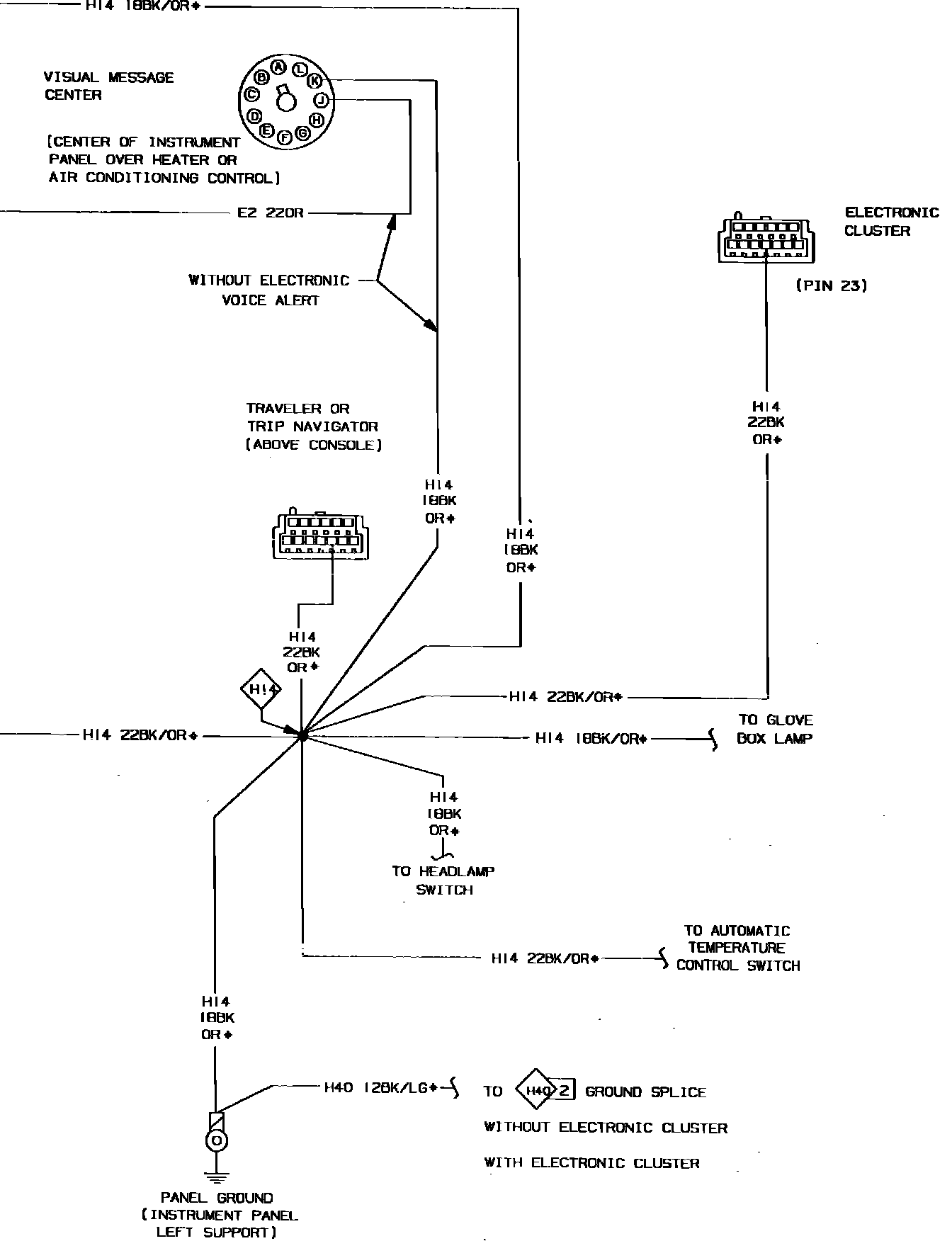

Fig. 37 Headlamp Switch Controlled Interior Lighting & Cigar Lighter Wiring Circuit (Part 2 of 2):
