Stop Lamp High Mount Less Liftgate
Stop Lamp High Mount Less Liftgate

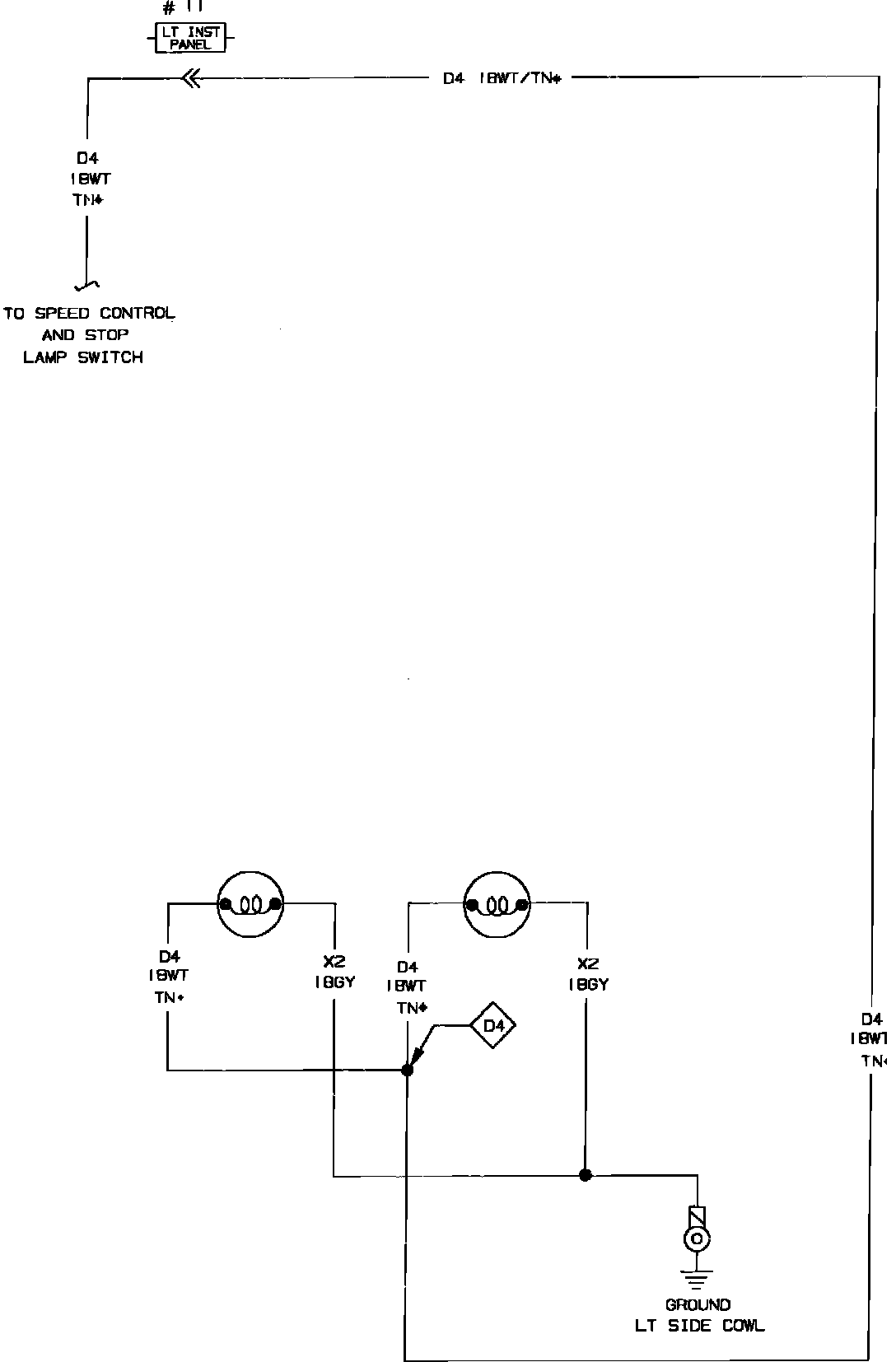

Fig. 60 Stop Lamp (High Mount) Wiring Circuit. Less Liftgate:
