Home >> Chrysler >> 1987 >> Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Instrument Panel Circuit Board >> Part 1 of 2

Part 1 of 2

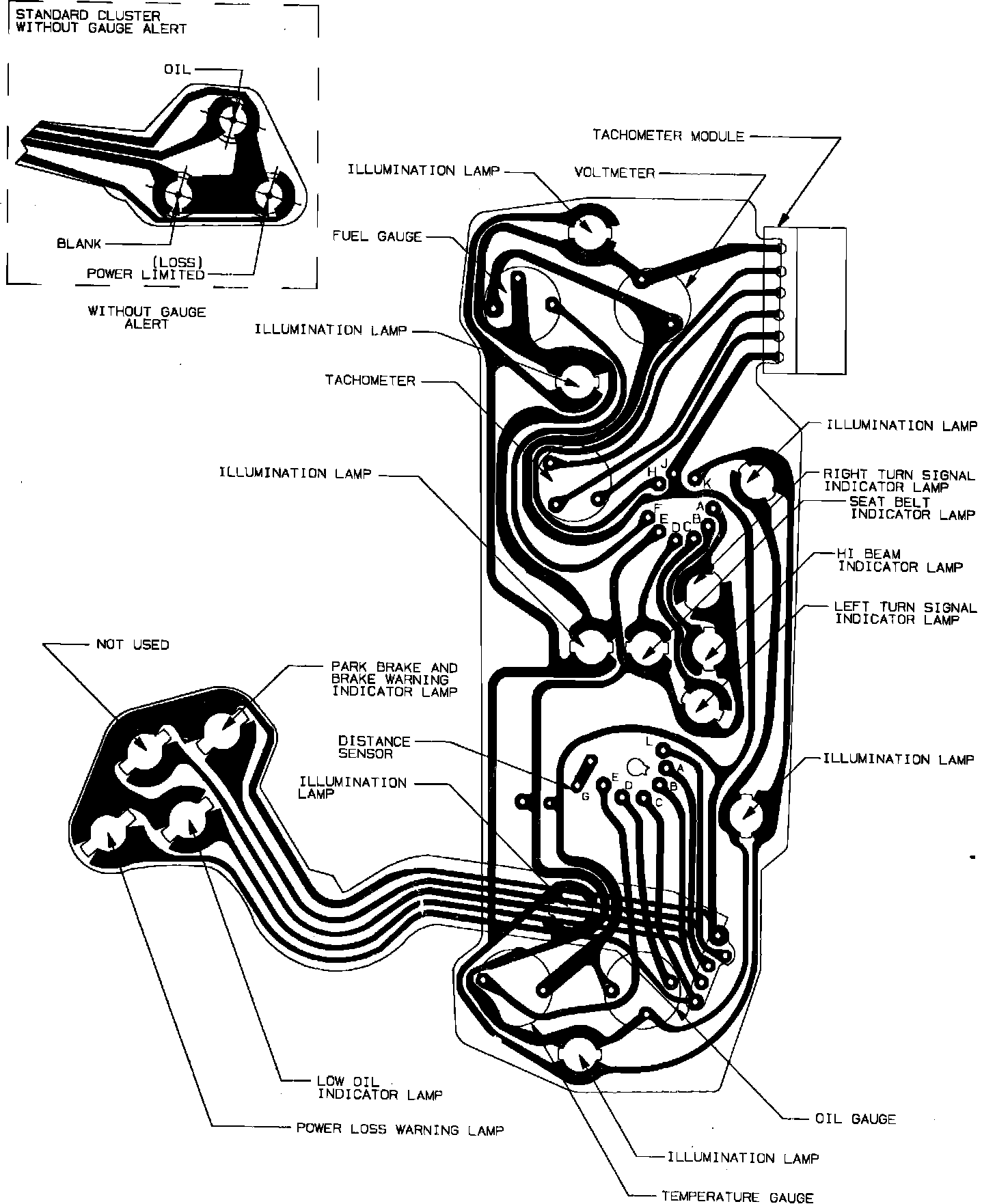

Fig. 3 Printed Circuit Board & Connectors. Mechanical Instrument Cluster (Part 1 of 2):
