Home >> Chrysler >> 1987 >> Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> Driver/Vehicle Information Display >> Visual Message Center >> Part 2 of 2

Part 2 of 2

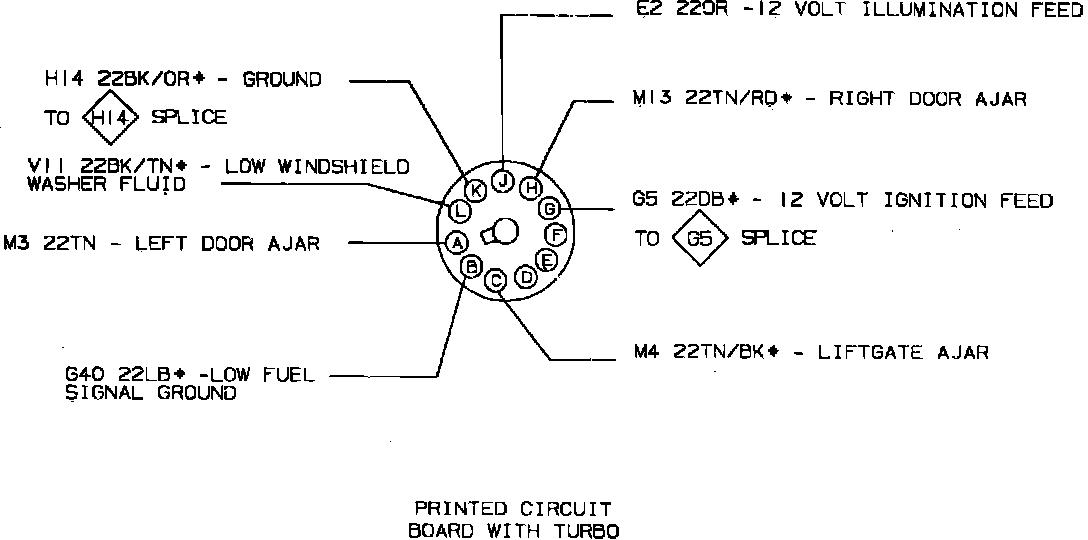

Fig. 4 Printed Circuit Board & Connectors. Message Center W/Turbo (Part 2 of 2):
