Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
Engine Compartment Side
Engine Compartment Side

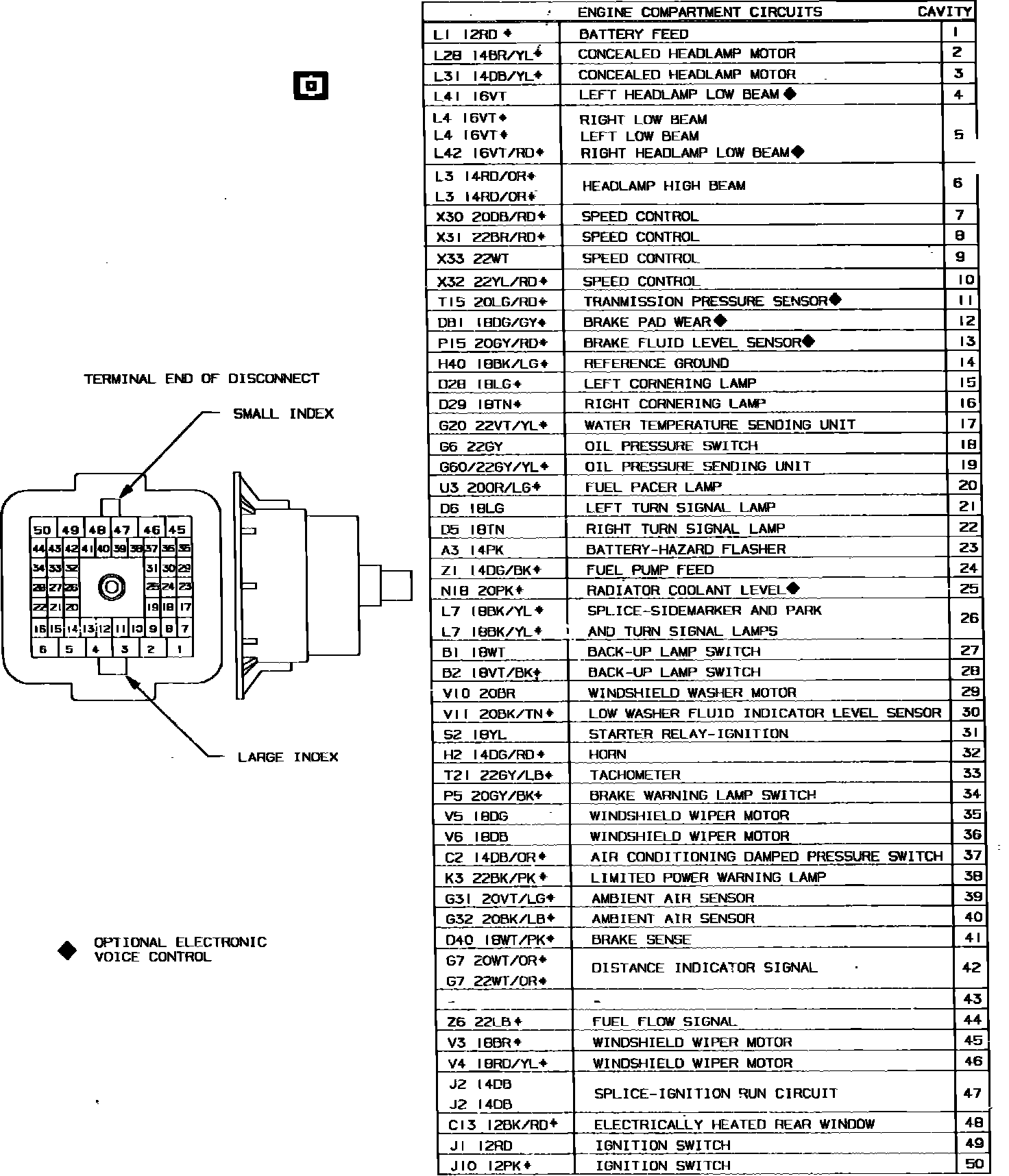

Fig. 9 Bulkhead connector Engine Compartment (Part 1 of 2):
