Home >> Chrysler >> 1987 >> Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Instrument Cluster / Carrier >> System Diagram >> Left Side >> Part 1 of 2

Part 1 of 2

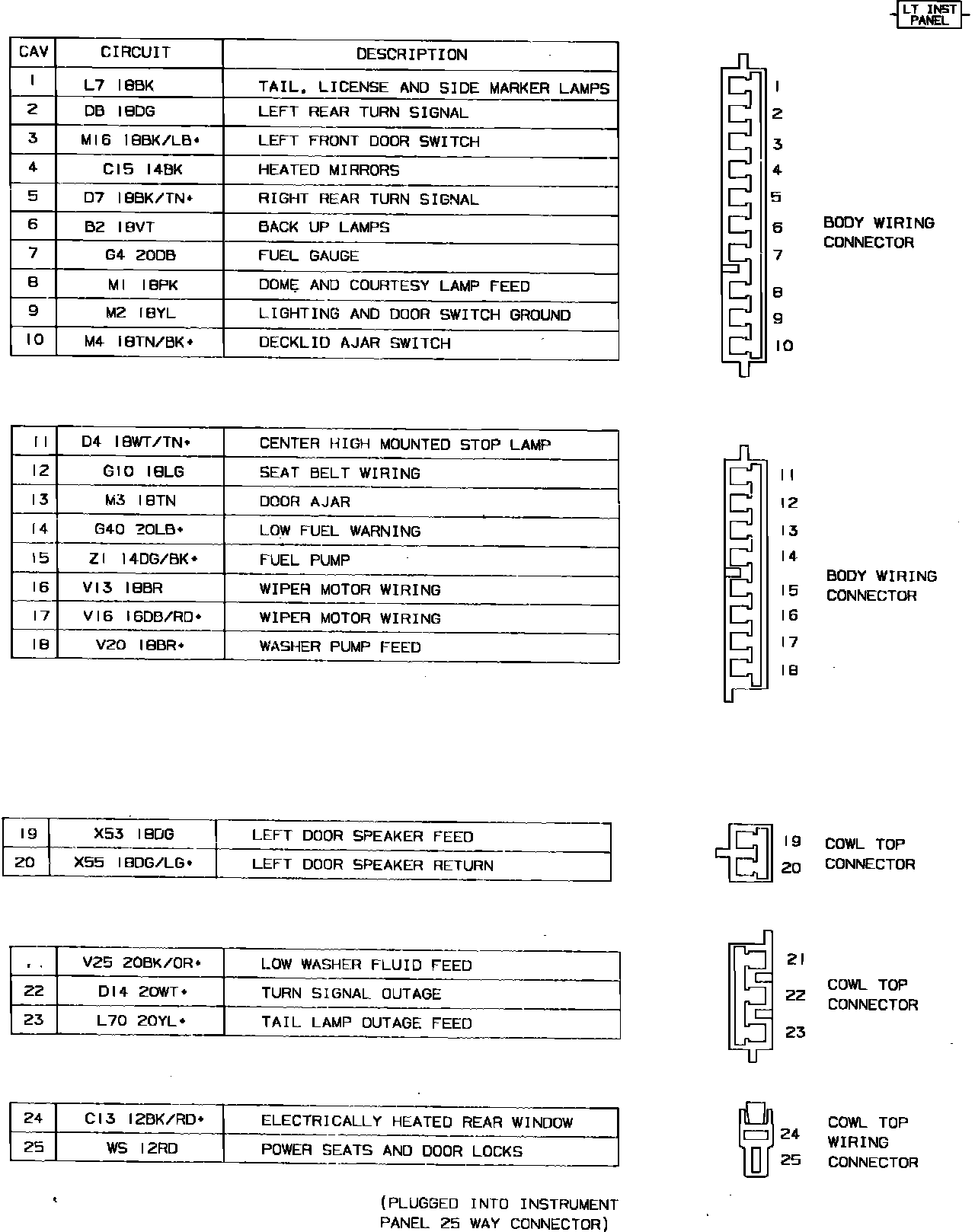

Fig. 7 Body To Instrument Panel Connector. Left Side (Part 1 of 2):
