SC-2E S/C Vacuum Solenoid to the Logic Module
SC-2E S/C Vacuum Solenoid to the Logic Module

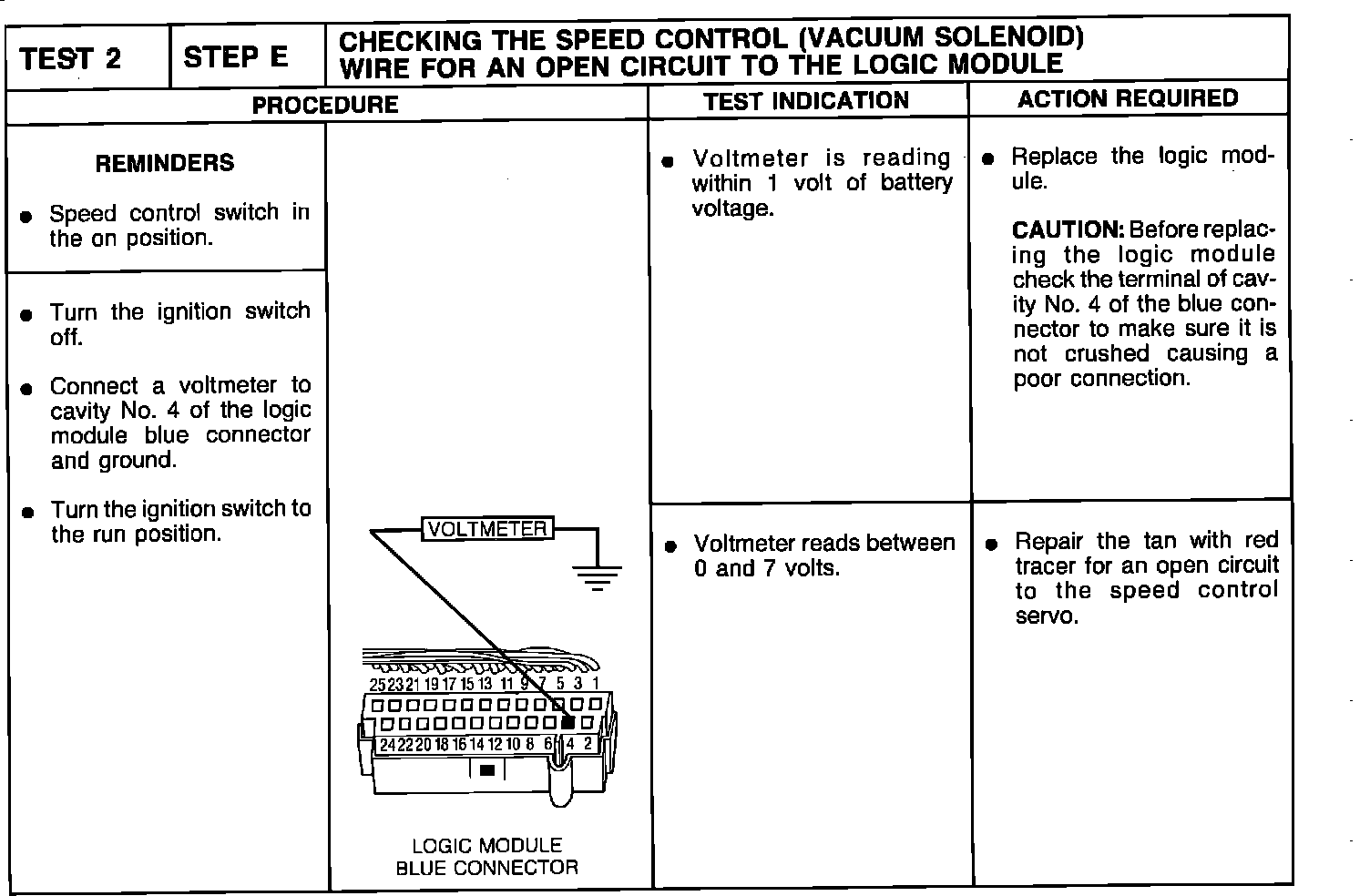

Test 2-Step E, S/C Vacuum Solenoid To The Logic Module:
