Home >> Chrysler >> 1987 >> Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Speed Control (SC) Tests >> SC-2C S/C Vent Solenoid Control Wire

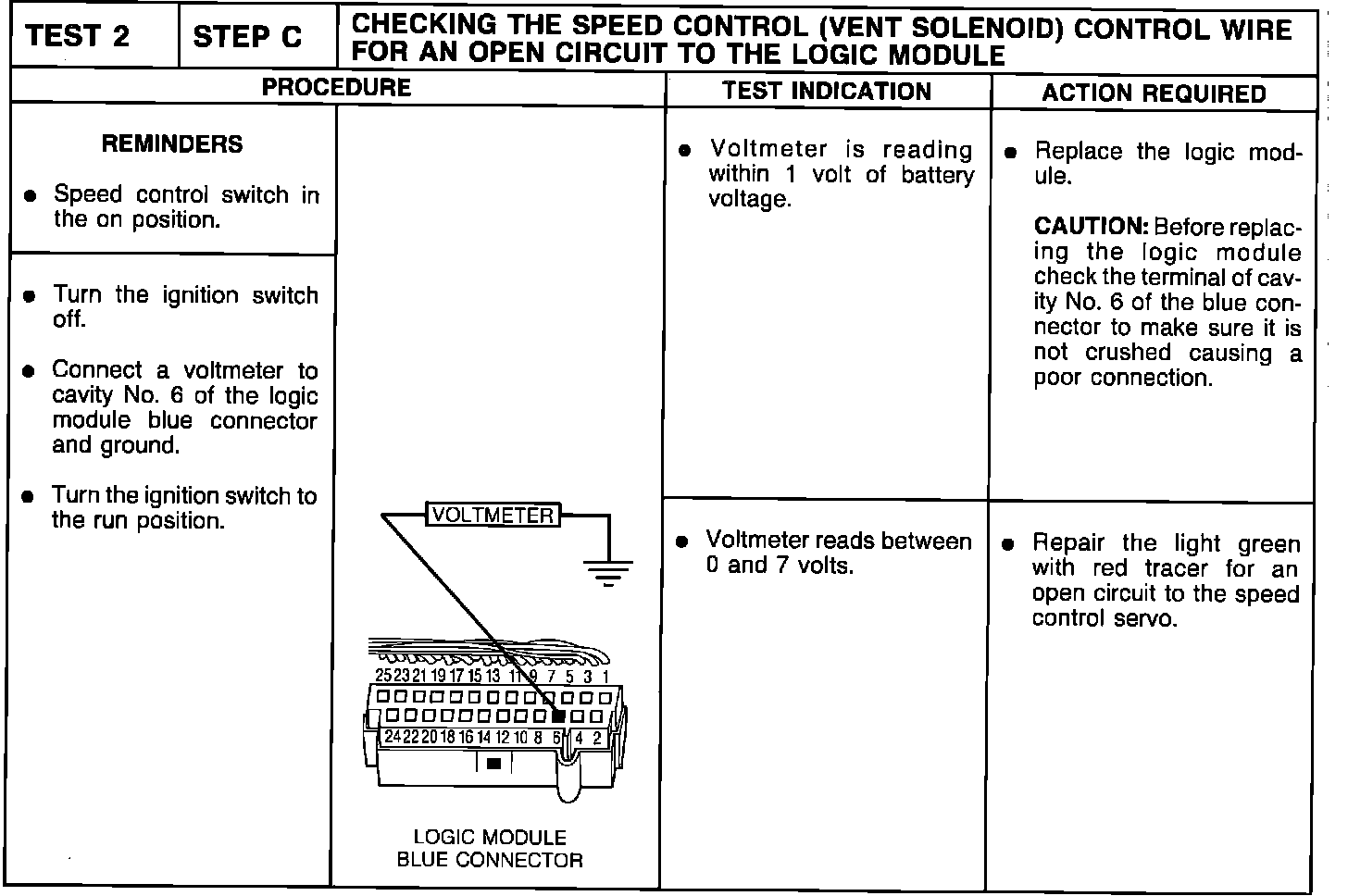

SC-2C S/C Vent Solenoid Control Wire

Test 2-Step C, S/C Vent Solenoid Control Wire:
