Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Cruise Control
>>
3A Servo Ground Circuit
3A Servo Ground Circuit

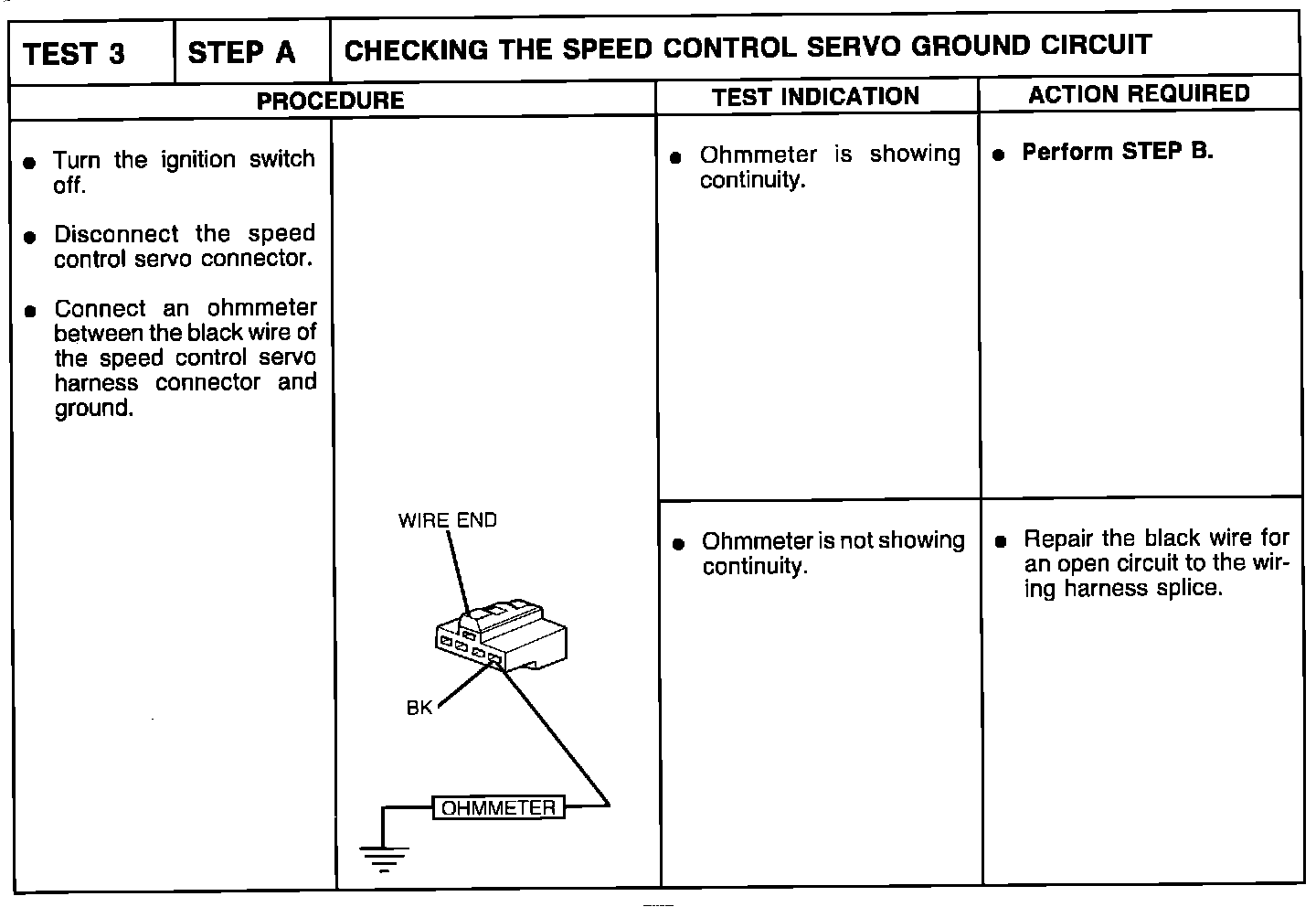

Test 3-Step A, S/C Servo Ground Circuit:
