Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Charging System (CH) Tests
>>
CH-6C Battery Temperature Sensor Wire
CH-6C Battery Temperature Sensor Wire

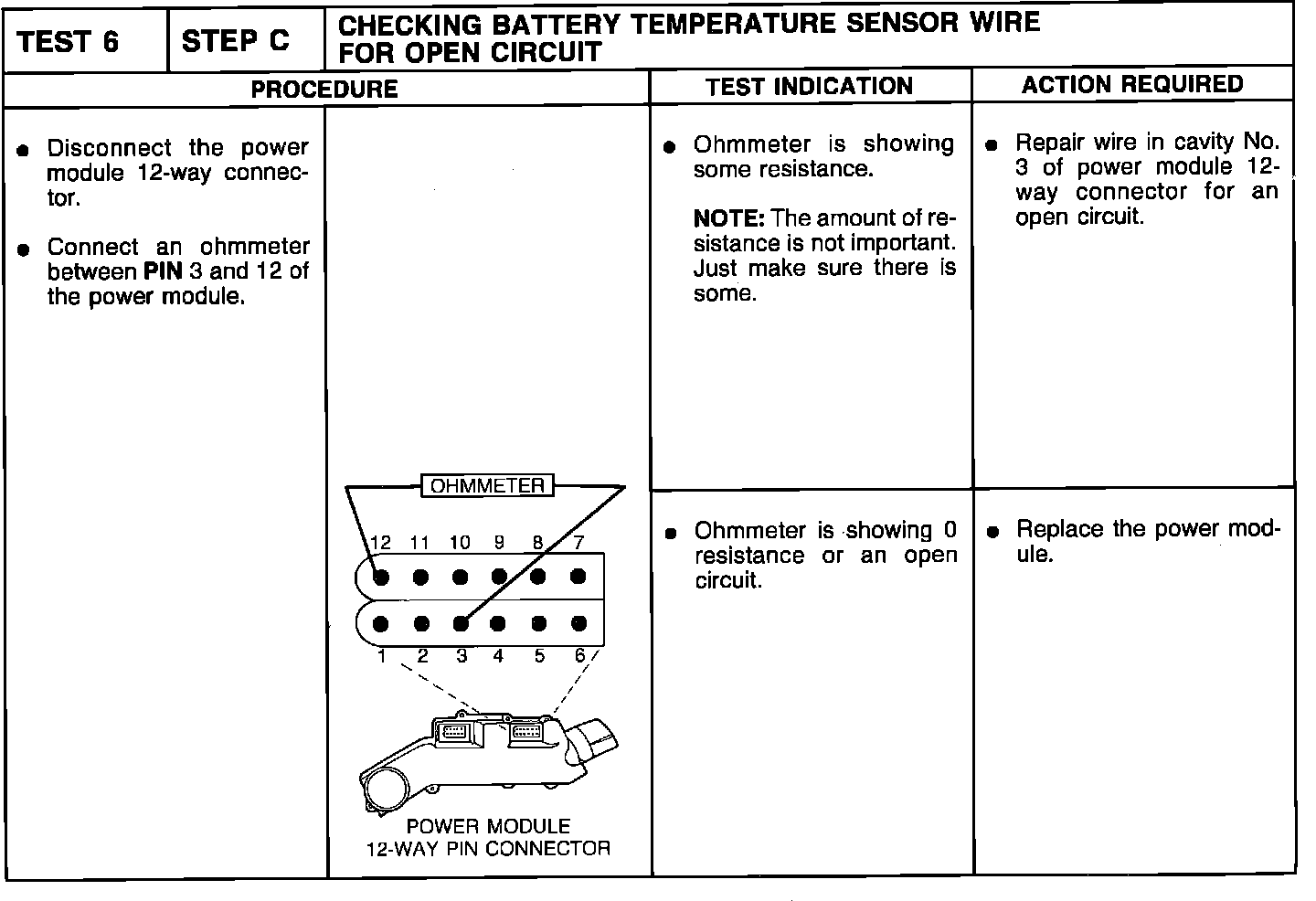

Test 6-Step C, Battery Temperature Sensor Wire:
