CH-6B Battery Temperature Sensor Wire
CH-6B Battery Temperature Sensor Wire

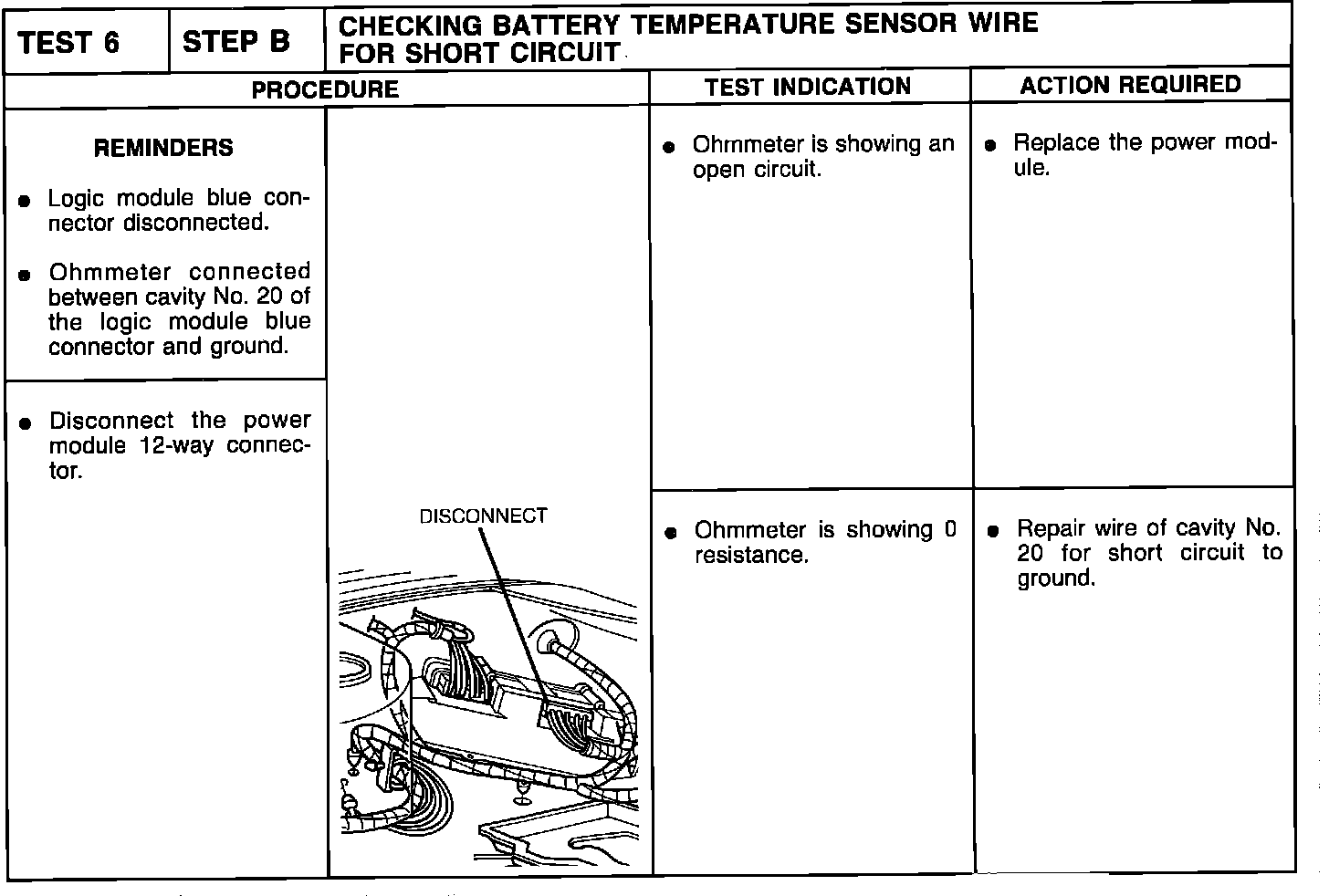

Test 6-Step B, Battery Temperature Sensor Wire:
