Home >> Chrysler >> 1987 >> Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Charging System (CH) Tests >> CH-6A Fault Code 44 Battery Temperature

CH-6A Fault Code 44 Battery Temperature

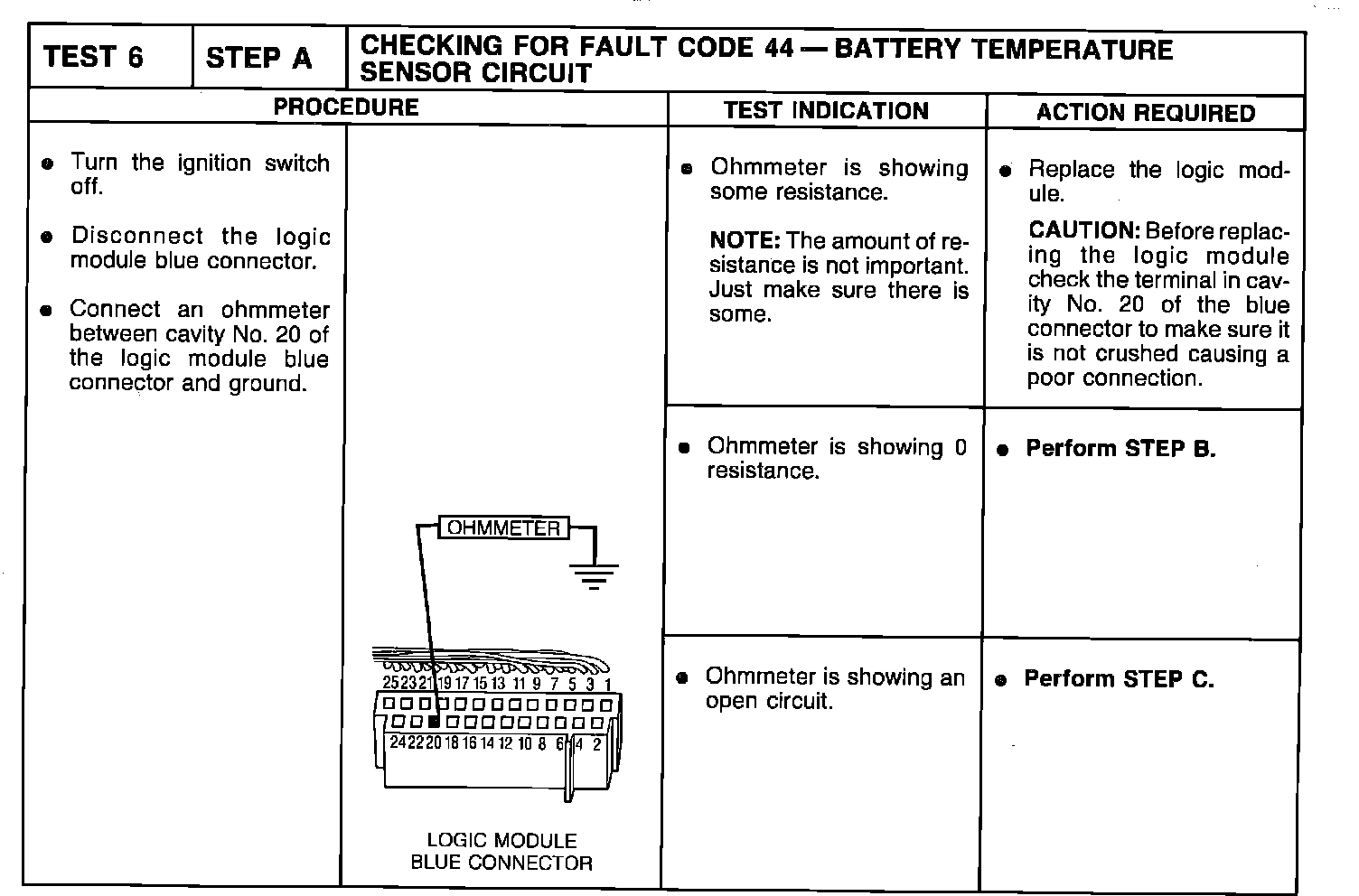

Test 6-Step A, Fault Code 44 - Battery Temperature:
