CH-5D Field Control Circuit of the Power Module

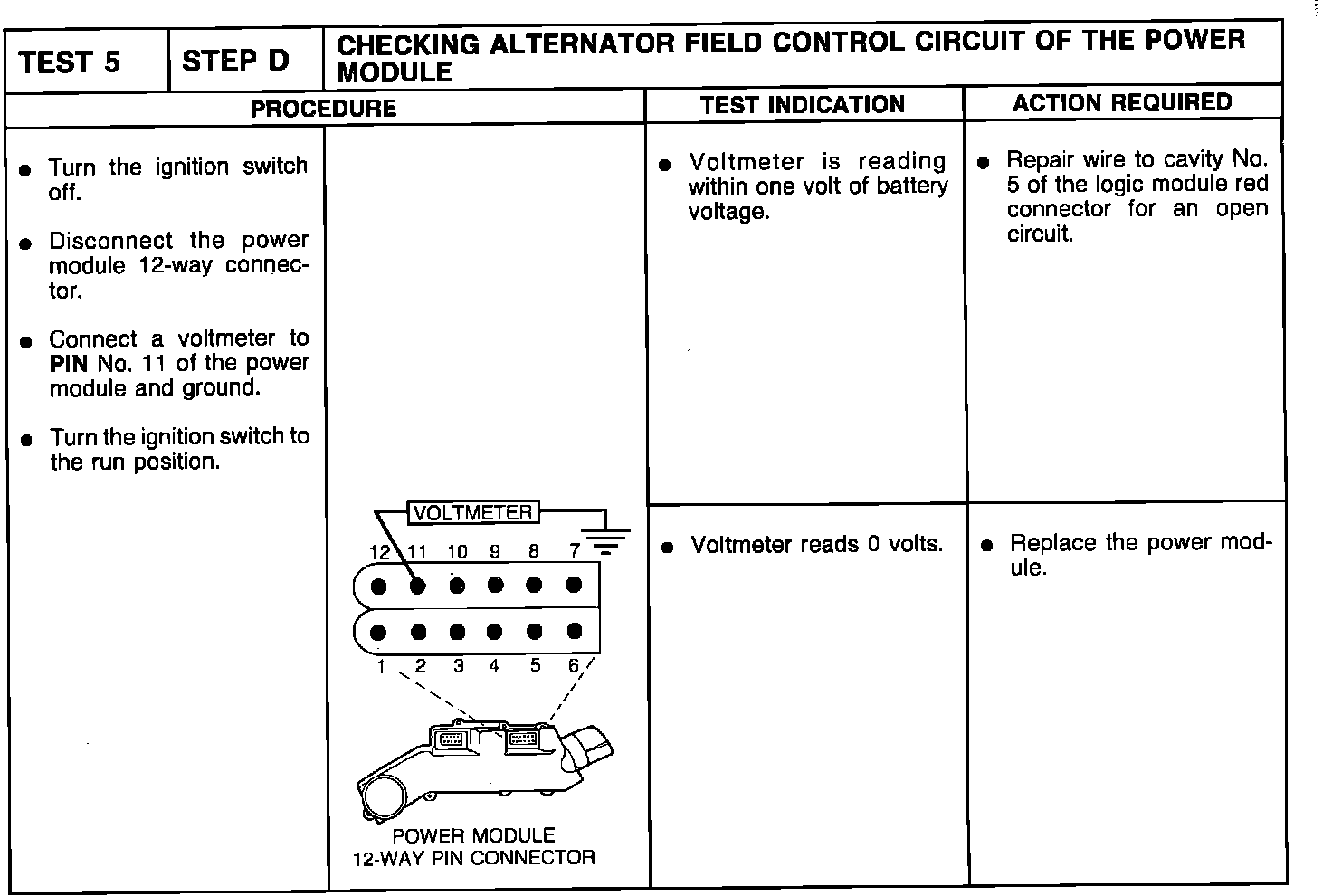

Test 5-Step D, Field Control Circuit Of The Power Module:
