CH-5B Field Control Circuit at the Logic Module

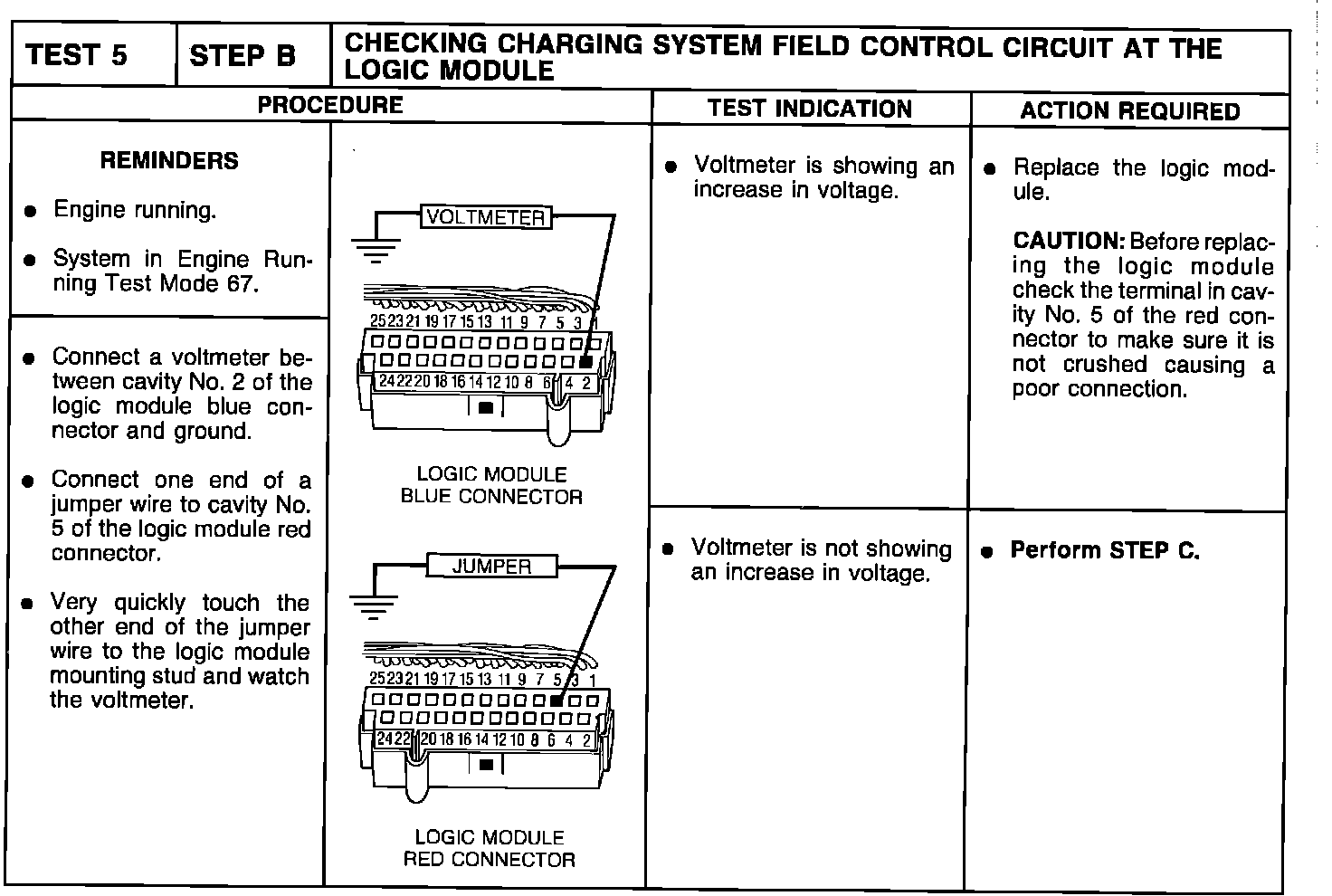

Test 5-Step B, Field Control Circuit At The Logic Module:
