CH-5A Fault Code 41 or 41-47 or 47 Alternator Field
CH-5A Fault Code 41 or 41-47 or 47 Alternator Field

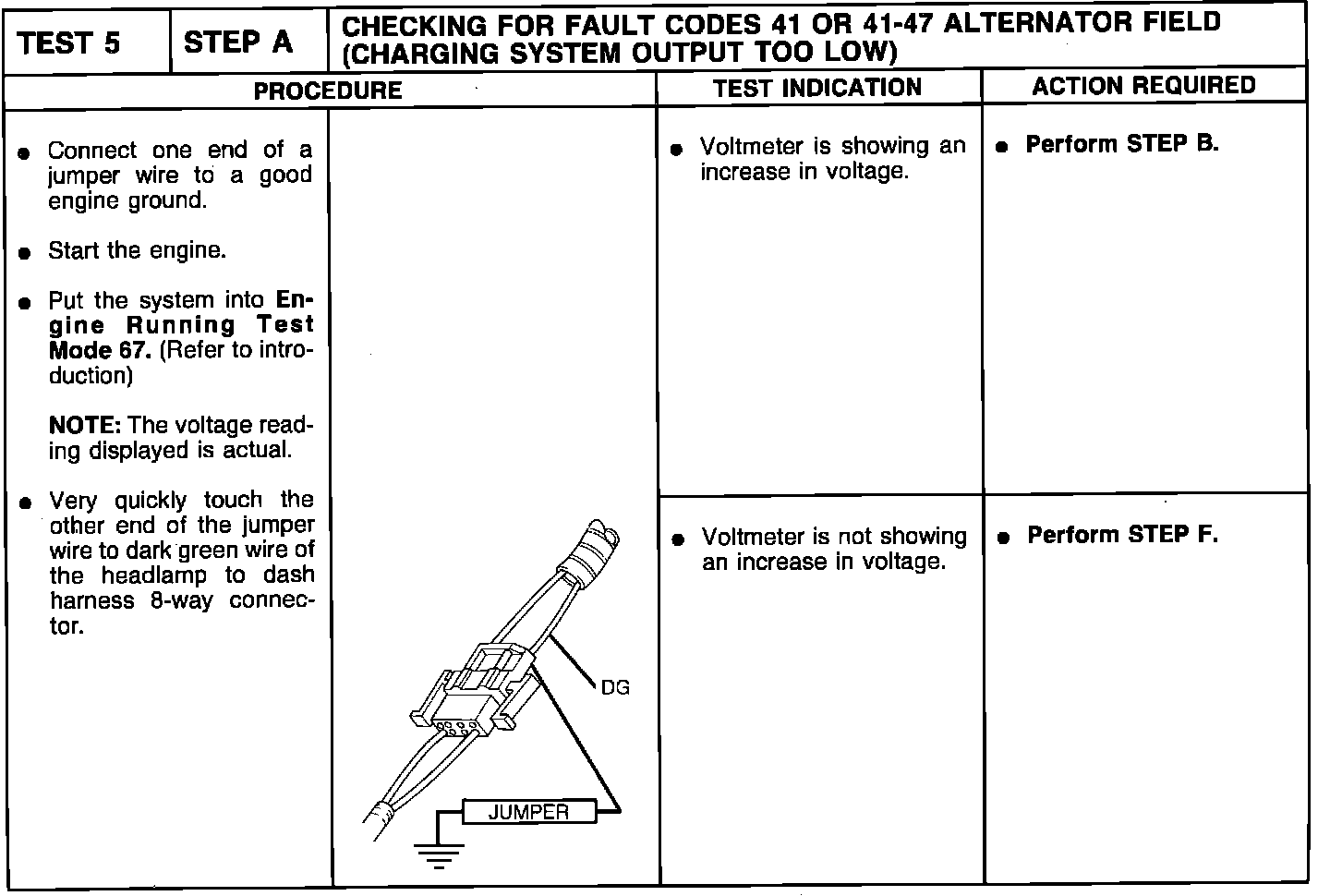

Test 5-Step A, Fault Code 41 or 41-47 - Alternator Field:
