CH-4B Alternator Field Control to the Power Module

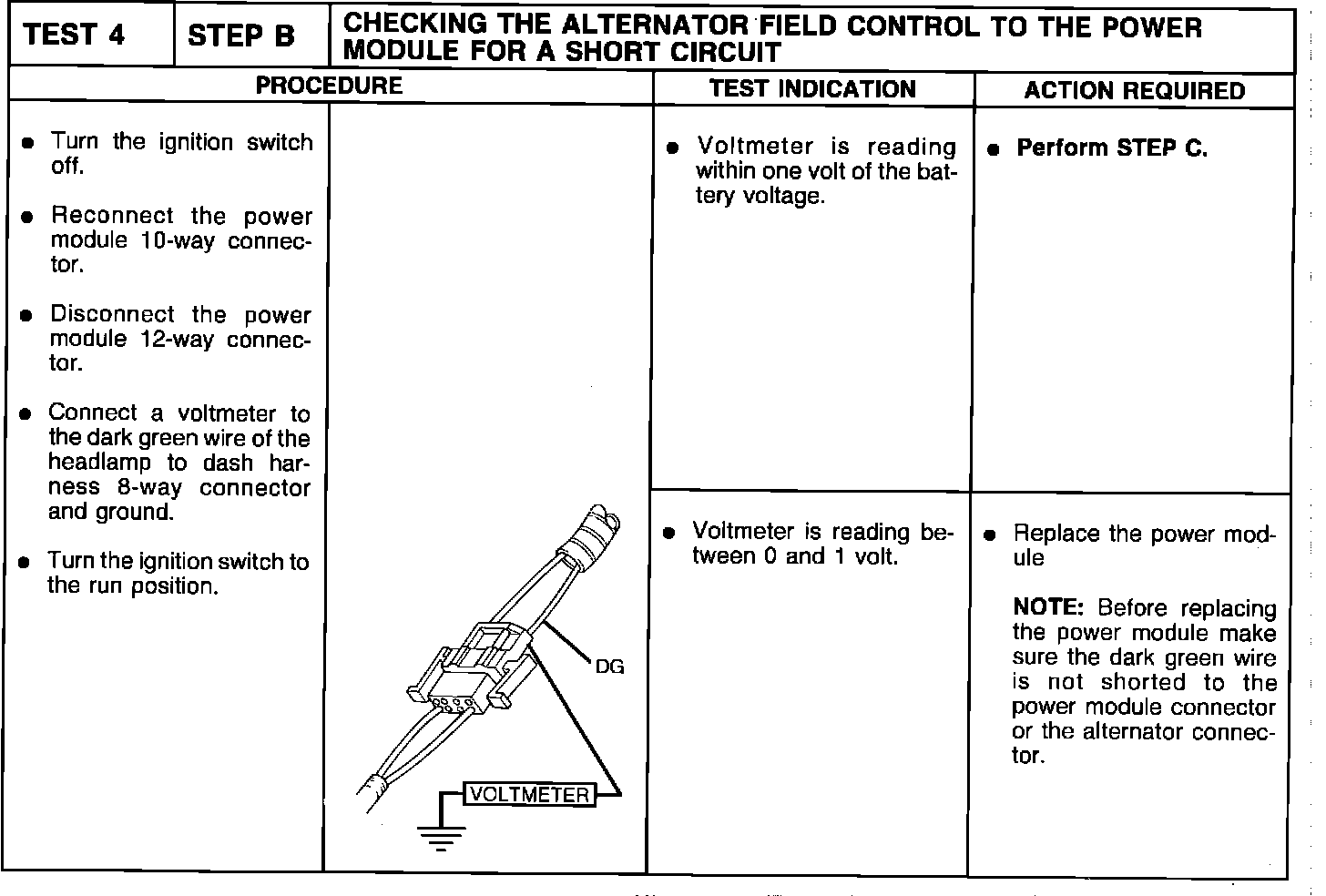

Test 4-Step B, Alternator Field Control To The Power Module:
