Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Charging System (CH) Tests
>>
CH-1B Checking For Intermittent Failures
CH-1B Checking For Intermittent Failures

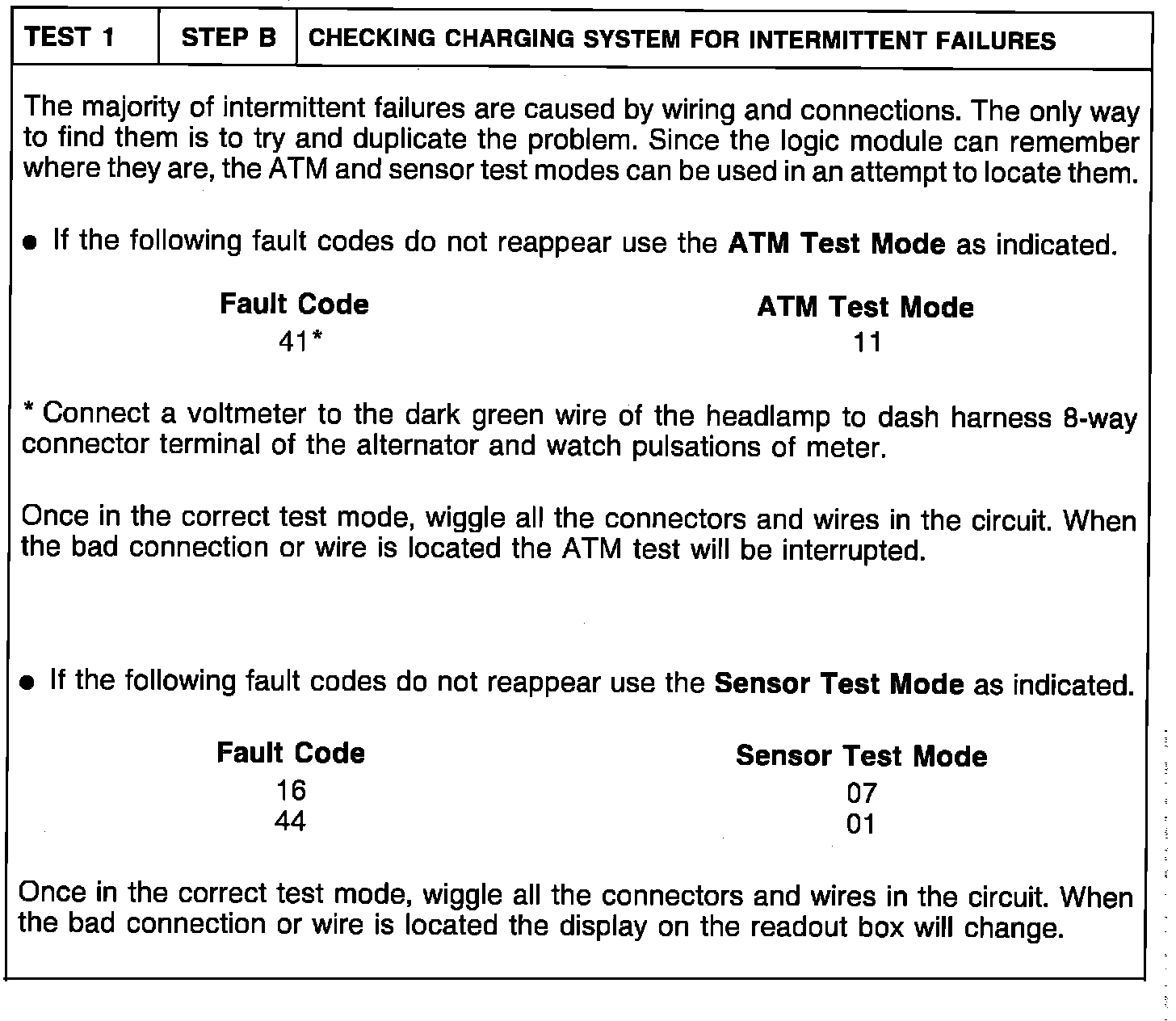

Test 1-Step B, Check Charging System For Intermittent Failures:
*** UPDATED BY TSB #18-61-86
