Home >> Chrysler >> 1987 >> Conquest L4-2555cc 2.6L Turbo VIN H FI >> Repair and Diagnosis >> Windows and Glass >> Heated Glass Element >> Diagrams >> Electrical Diagrams

Electrical Diagrams

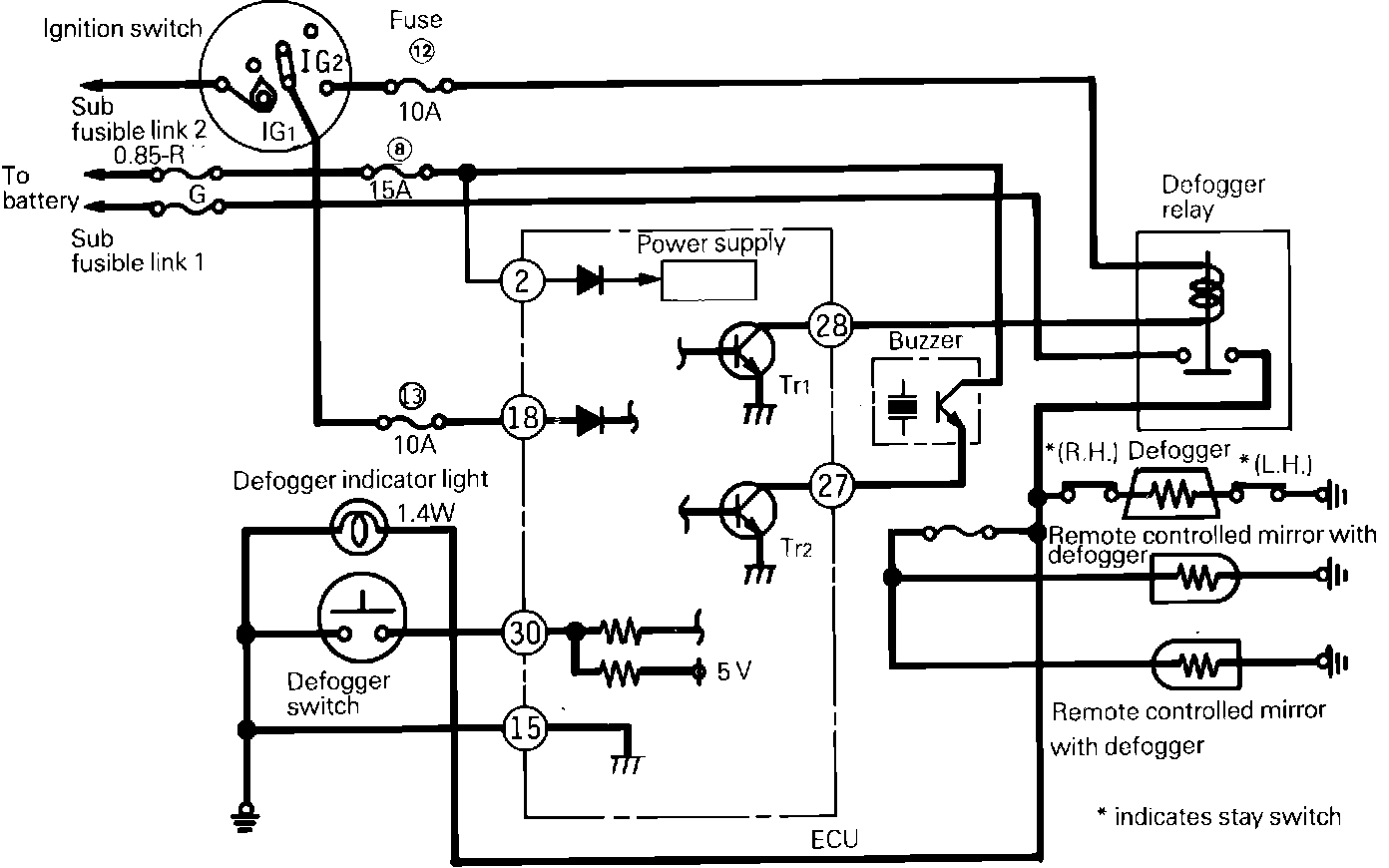

Defogger Timer Wiring Circuit:

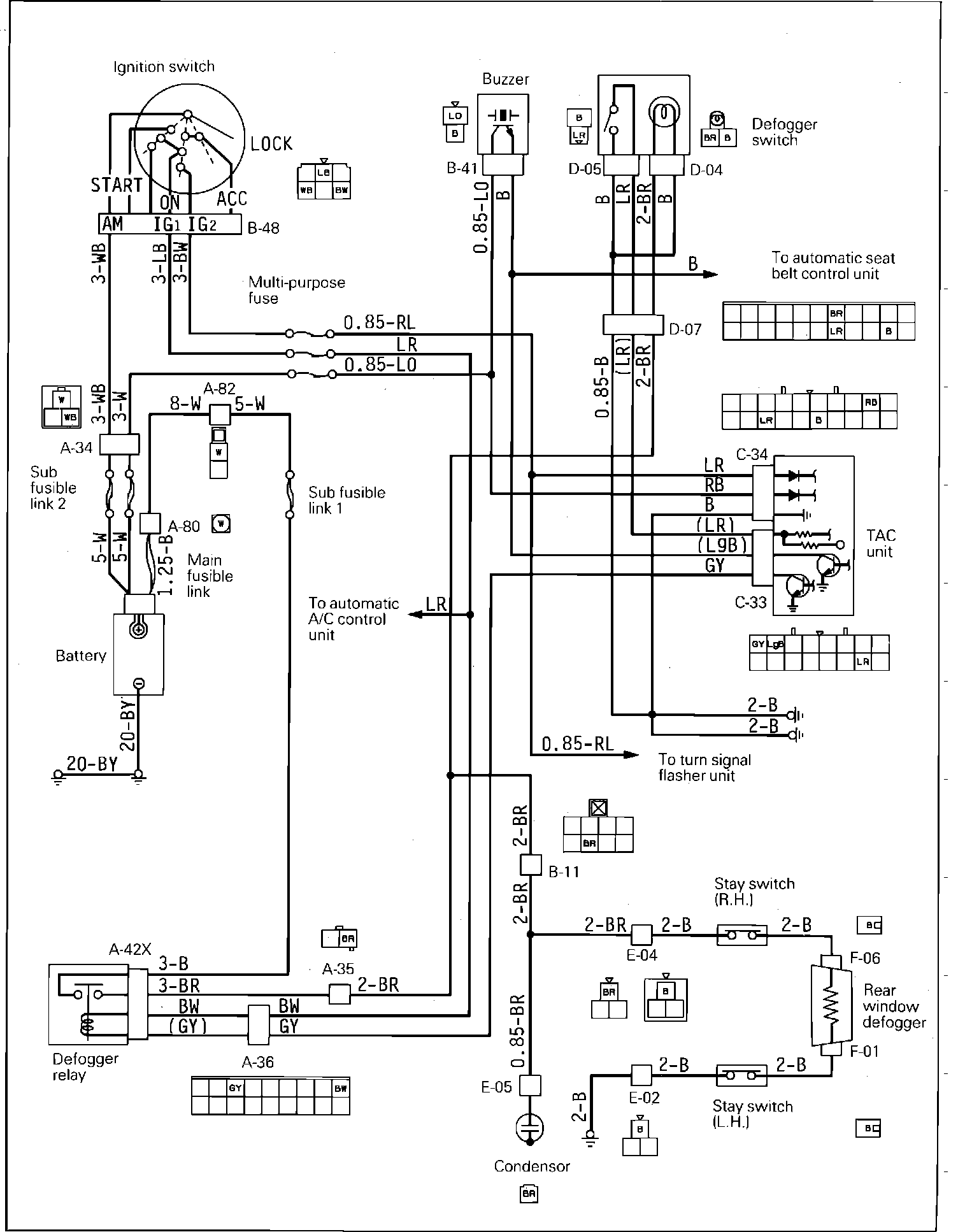

Rear Window Defogger Wiring Circuit:
