Home >> Chrysler >> 1987 >> Conquest L4-2555cc 2.6L Turbo VIN H FI >> Repair and Diagnosis >> Transmission and Drivetrain >> Manual Transmission/Transaxle >> Specifications >> Mechanical Specifications >> Clearance and Design Specifications

Clearance and Design Specifications

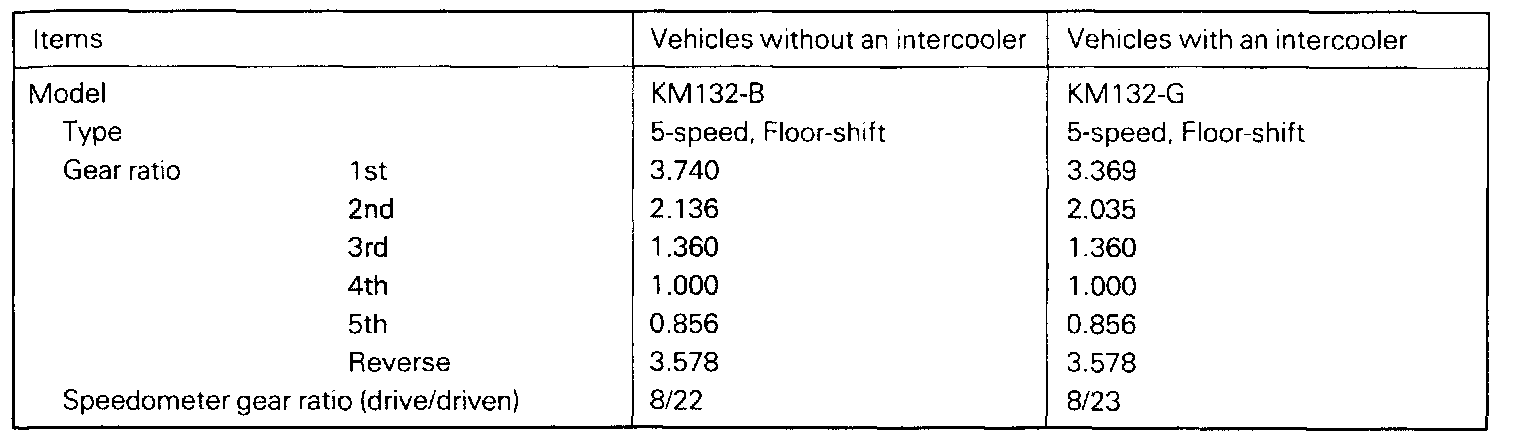

General Specifications:

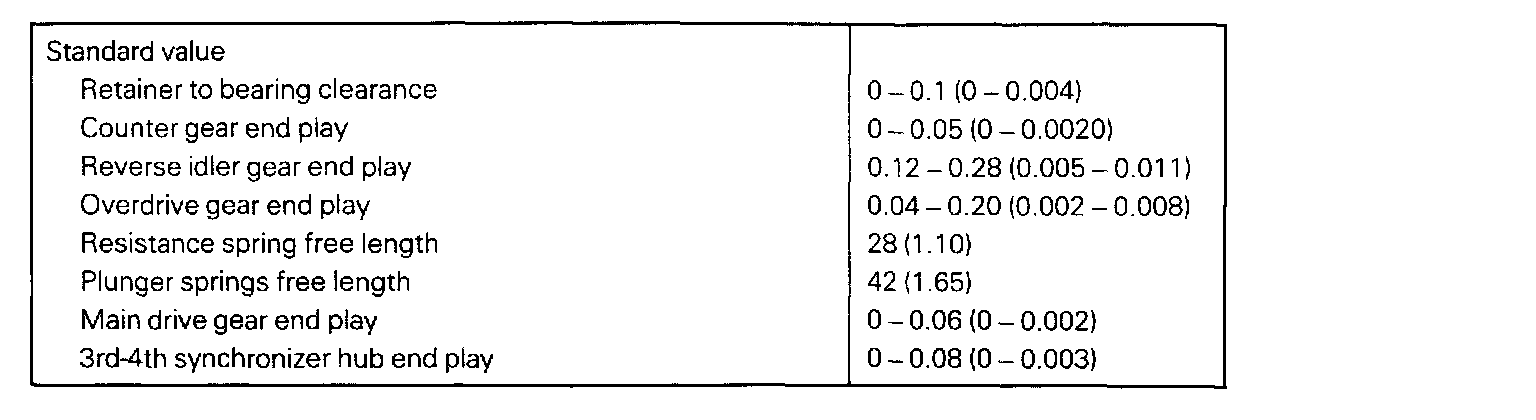

Service Specifications:

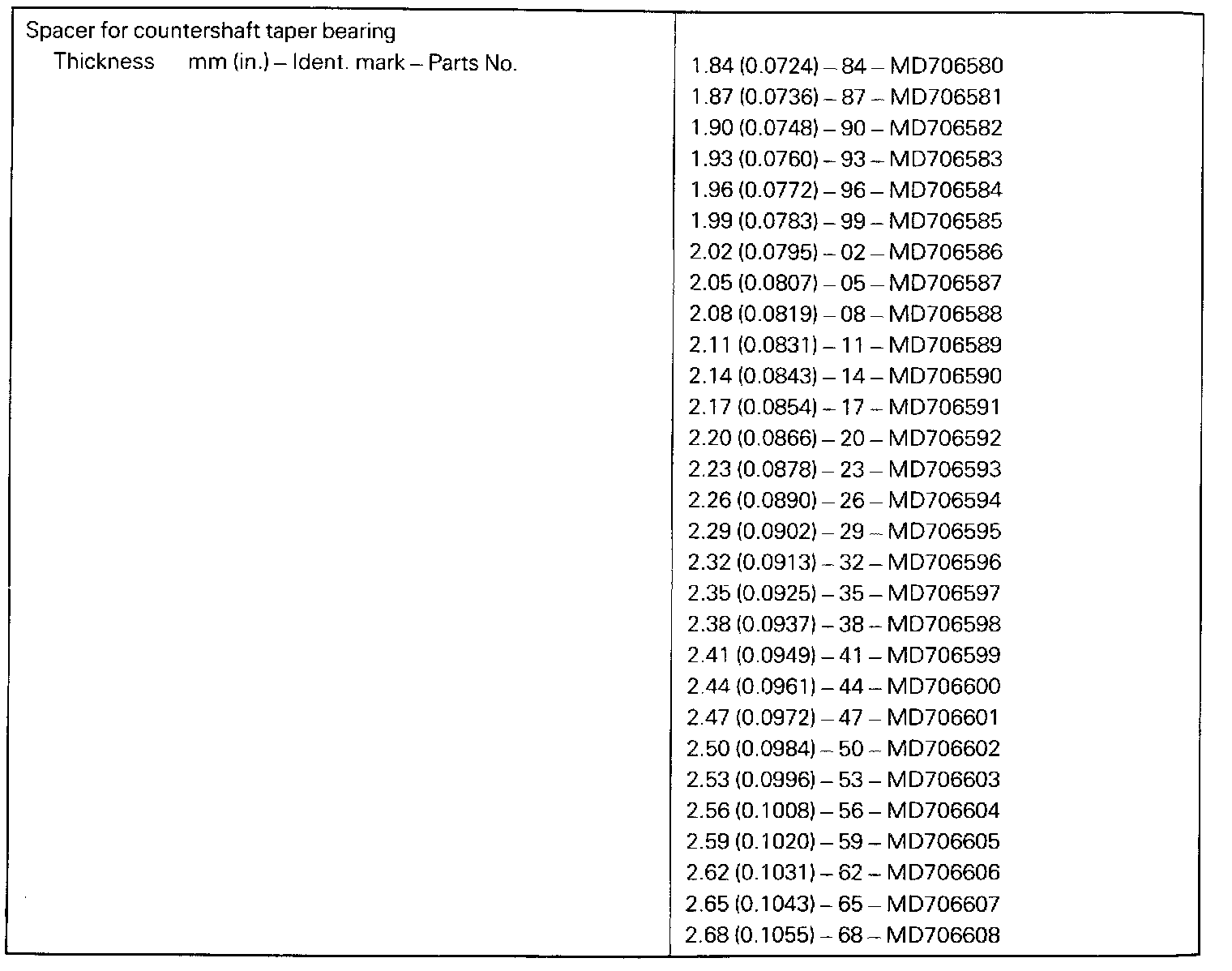

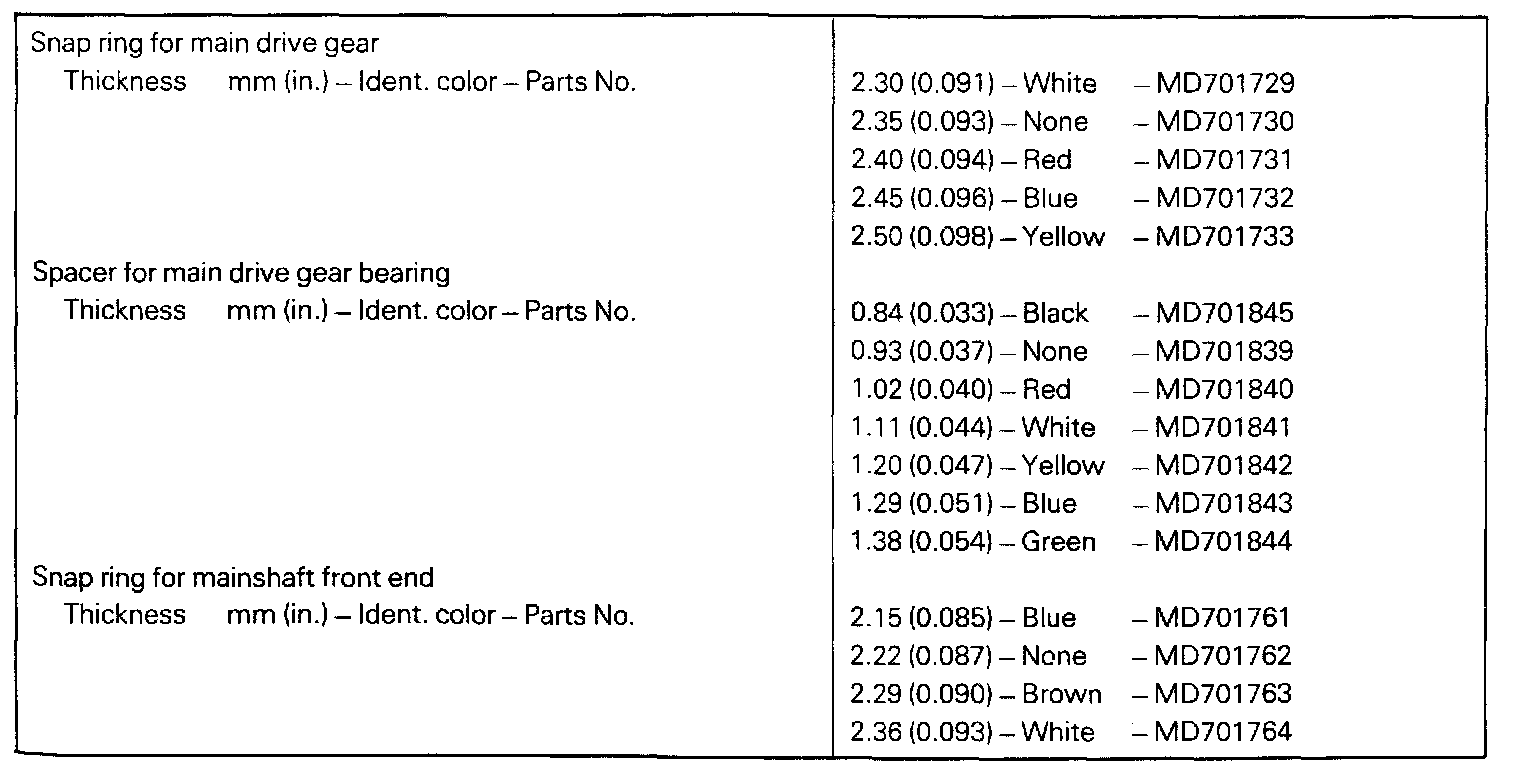

Adjustment Spacer And Snap Ring List:




Continued:

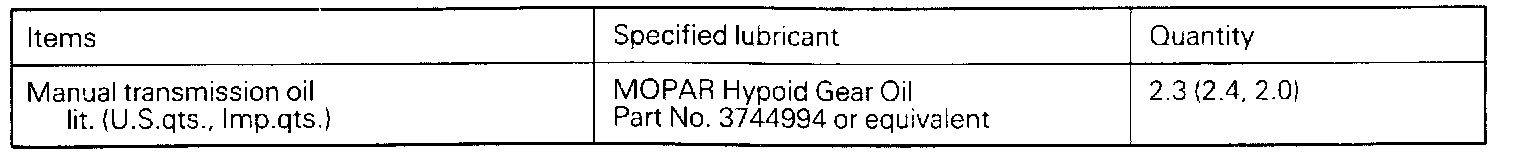

Lubricants:
