Neutral Safety Switch: Testing and Inspection

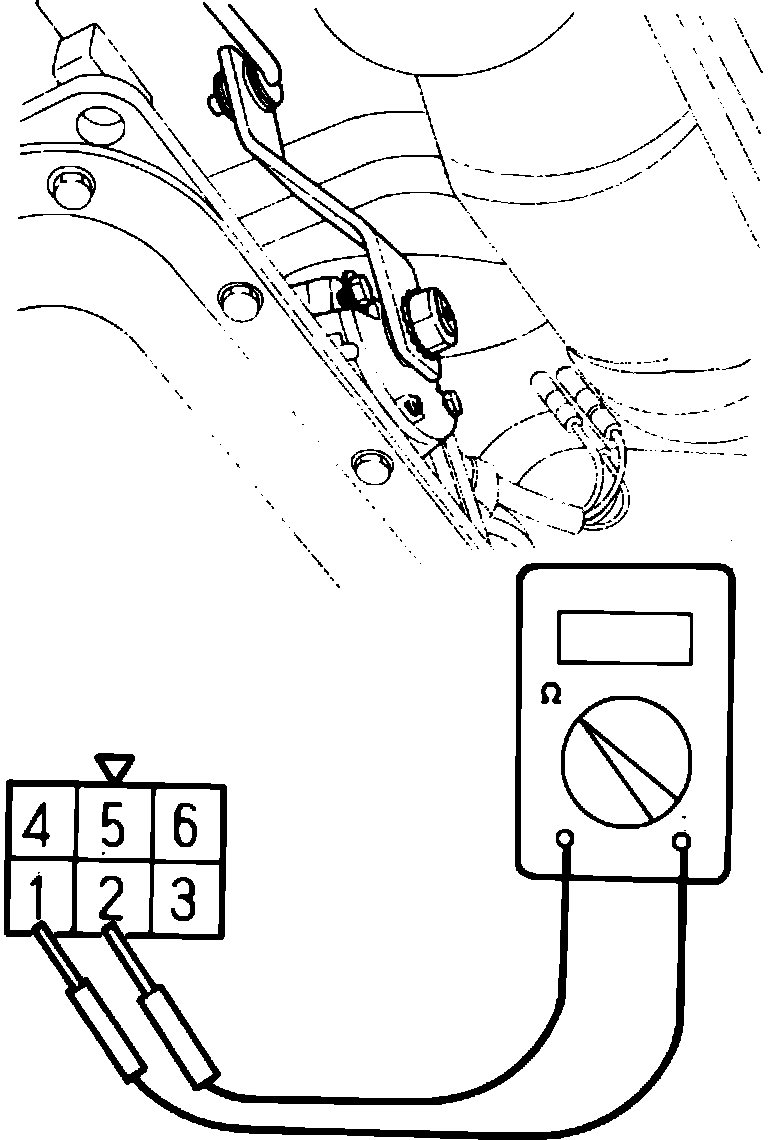

Fig. 37 Inhibitor switch test. 1987:

1. Disconnect inhibitor switch connector.
2. Operate selector lever and check continuity between terminals 1 and 2 of inhibitor switch side connector on 1987 models.
3. Continuity should exist with selector lever in P and N position, but should not exist with selector lever in R position.
