Home >> Chrysler >> 1987 >> Conquest L4-2555cc 2.6L Turbo VIN H FI >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Emission System Vacuum Diagrams >> W/O Intercooler

W/O Intercooler

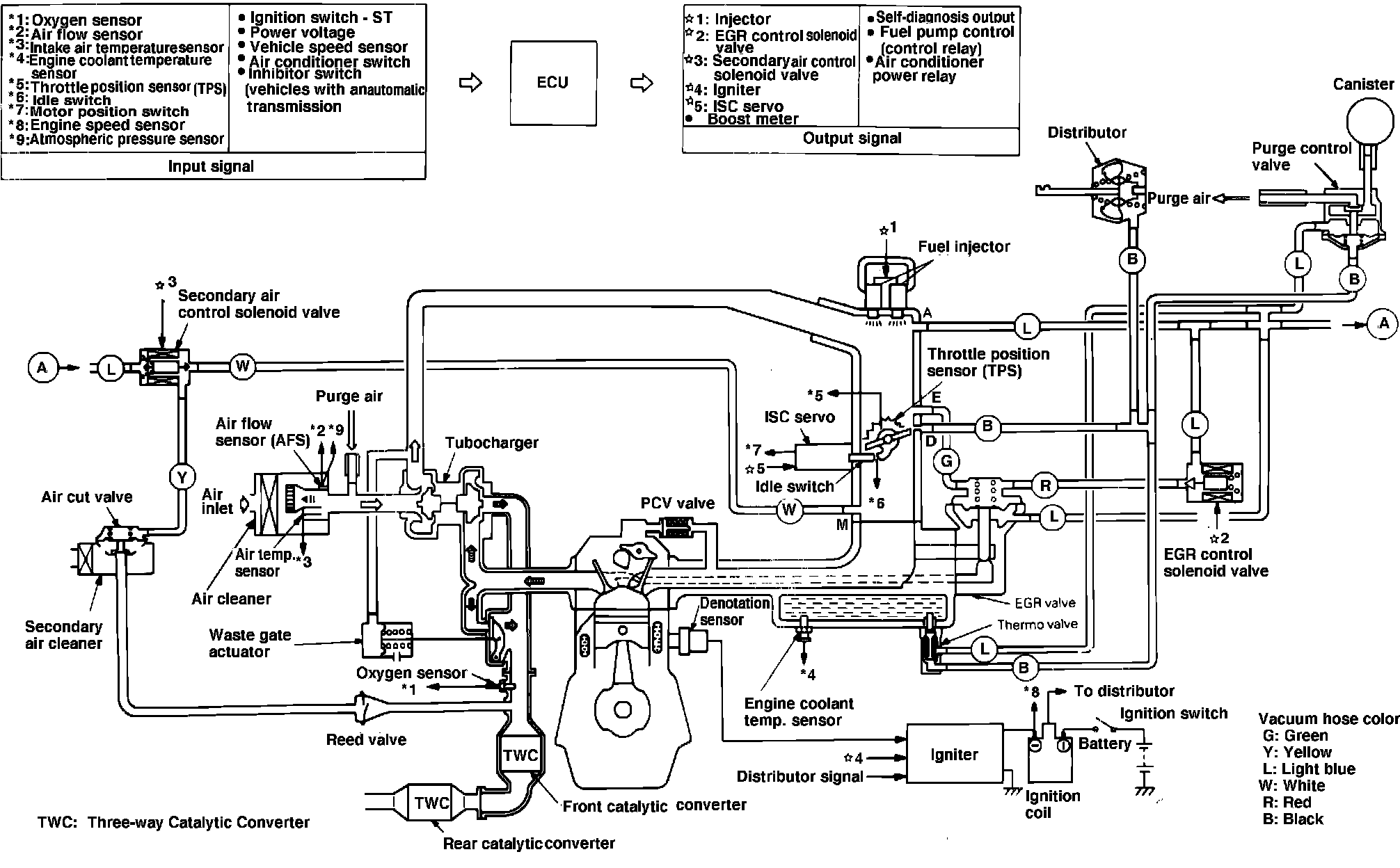

Emission control system vacuum hose routing. 1987-88 Conquest w/o intercooler:
