Home >> Chrysler >> 1987 >> Conquest L4-2555cc 2.6L Turbo VIN H FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems >> System Diagram

System Diagram

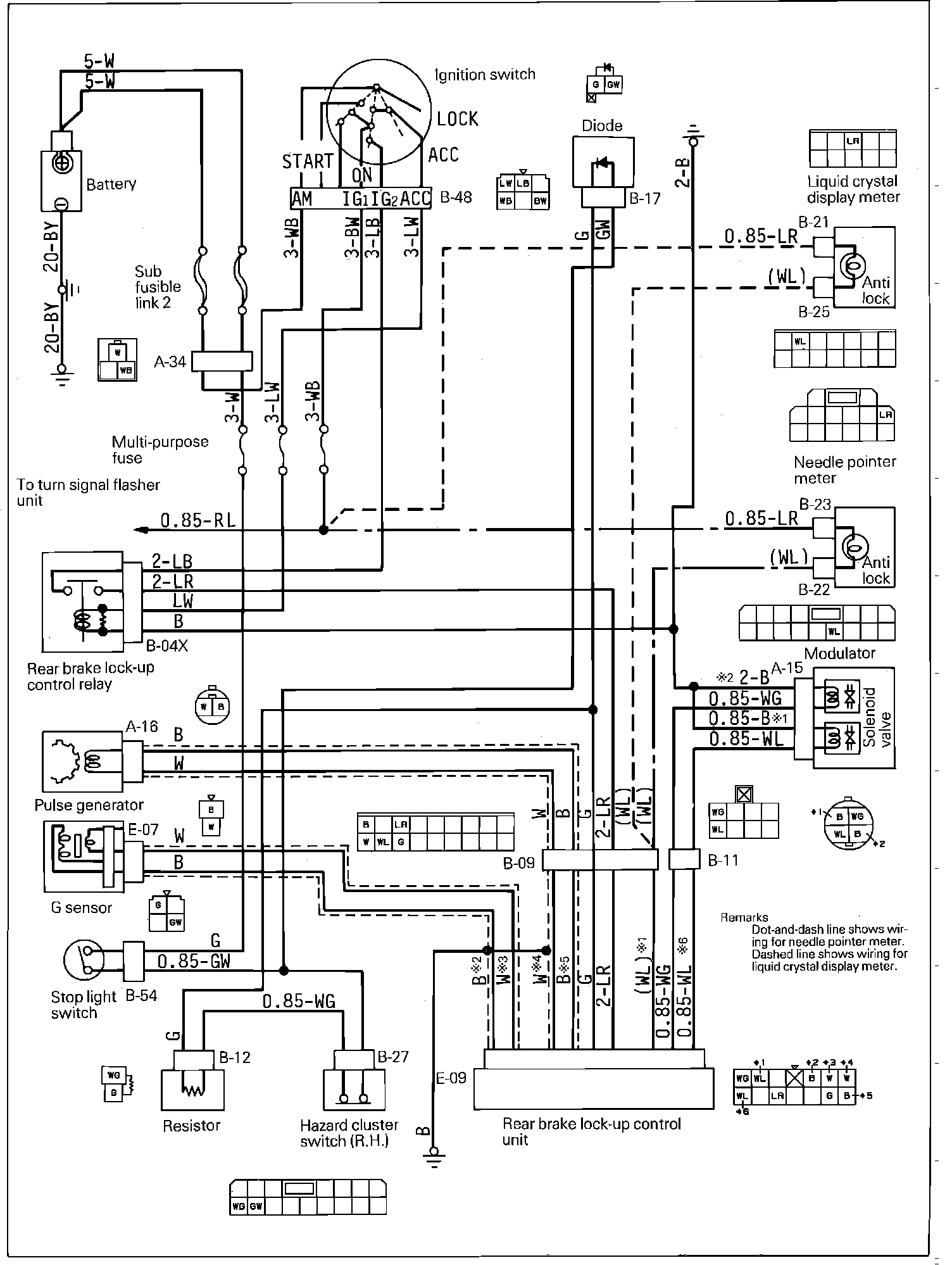

Rear Anti-Lock Brake Wiring Circuit:
