Logic Module Black Connector

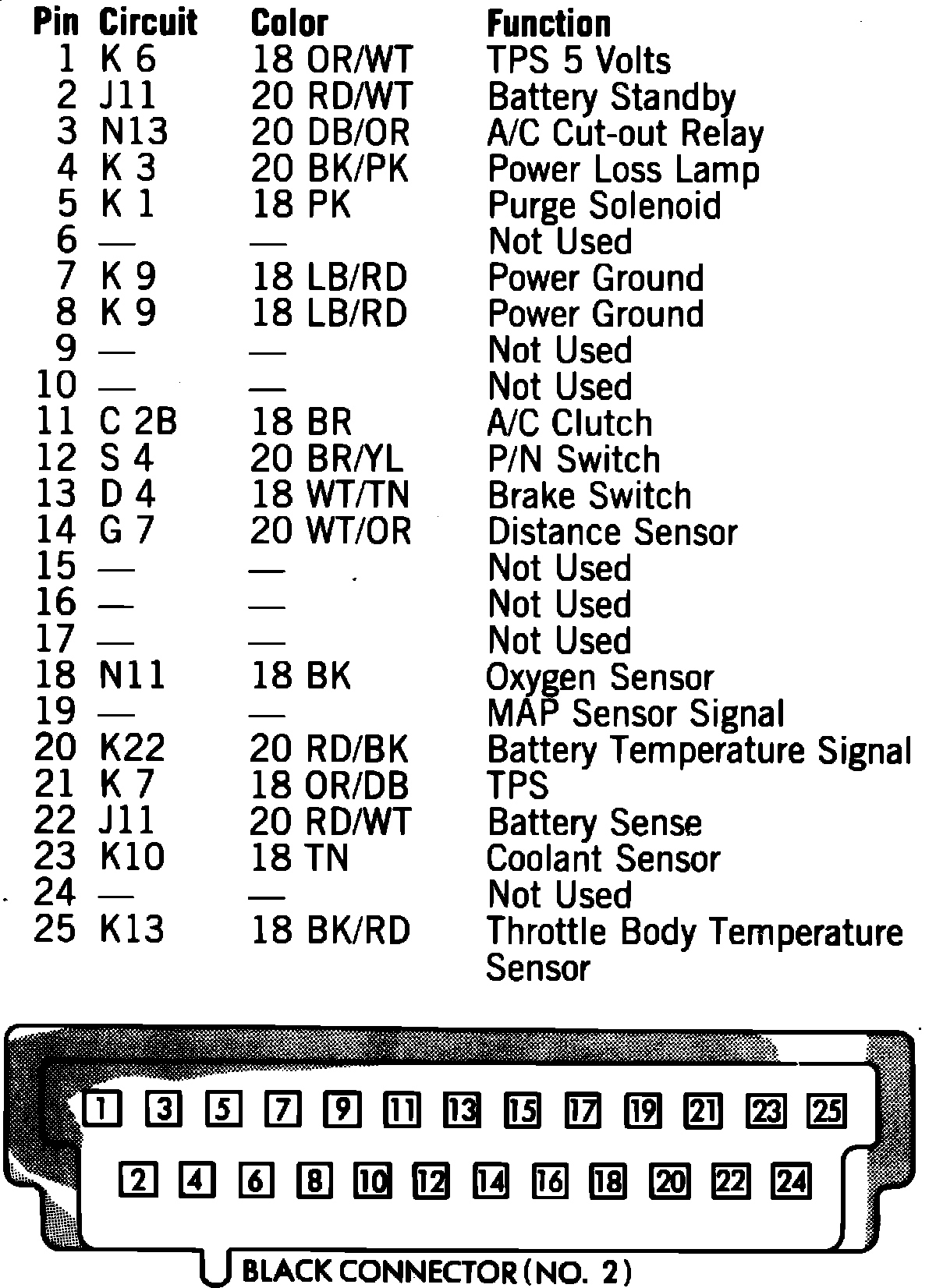

Fig. 9 Logic module black connector terminal identification. 1986 models:
