Logic Module White Connector

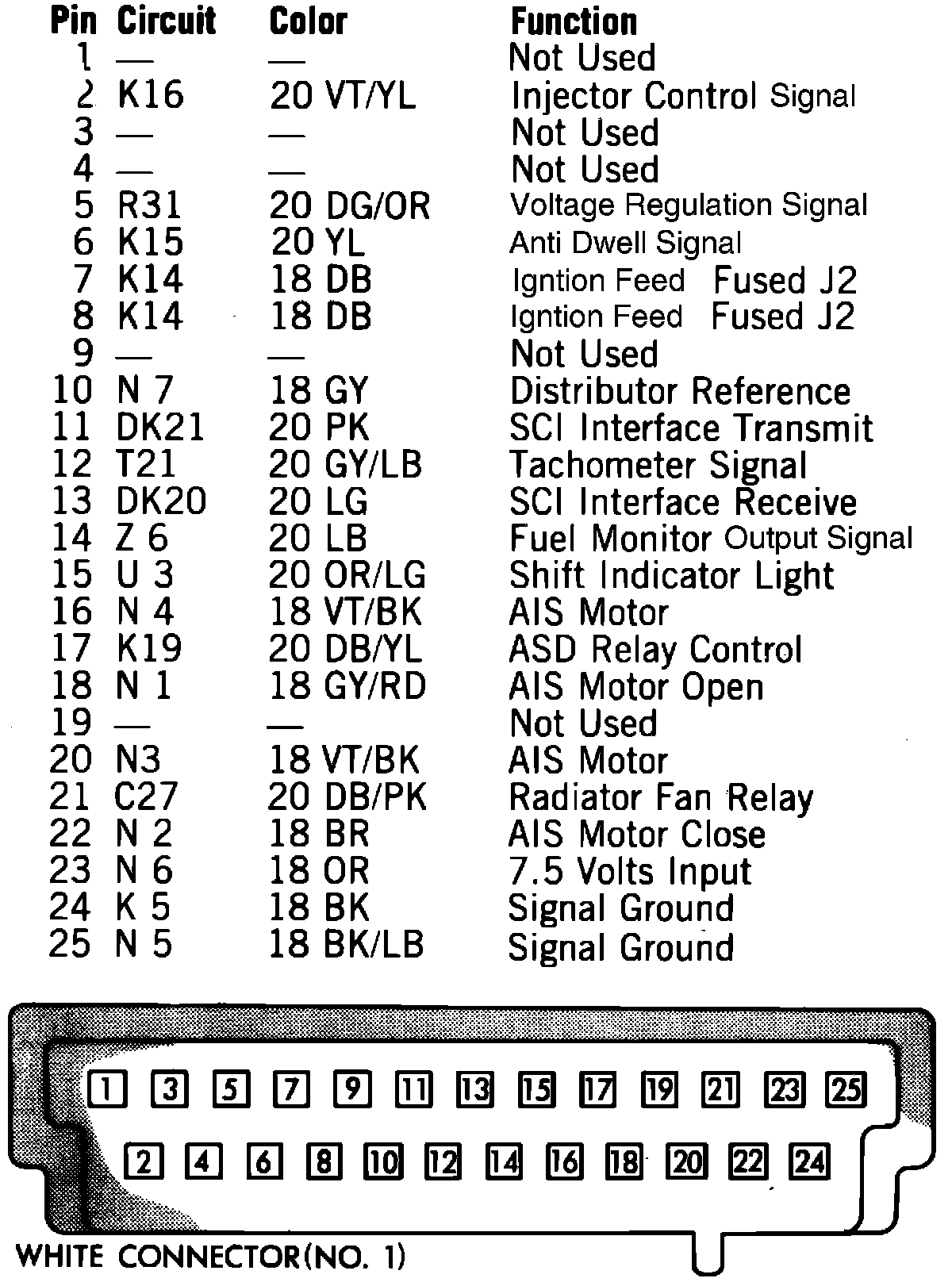

Fig. 7 Logic module white connector terminal identification. 1986 models:
