Wipers Continue Running Without Delay

Intermittent wipe and standard two-speed motors are identical. Refer to TWO SPEED WIPER SYSTEM in this section for diagnosis of system problems not involving the delay function.

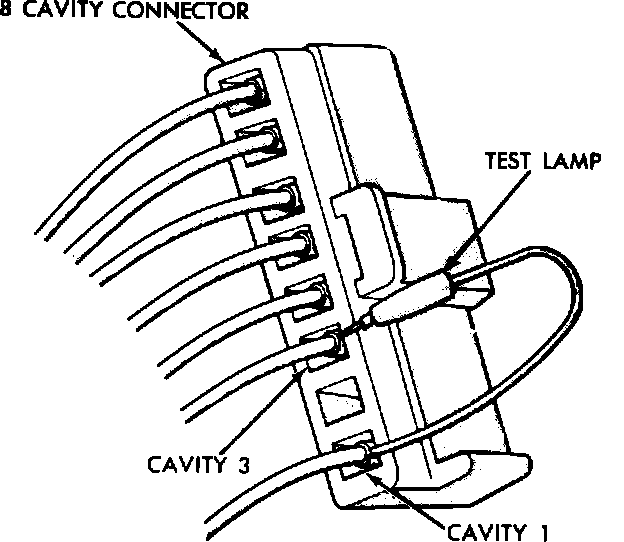

Test Lamp Between Cavities 1 And 3:

1. Verify that motor will park when switch is "OFF." If not, refer to TWO SPEED WIPER SYSTEM in this section and make necessary repairs before proceeding.
2. Place switch in "Low" position.
3. Disconnect 8 cavity connector from intermittent wipe control unit and inspect contacts for damage.
4. Connect test lamp between cavities "1" and "3." Once every cycle the lamp should light.
5. If there is periodic flashing, the control unit is faulty and should be replaced.

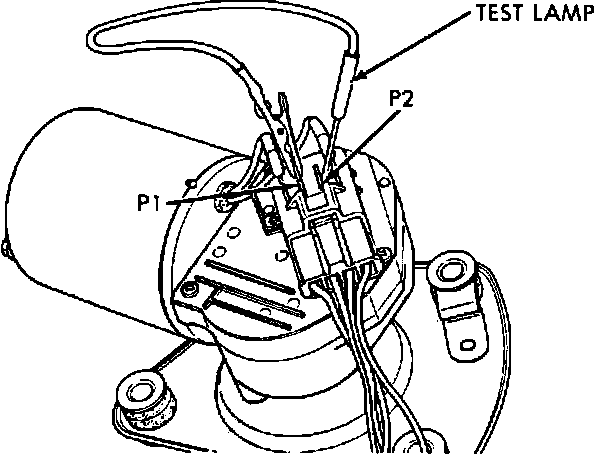

Test Lamp Between Terminals "P1" And "P2":

6. If not, check for periodic flashing between motor terminals "P1" and "P2." If periodic flashing occurs at the motor, check wiring.
