Models K/P, D, C

REMOVAL

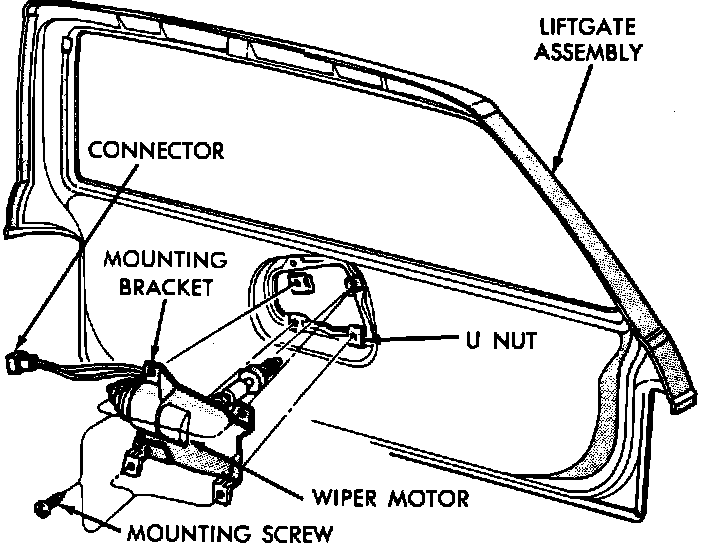

R & R Rear Wiper Motor (K/P, D, C):

1. Remove arm and blade assembly.
2. Open liftgate.
3. Remove trim panel.
4. Disconnect feed wire connector from motor.
5. Remove 4 screws securing motor bracket and remove motor assembly from liftgate.

INSTALLATION

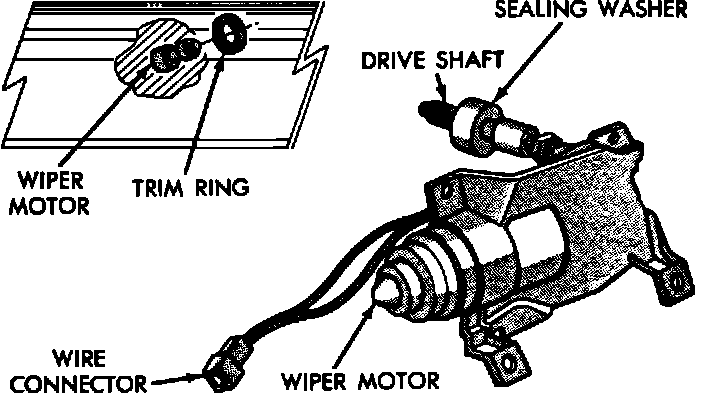

Trim Ring And Sealing Washer (K/P, D, C):

1. Install flat steel washer over drive shaft.
2. Install new sealing washer over drive shaft.
3. Position motor in liftgate and secure with 4 screws.
4. Connect feed wires to motor and install trim panel.
5. Install and adjust arm and blade assembly.
