Models G/C, V

REMOVAL

Liftgate Wiper Motor (G/C, V):

1. Remove arm and blade assembly.
2. Open liftgate.
3. Remove trim panel.
4. Disconnect feed wire from motor.

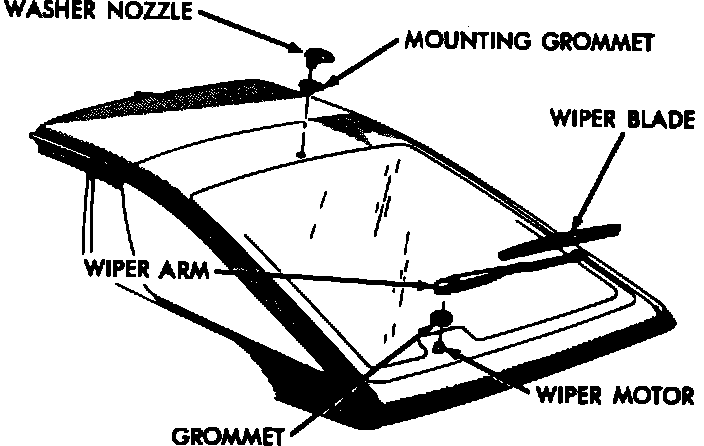

Liftgate Wiper Grommet (G/C, V):

5. Remove grommet from liftgate glass.

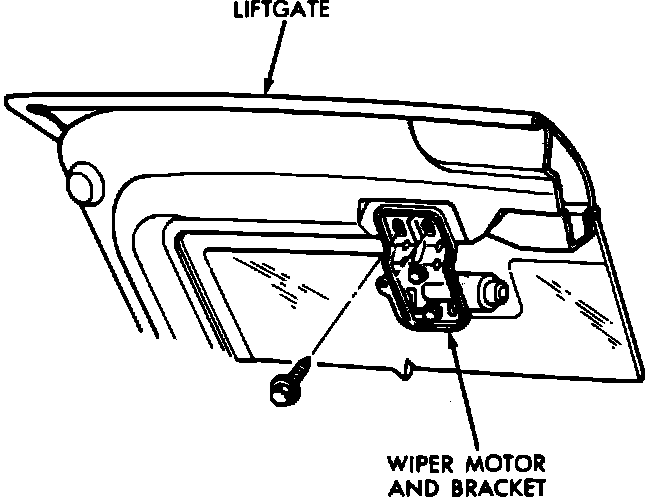

6. Remove two screws securing bracket to liftgate and remove motor.

INSTALLATION

1. Install new grommet in liftgate glass.
2. Position motor on liftgate and secure with two screws.
3. Connect feed wires to motor and install trim panel.
4. Install and adjust arm and blade assembly.
