Chrysler
>>
1986
>>
Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Diagrams
>>
Electrical Diagrams
>>
Wiring Diagrams
>>
Liftgate Wiper & Washer System
Liftgate Wiper & Washer System

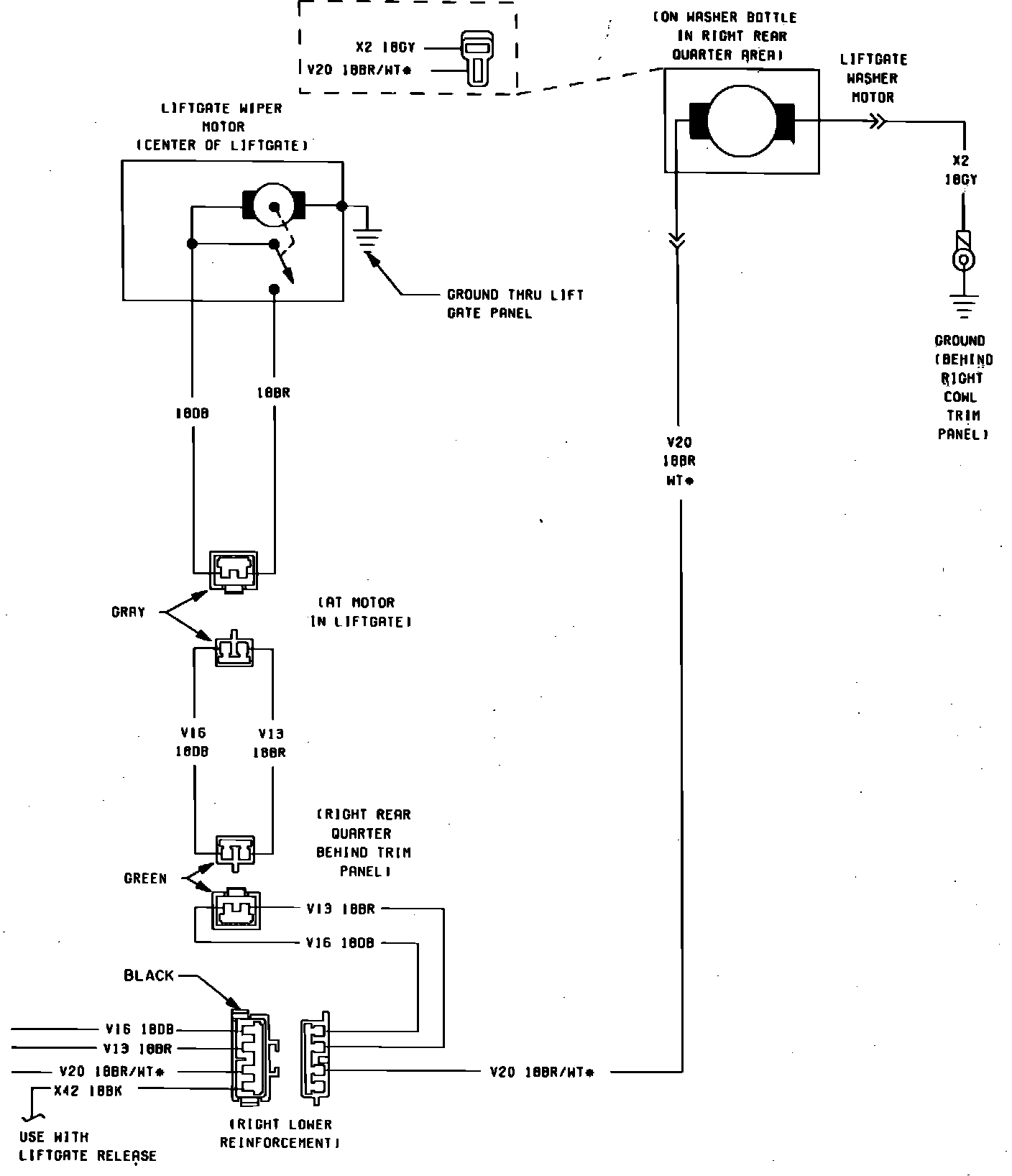

Fig. 47 Liftgate & Washer System Wiring Circuit (Part 1 of 2):

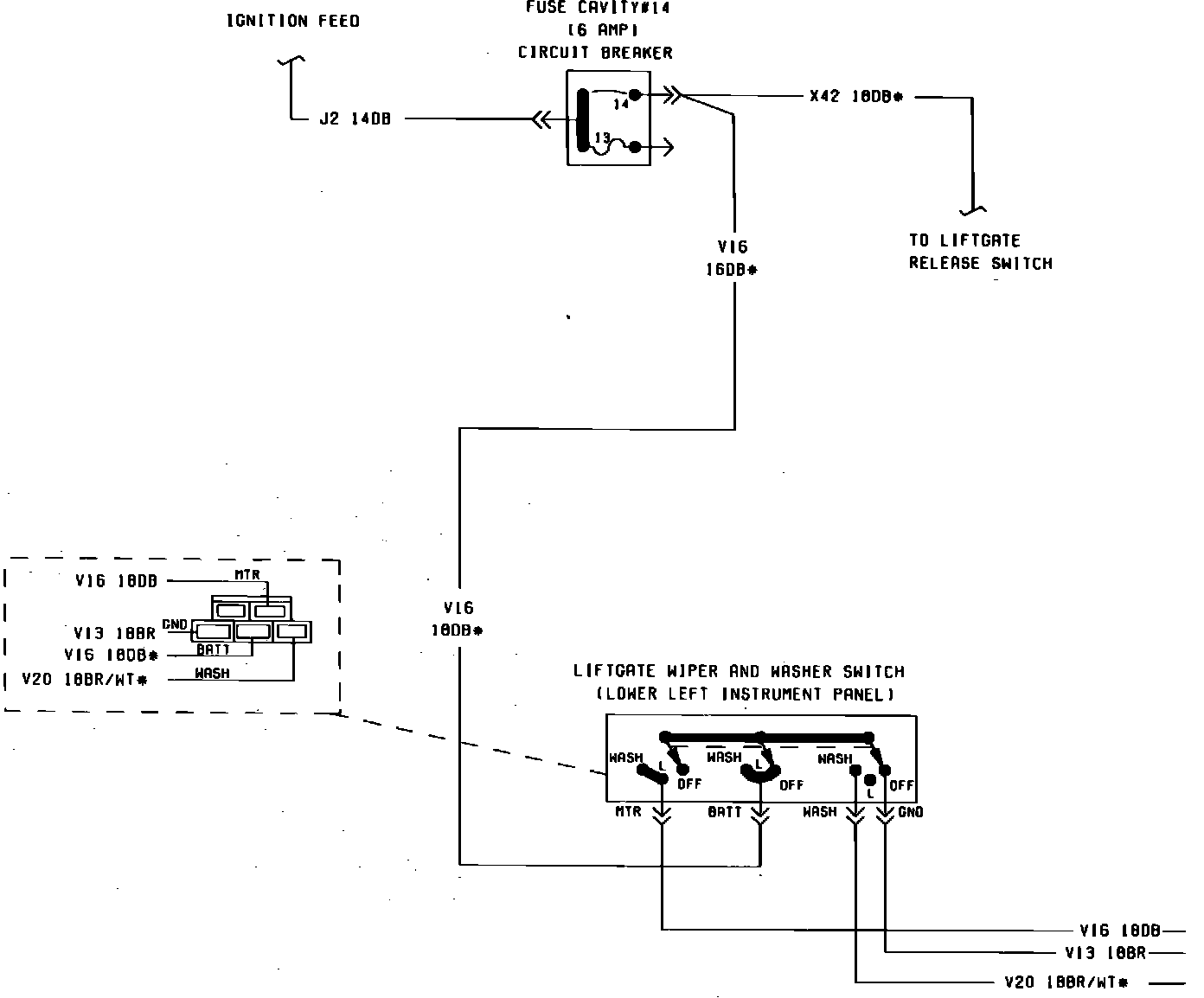

Fig. 47 Liftgate & Washer System Wiring Circuit (Part 2 of 2):
