4 Door

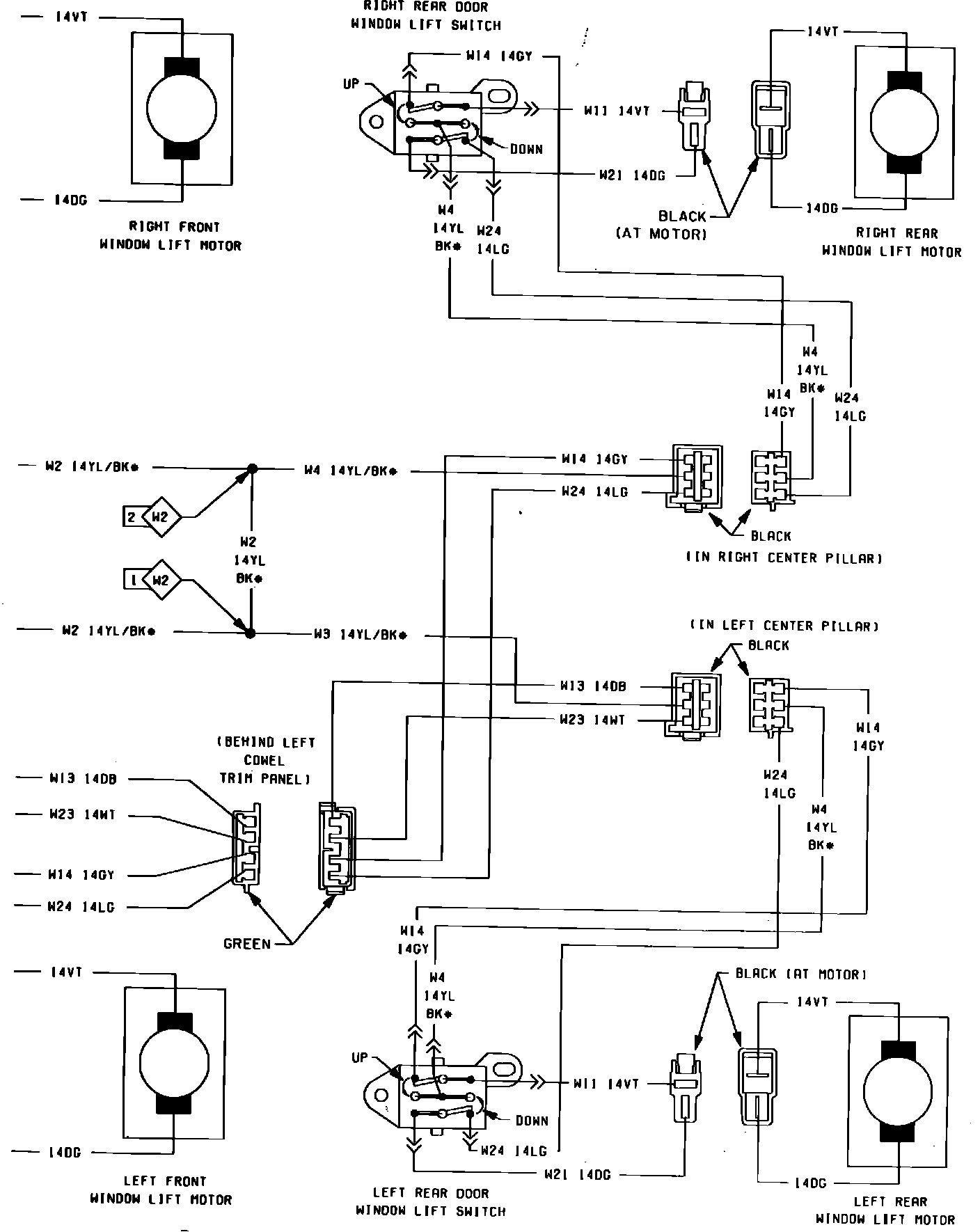

Fig. 61 Power Window System 4 Door (Part 1 of 2). Caravelle, New Yorker, Town & Country & 600:

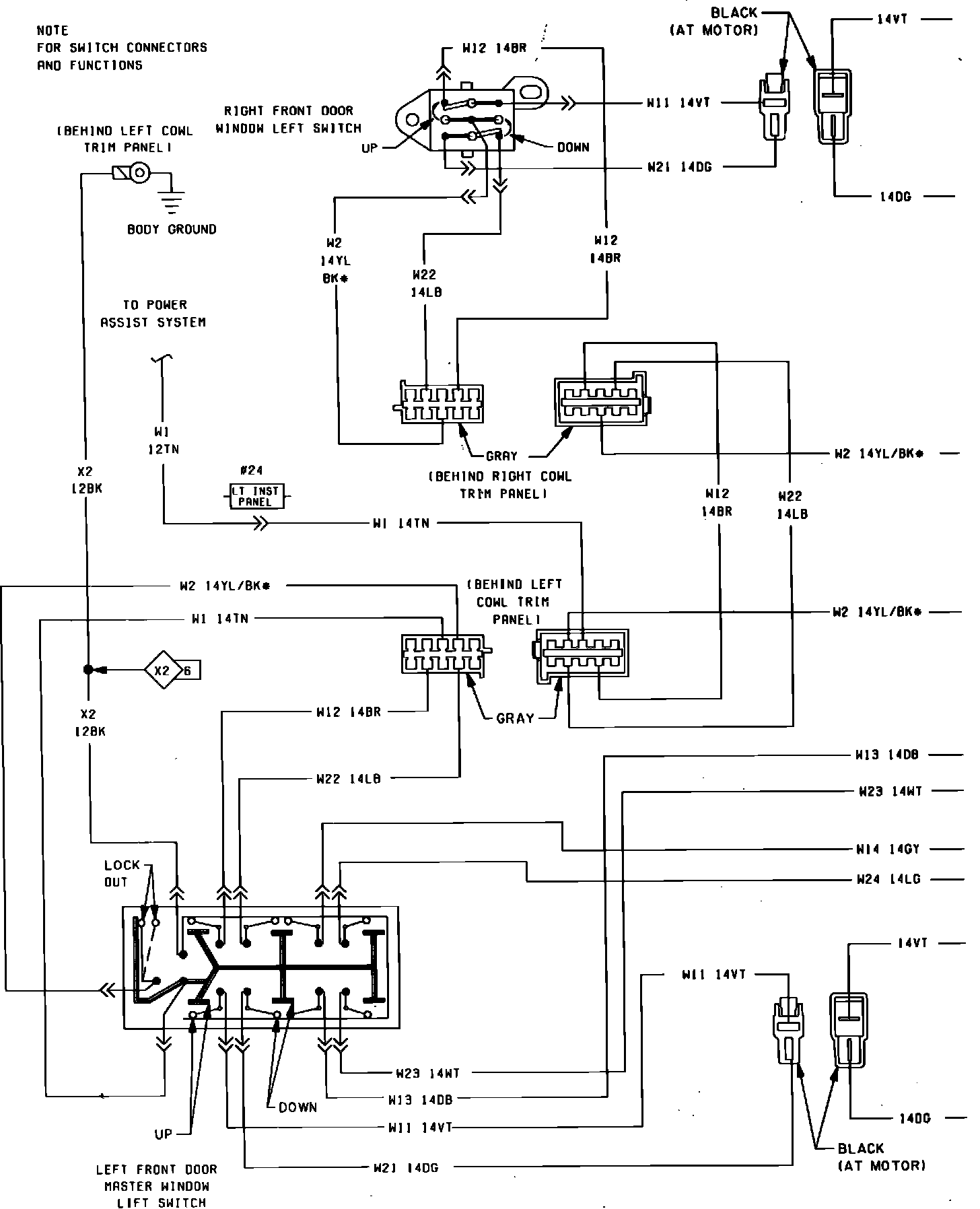

Fig. 61 Power Window System 4 Door (Part 2 of 2). Caravelle, New Yorker, Town & Country & 600:
