Home >> Chrysler >> 1986 >> Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Windows and Glass >> Windows >> Diagrams >> Electrical Diagrams >> Power Window Circuit Diagrams >> 2 Door

2 Door

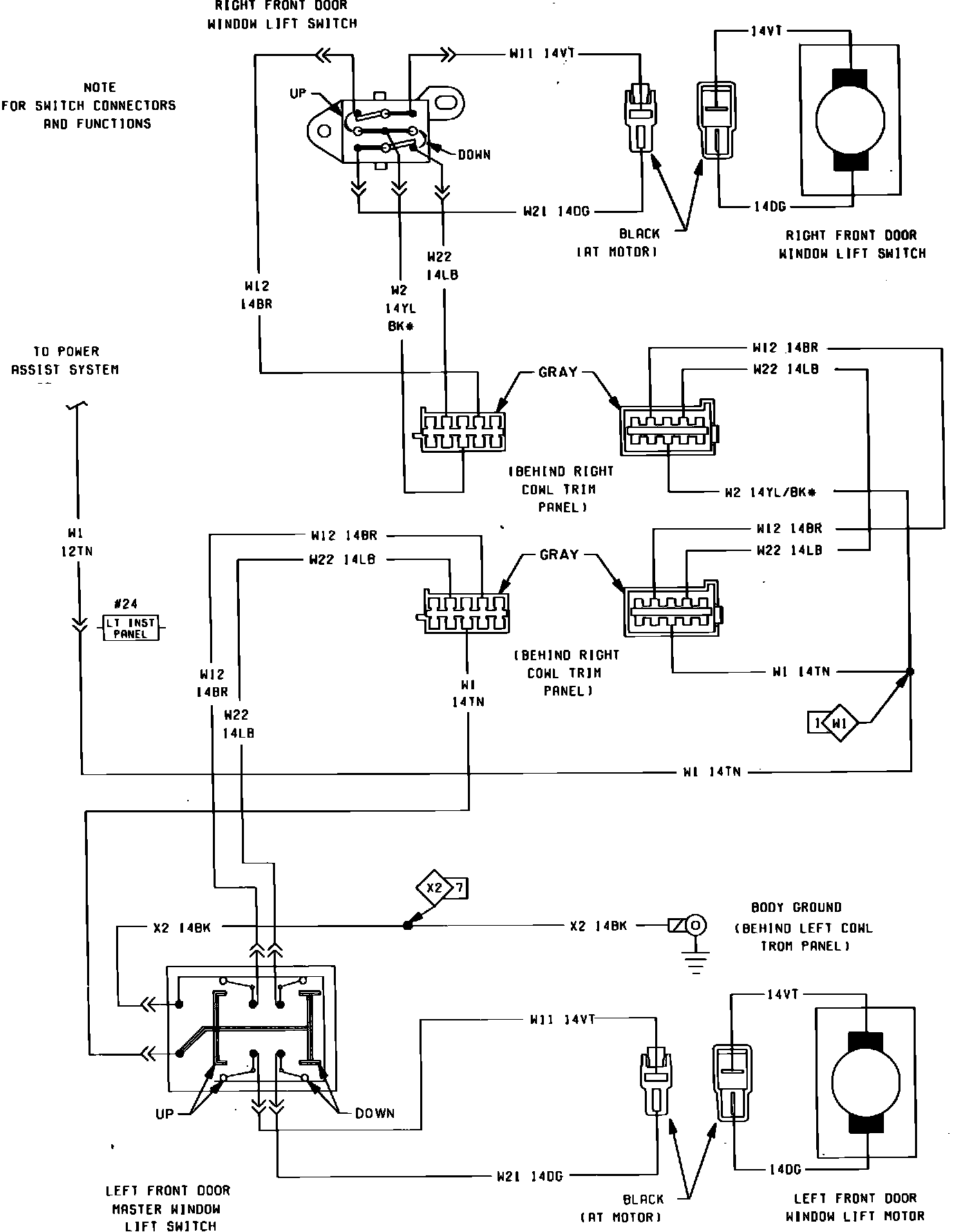

Fig. 59 Power Window System Wiring Circuit. LeBaron & 600 W/Hardtop:
