Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI
>>
Repair and Diagnosis
>>
Steering and Suspension
>>
Suspension
>>
Suspension Control ( Automatic - Electronic )
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>

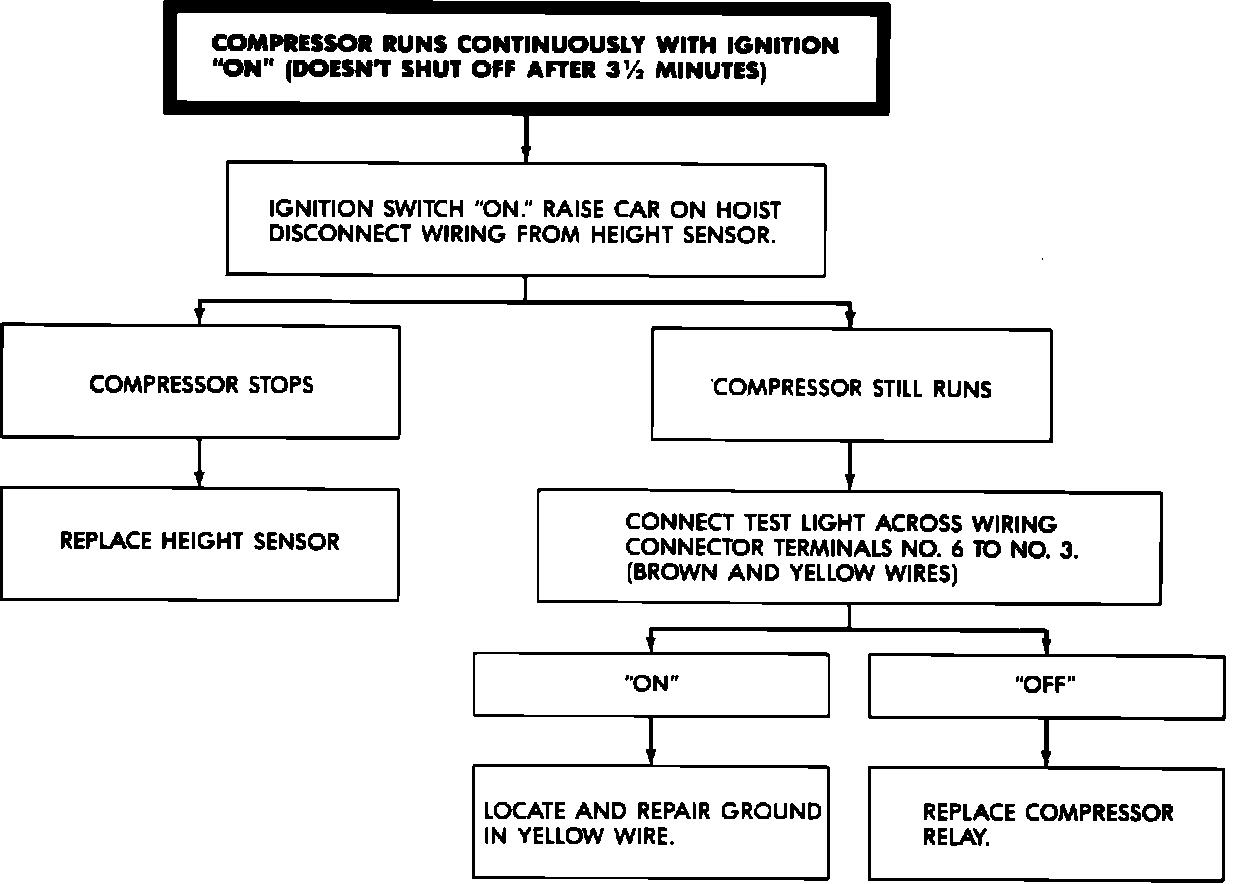

Chart 4 - Compressor Runs Continuously W/Ign. on
Chart 4 - Compressor Runs Continuously W/Ign. on
Chart 4:
