Home >> Chrysler >> 1986 >> Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Chart 3 - Car Stays High With Load Removed

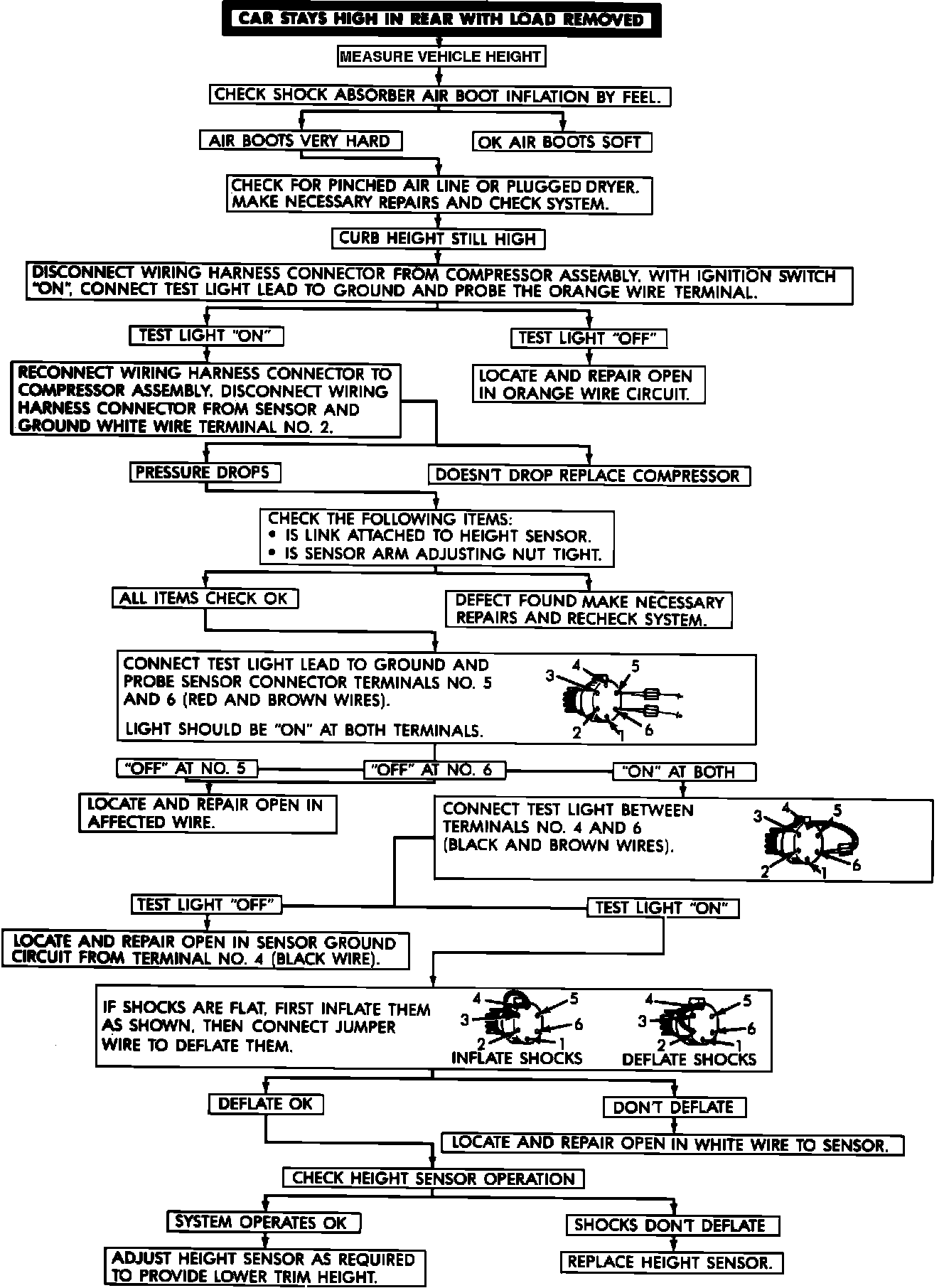

Chart 3 - Car Stays High With Load Removed

Chart 3:
