Compressor/Pump: Description and Operation

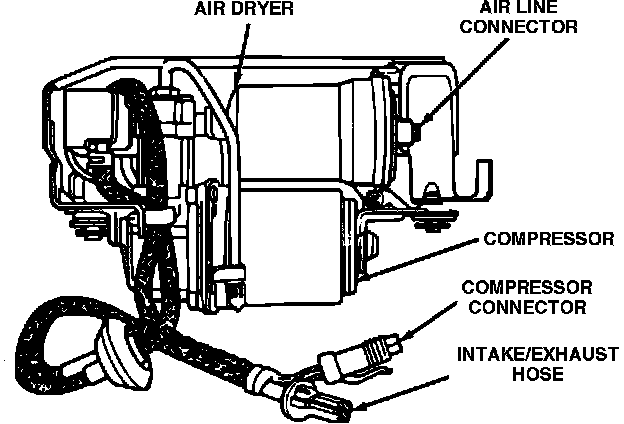

Fig. 1 Compressor Assembly:

The Air Compressor assembly is located under rear of vehicle. It supplies between 120-200 psi to the rear shock absorbers. An exhaust valve is located in the compressor head assembly. To prevent excessive cycling between the compressor and exhaust solenoid during a normal drive, there is a 13-27 second delay programed into the microprocessor.
