Air Line: Service and Repair

Air Hose Fittings:

1. Disconnect battery negative terminal.
2. Raise vehicle.

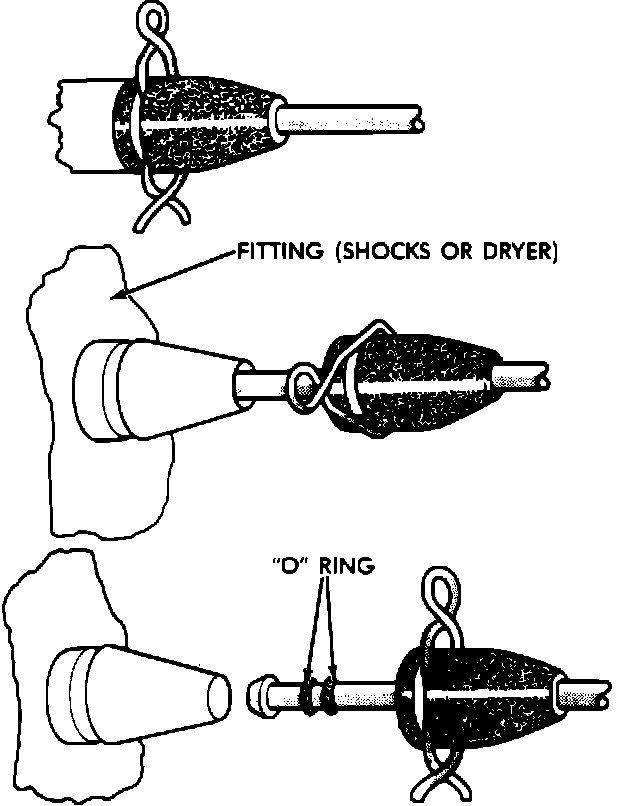

3. Squeeze the lower end of the retainer spring together and carefully pull the male end of the air line from the female connector.
4. Inspect the air line, fitting, and O ring for damage and replace if necessary.
5. Reverse procedure for installation.
