Fusible Link: Application and ID

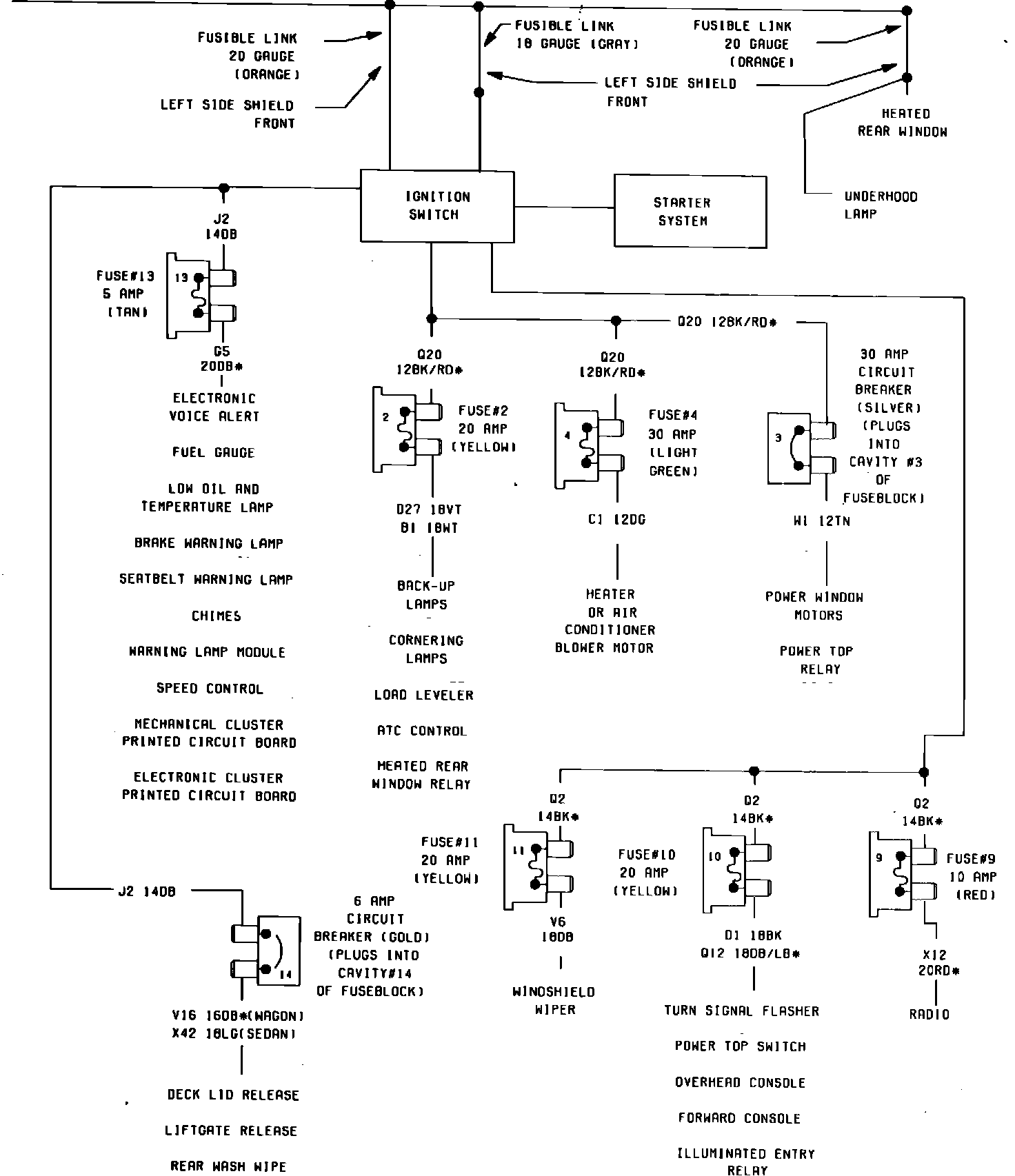

Fig. 33 Fuse Application Chart Wiring Circuit (Part 1 of 2):

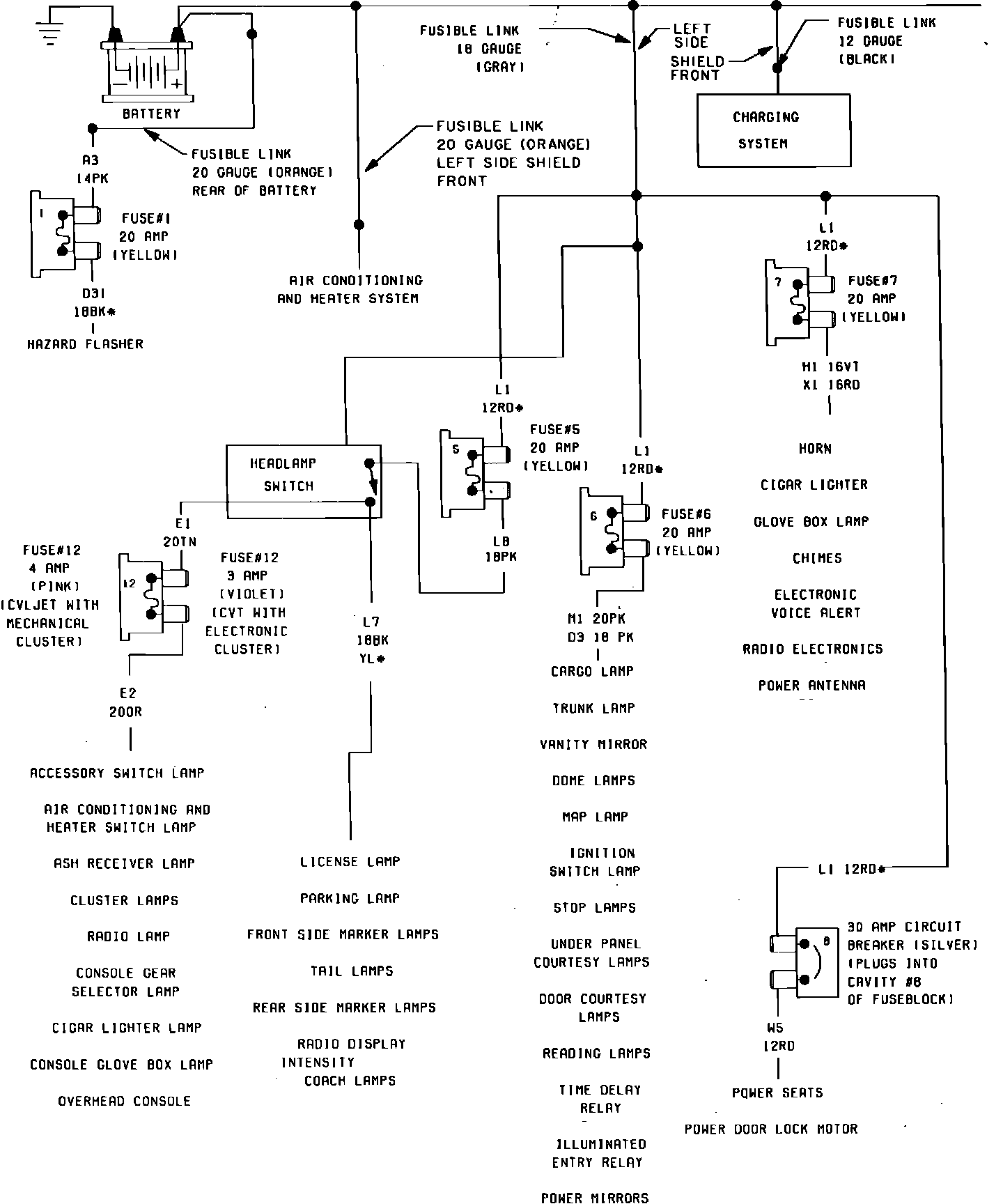

Fig. 33 Fuse Application Chart Wiring Circuit (Part 2 of 2):
