Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Manual Transmission/Transaxle
>>
Clearance and Design Specifications

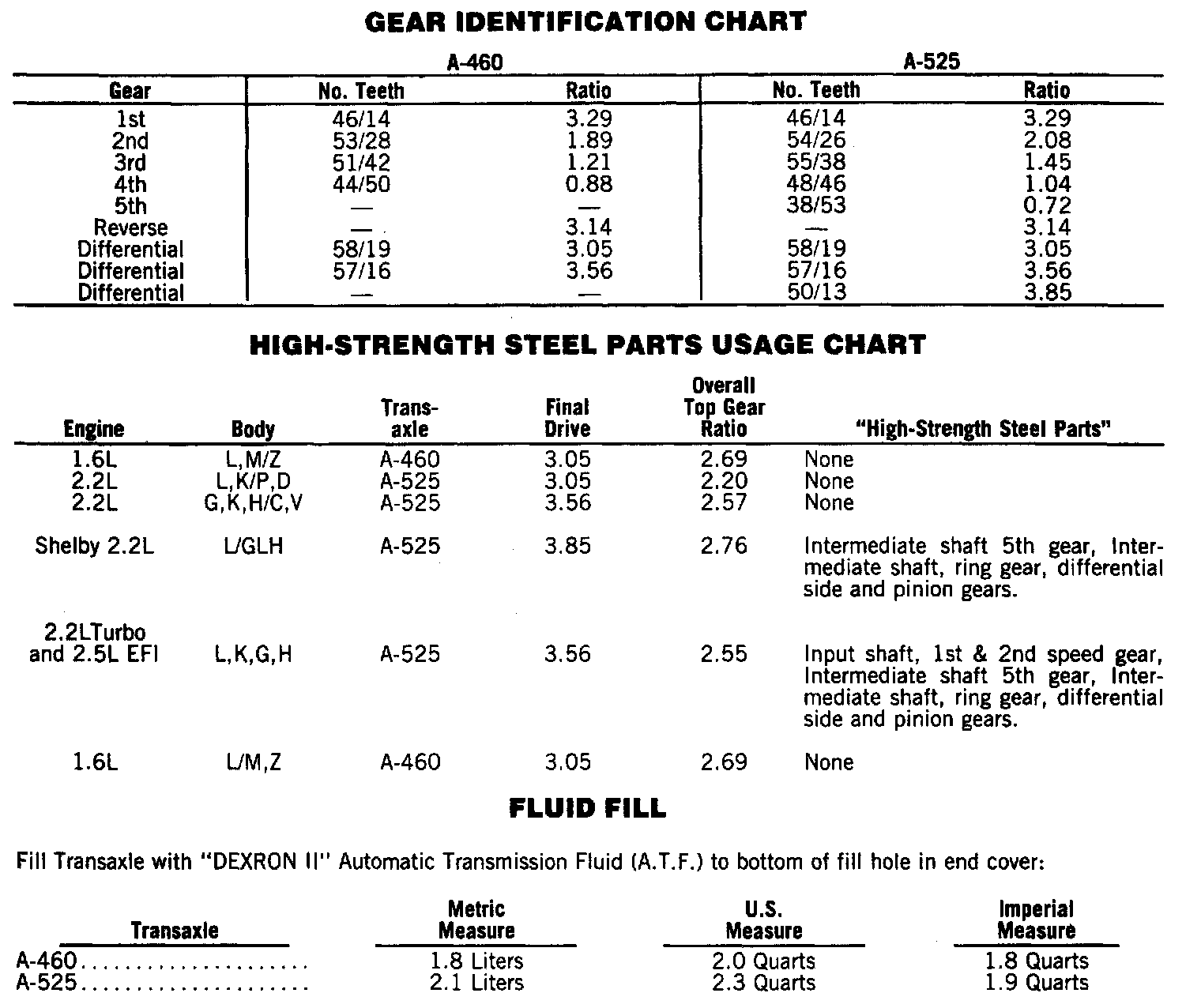

Clearance and Design Specifications

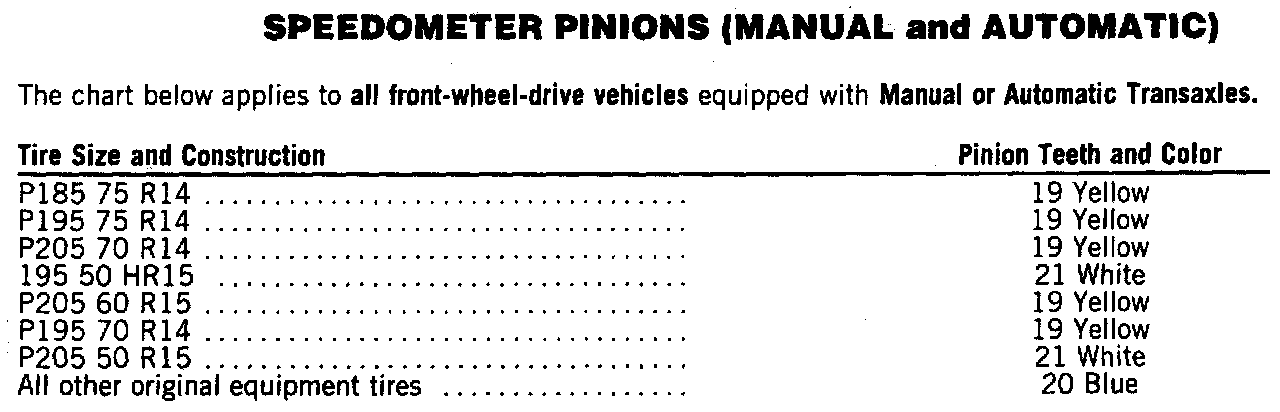

Speedometer Pinion:
General Specifications:
