Home >> Chrysler >> 1986 >> Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Power Door Lock Switch >> Diagrams >> 4 Door

4 Door

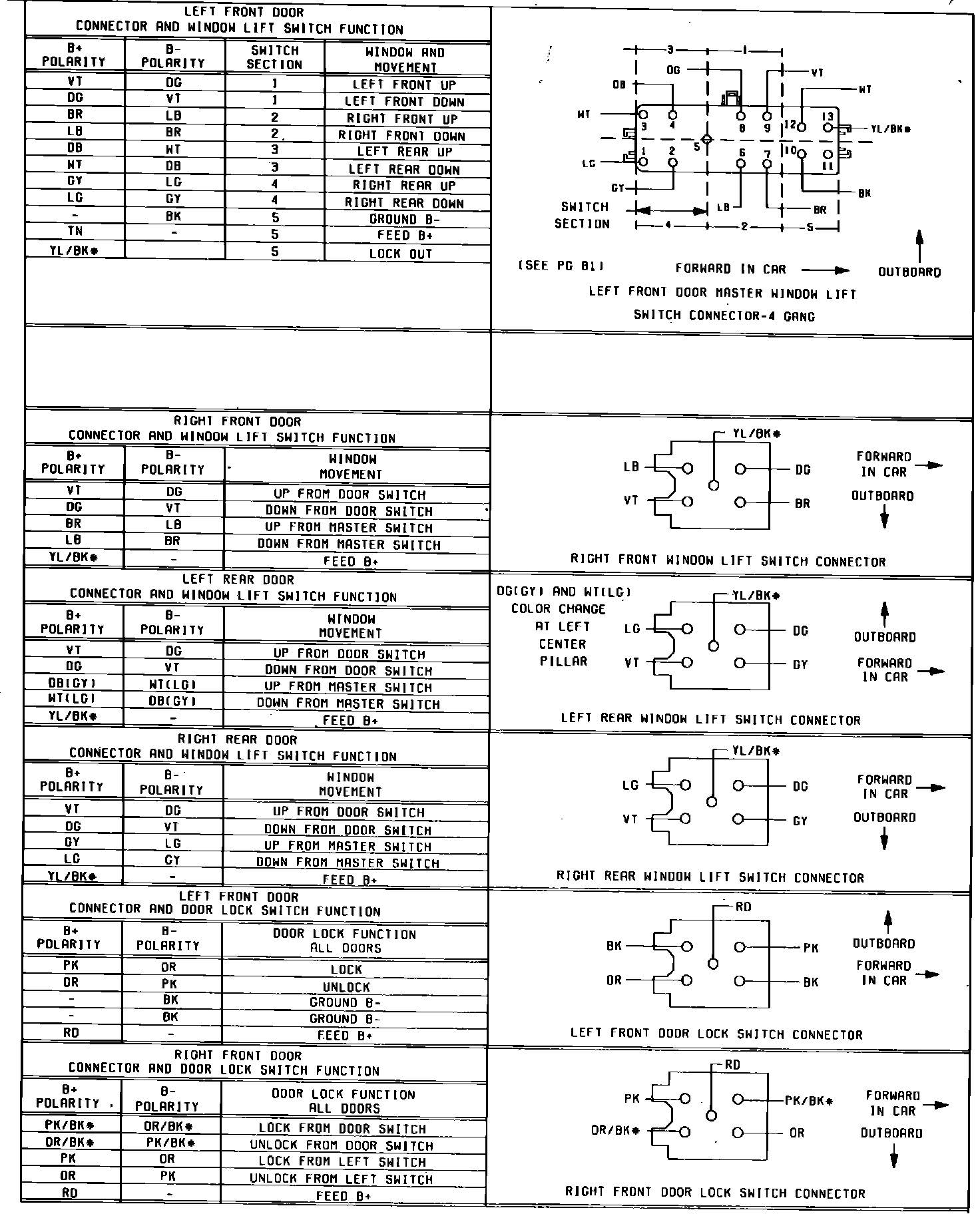

Fig. 16 Power Door Lock & Window Switch Connectors. 4 Door Model:
