Power Module

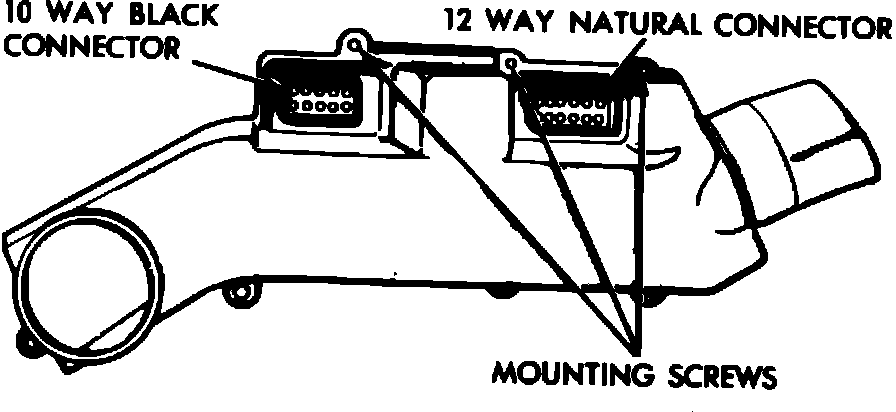

Fig. 9 Power module replacement:

1984-87
1. Remove air cleaner duct from module.
2. Remove battery from vehicle.
3. Remove module attaching screws, Fig. 9.
4. Disconnect electrical connectors from module, then remove module from vehicle.
5. Reverse procedure to install.
