Home >> Chrysler >> 1986 >> Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Instrument Panel >> Fuel Distance/Mileage Module >> Diagrams >> Electrical Diagrams >> Part 2 of 2

Part 2 of 2

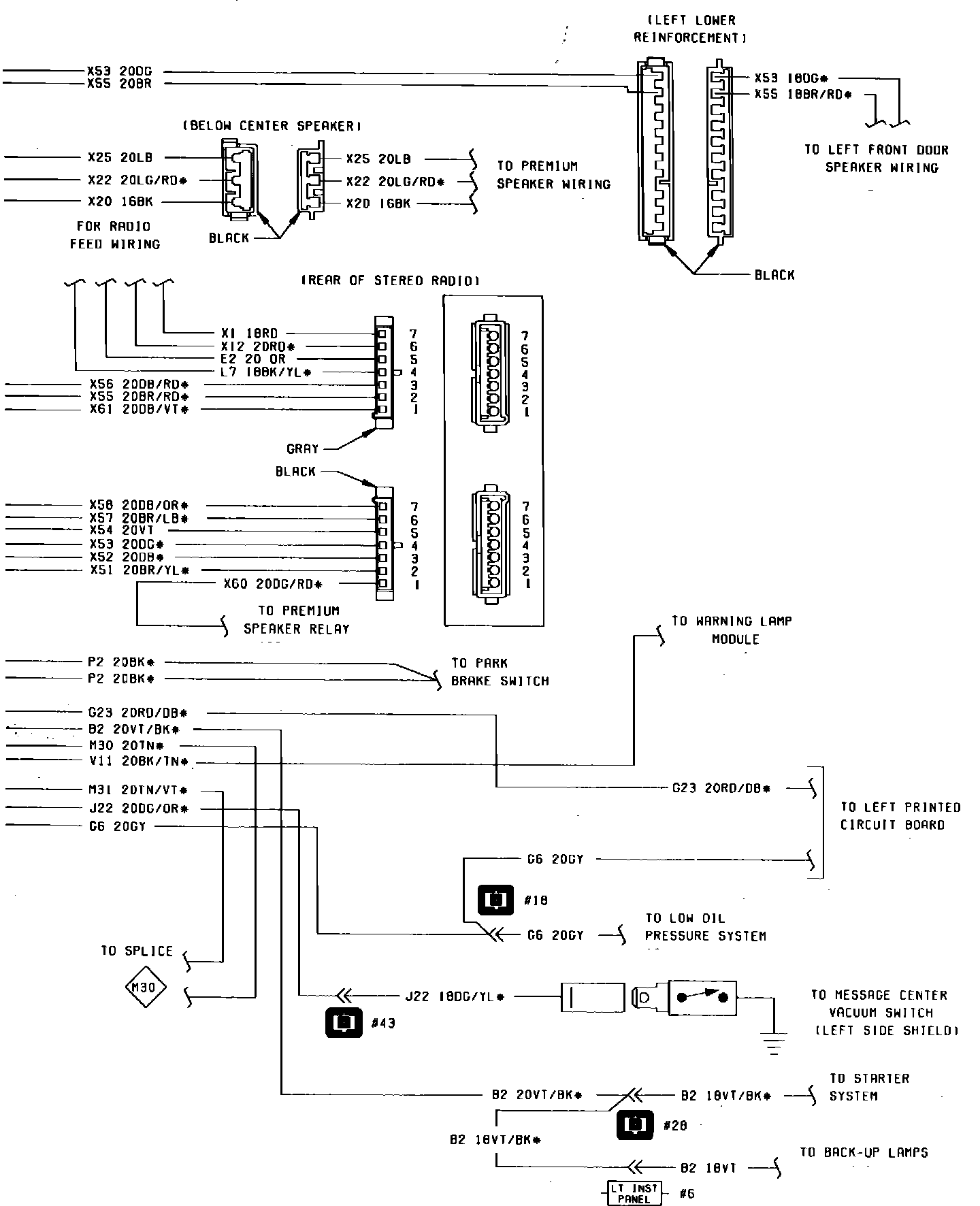

Fig. 30 Electronic Voice Alert Wiring Circuit (Part 2 of 2):
