Electrical Diagrams

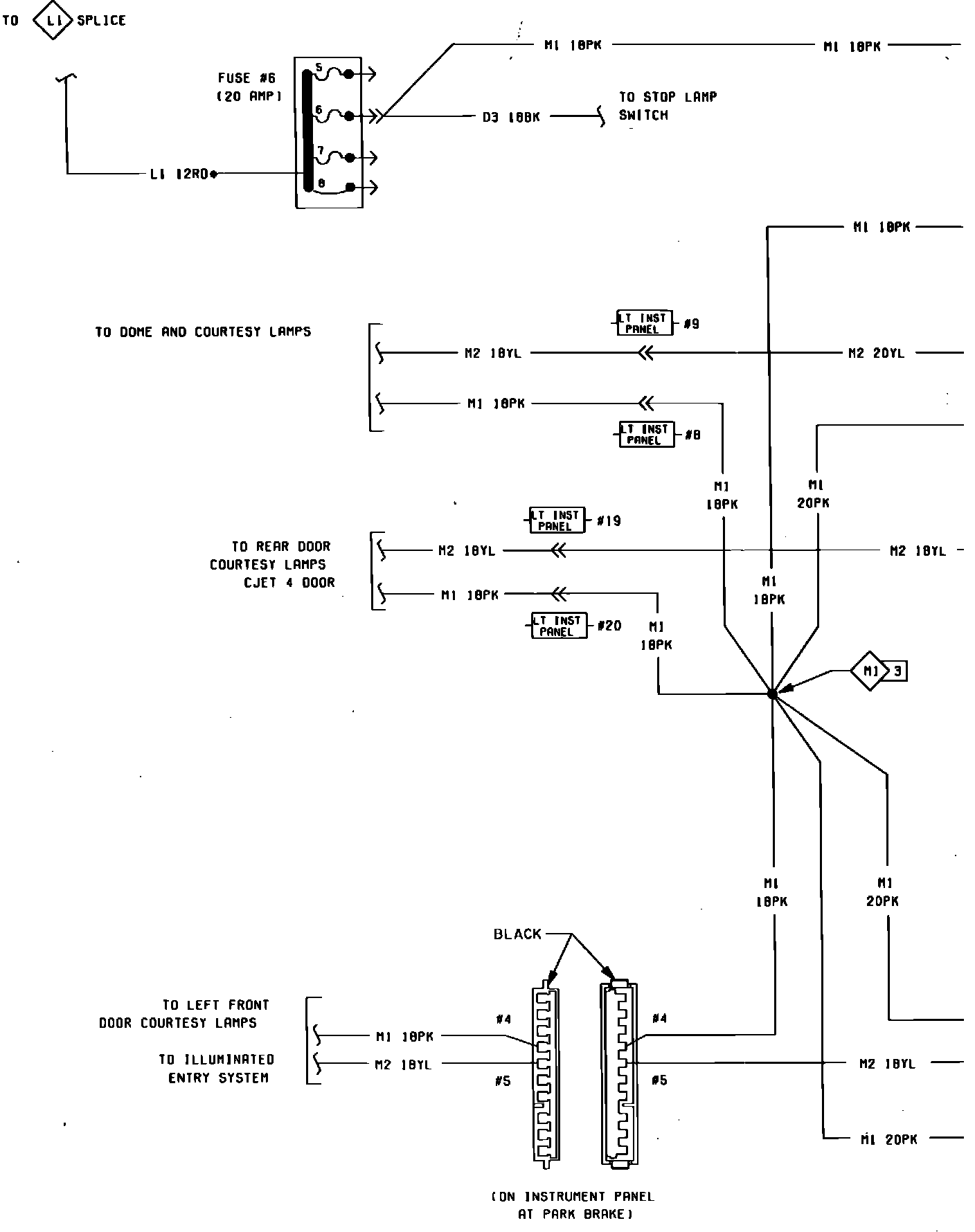

Fig. 74 Time Delay Relay System Wiring Circuit (Part 1 of 2):

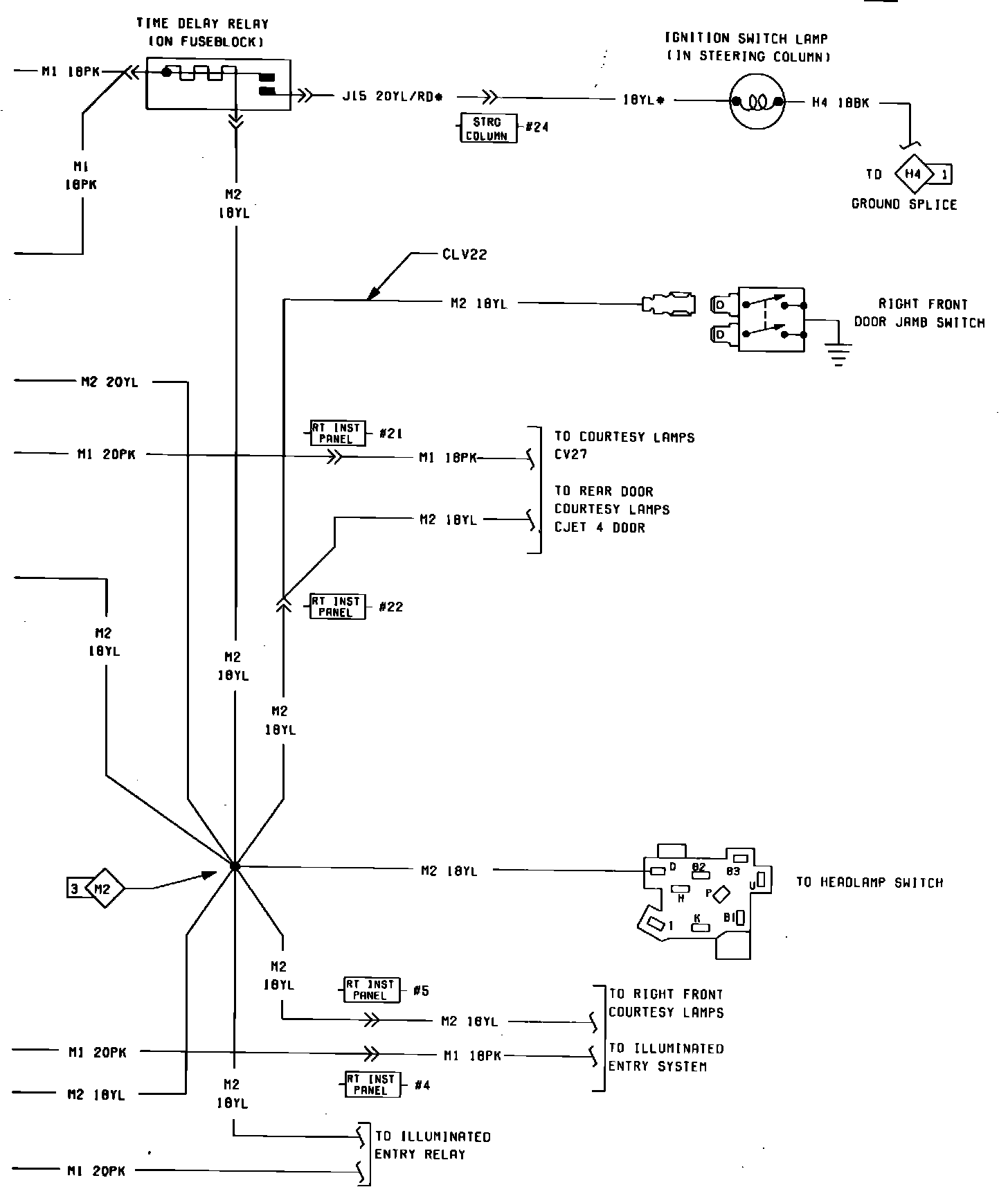

Fig. 74 Time Delay Relay System Wiring Circuit (Part 2 of 2):
