Fuel Injector: Description and Operation

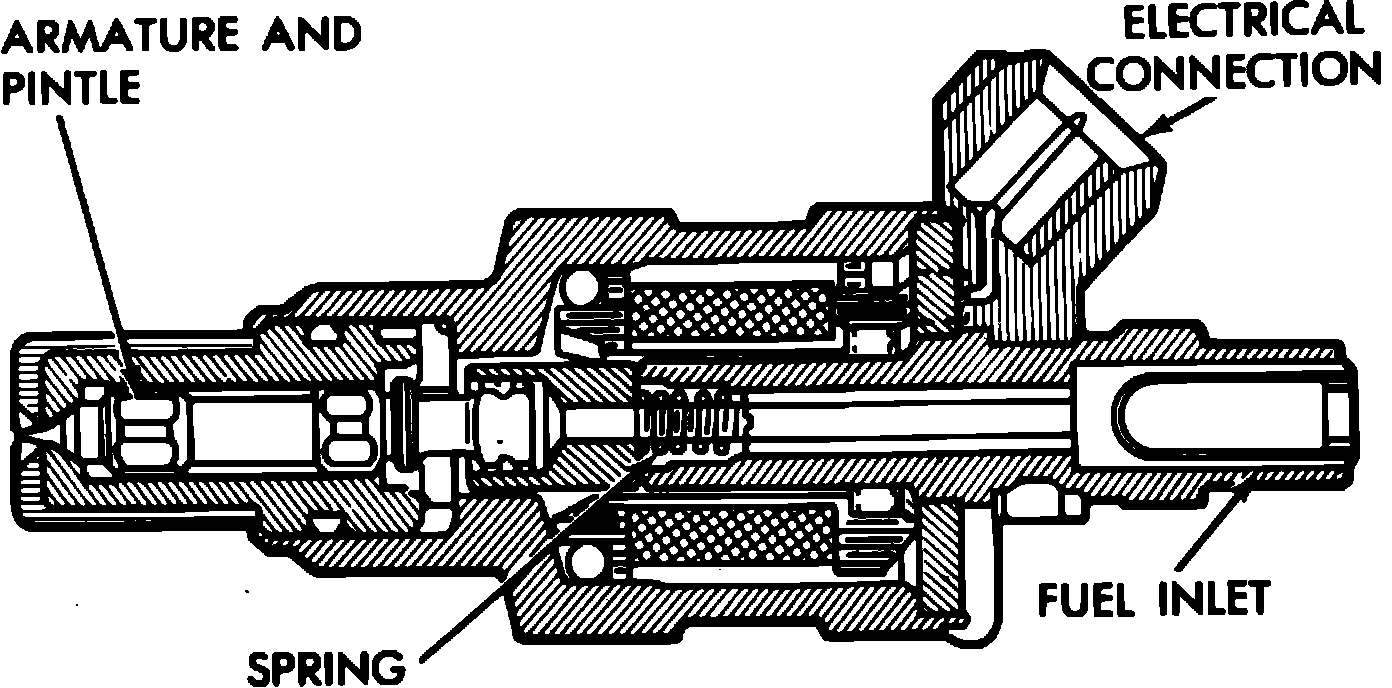

Fig. 4 Typical fuel injector.:

On 1984-87 models, the fuel injector, Fig. 4, is a solenoid operated valve which is energized by the [1][2]power module but controlled by the logic module. On 1988-89 models, the fuel injector is a solenoid operated valve which is driven by the SMEC.
